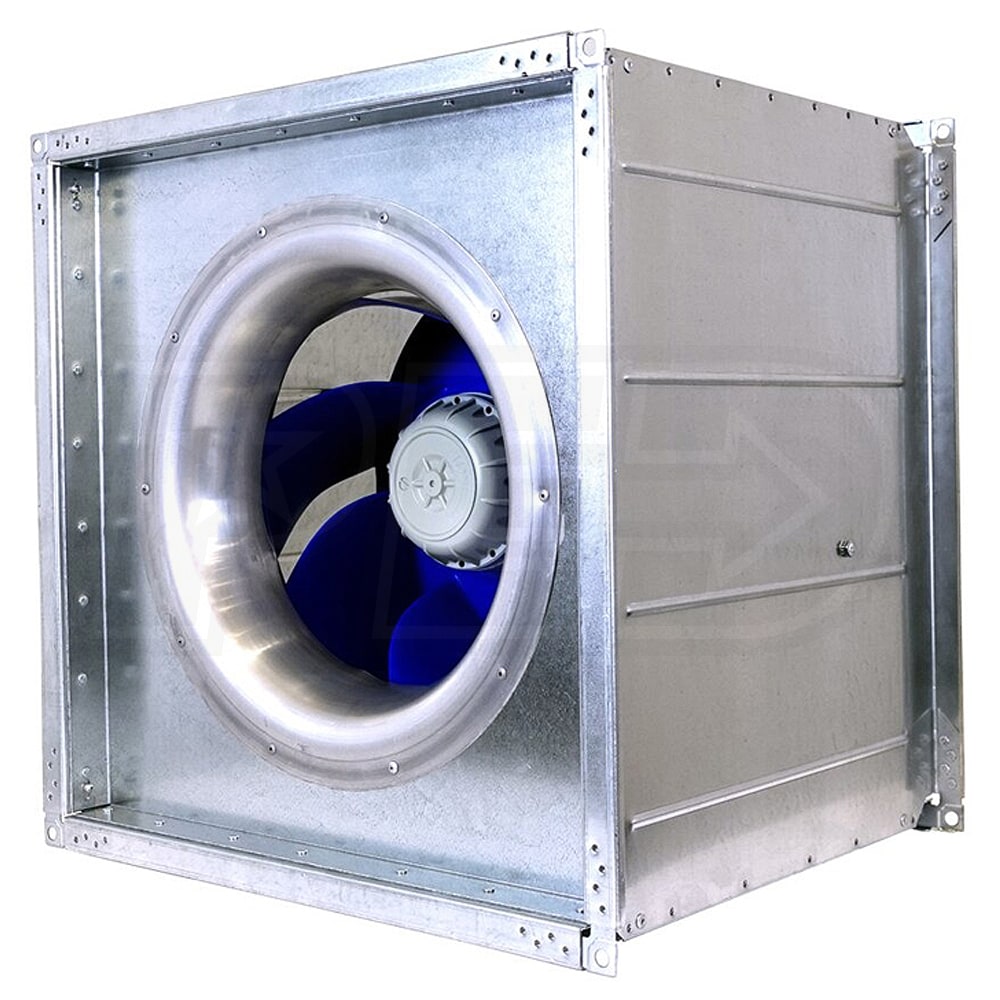

Fantech FSD - 5,223 CFM - Inline Duct Fan - 22" Duct - 115V

Model:

FSD22

Write A Review
$2,027.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$338 / Month
Suggested monthly payments with 6 month financing.
Fantech FSD - 5,223 CFM - Inline Duct Fan - 22
Fantech FSD - 5,223 CFM - Inline Duct Fan - 22" Duct - 115V
Model: FSD22
$2,027.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

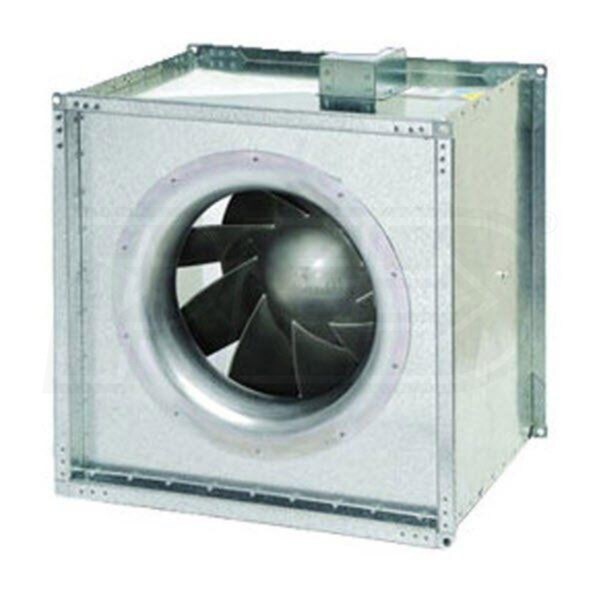

    The Fantech FSD 22 Square Inline Duct Fan is a 5,223 CFM centrifugal supply and exhaust fan designed to provide high airflow with backward curved impellers. It is constructed for 22 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 115 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

Specifications

FSD22
specs product image PID-31196
Overview
Product Category
Fans
UPC
650737132200
General Information
Type
Duct Fan
Product Line
FSD
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
5223 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
21 Sones
Electrical Data
Phase
1
Frequency
60 Hz
Current Draw
15 Amps
Dimensions
Duct Connection
22 Inches
Product Height
21 1/2 Inches
Product Width
21 1/2 Inches
Product Length
19 Inches
Product Weight
111 Pounds
Shipping Width
30 Inches
Shipping Height
20 Inches
Shipping Length
30 Inches
Shipping Weight
111 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
