Fantech FSD - 2,463 CFM - Inline Duct Fan - 18" Duct - 115V

Fantech FSD - 2,463 CFM - Inline Duct Fan - 18" Duct - 115V
Our Price
Compare Prices
Shipping Info
Model: FSD18
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$830.00

Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Duct Diameter
Add-Ons
Free Shipping$830.00Buy Now
$830.00Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

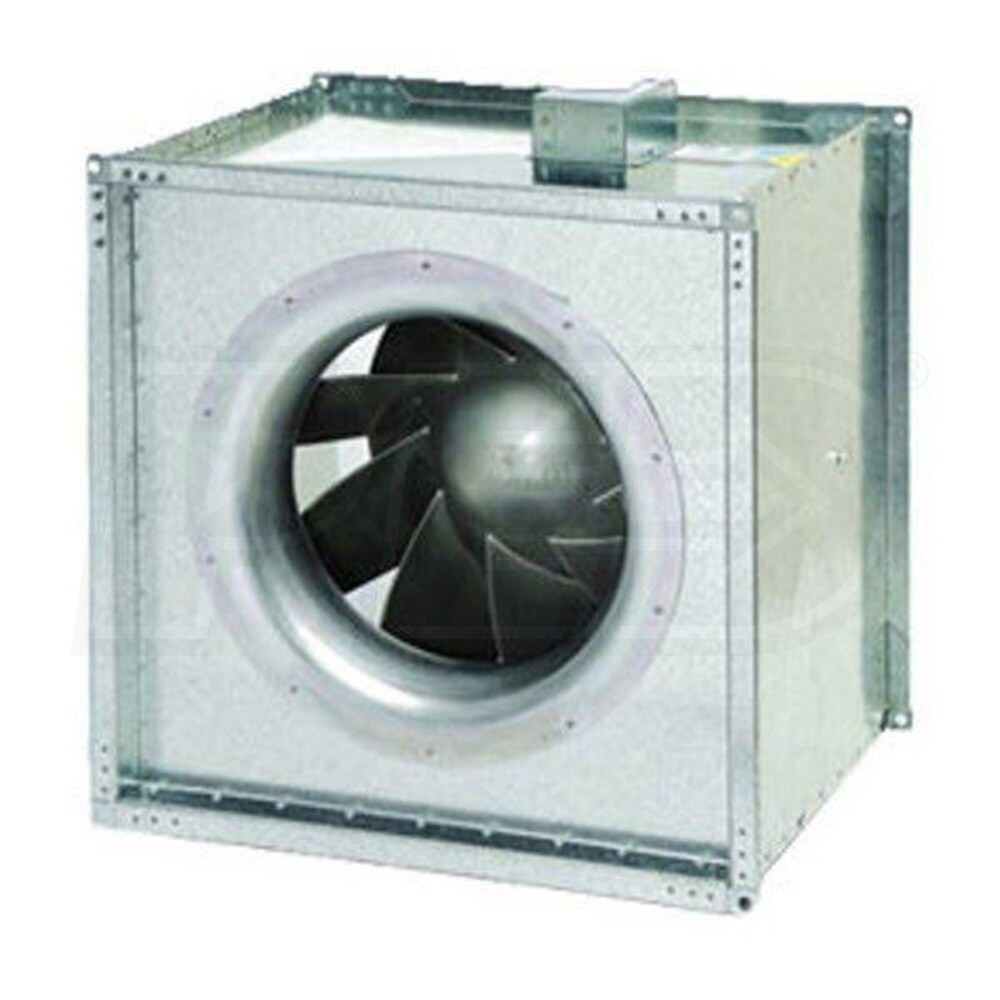

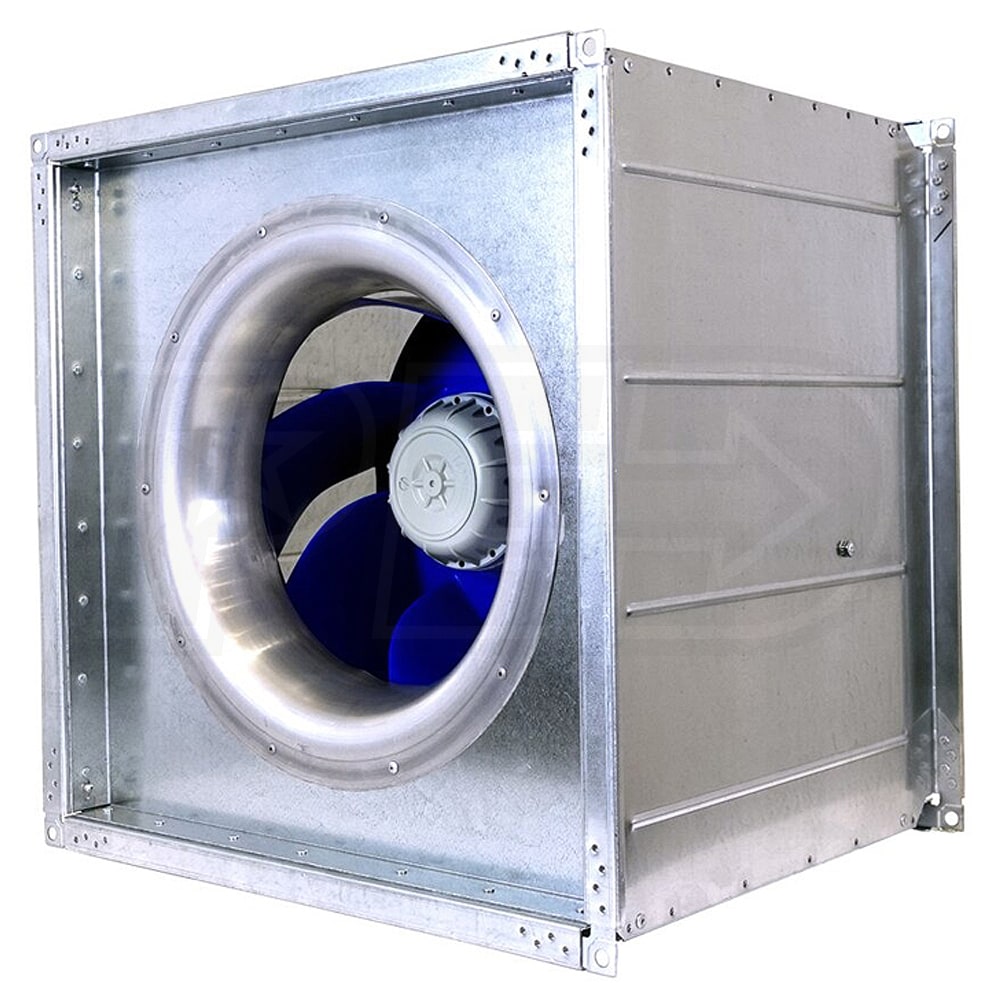

    The Fantech FSD 18 Square Inline Duct Fan is a 2,463 CFM centrifugal supply and exhaust fan designed to provide high airflow for areas with limited space. It is constructed for 18 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 115 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
Specifications
General Information
Type
Duct Fan
Product Line
FSD
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737131807
Performance
Maximum Air Flow
2463 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
12.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
4.8 Amps
Dimensions
Duct Connection
18 Inches
Product Height
17 5/8 Inches
Product Width
17 5/8 Inches
Product Length
15 3/4 Inches
Shipping Width
24 Inches
Shipping Height
20 Inches
Shipping Length
24 Inches
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    The Fantech FSD 18 Square Inline Duct Fan is a 2,463 CFM centrifugal supply and exhaust fan designed to provide high airflow for areas with limited space. It is constructed for 18 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 115 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
Specifications
General Information
Type
Duct Fan
Product Line
FSD
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737131807
Performance
Maximum Air Flow
2463 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
12.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
4.8 Amps
Dimensions
Duct Connection
18 Inches
Product Height
17 5/8 Inches
Product Width
17 5/8 Inches
Product Length
15 3/4 Inches
Shipping Width
24 Inches
Shipping Height
20 Inches
Shipping Length
24 Inches
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Type
Duct Fan
Product Line
FSD
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737131807
Performance
Maximum Air Flow
2463 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
12.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
4.8 Amps
Dimensions
Duct Connection
18 Inches
Product Height
17 5/8 Inches
Product Width
17 5/8 Inches
Product Length
15 3/4 Inches
Shipping Width
24 Inches
Shipping Height
20 Inches
Shipping Length
24 Inches
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
