Fantech FRD - 2,318 CFM - Inline Duct Fan - 24 x 14" Duct - 115V

Fantech FRD - 2,318 CFM - Inline Duct Fan - 24 x 14" Duct - 115V
Model: FRD24-14
$999.95
Ships in 3-4 Weeks
Free Shipping
Free Lift Gate Service -
Power Supply
Add-Ons

Ships in 3-4 Weeks
Free Shipping
Free Shipping
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

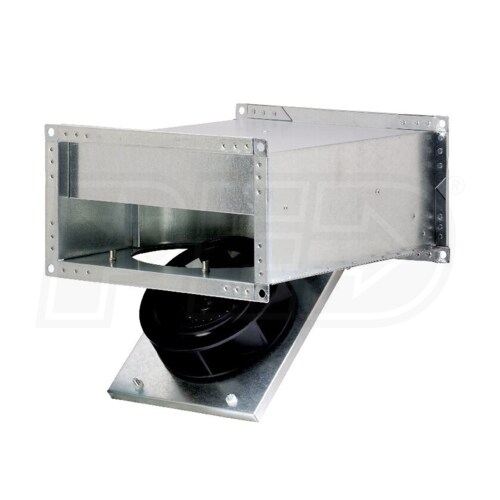

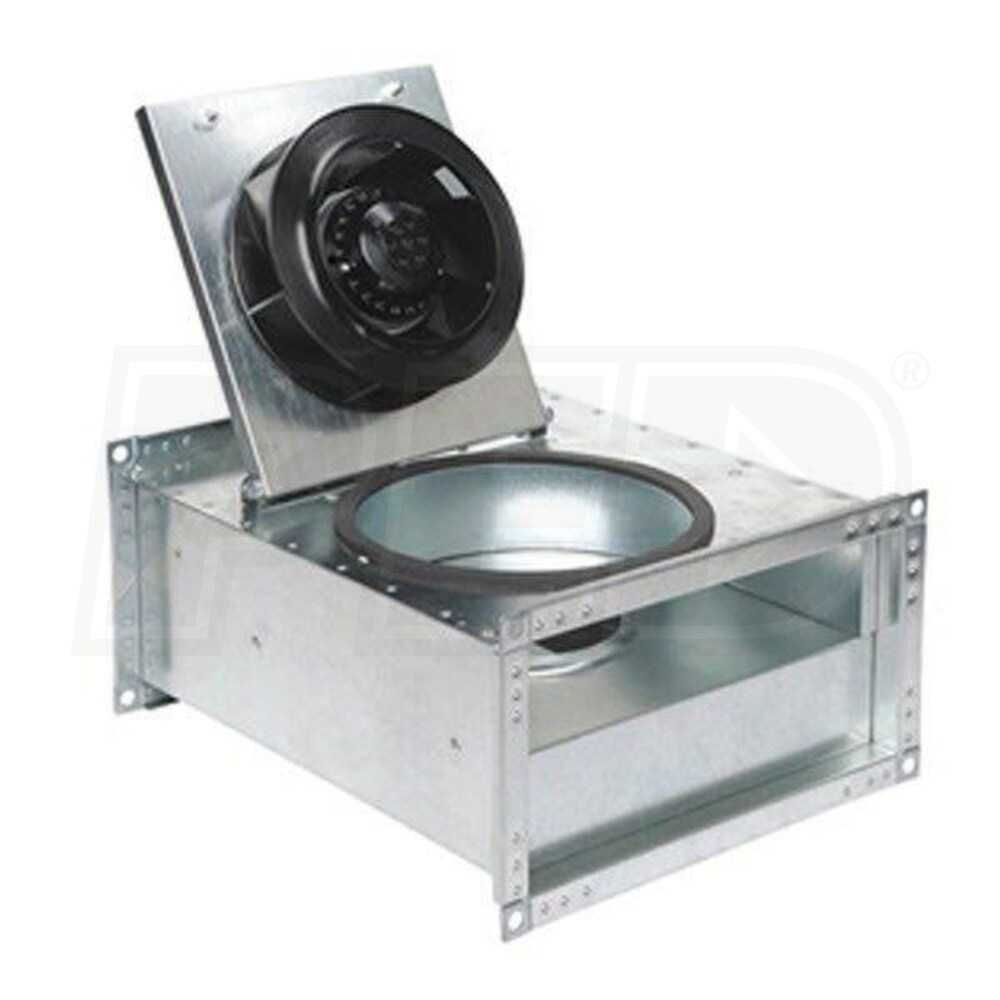

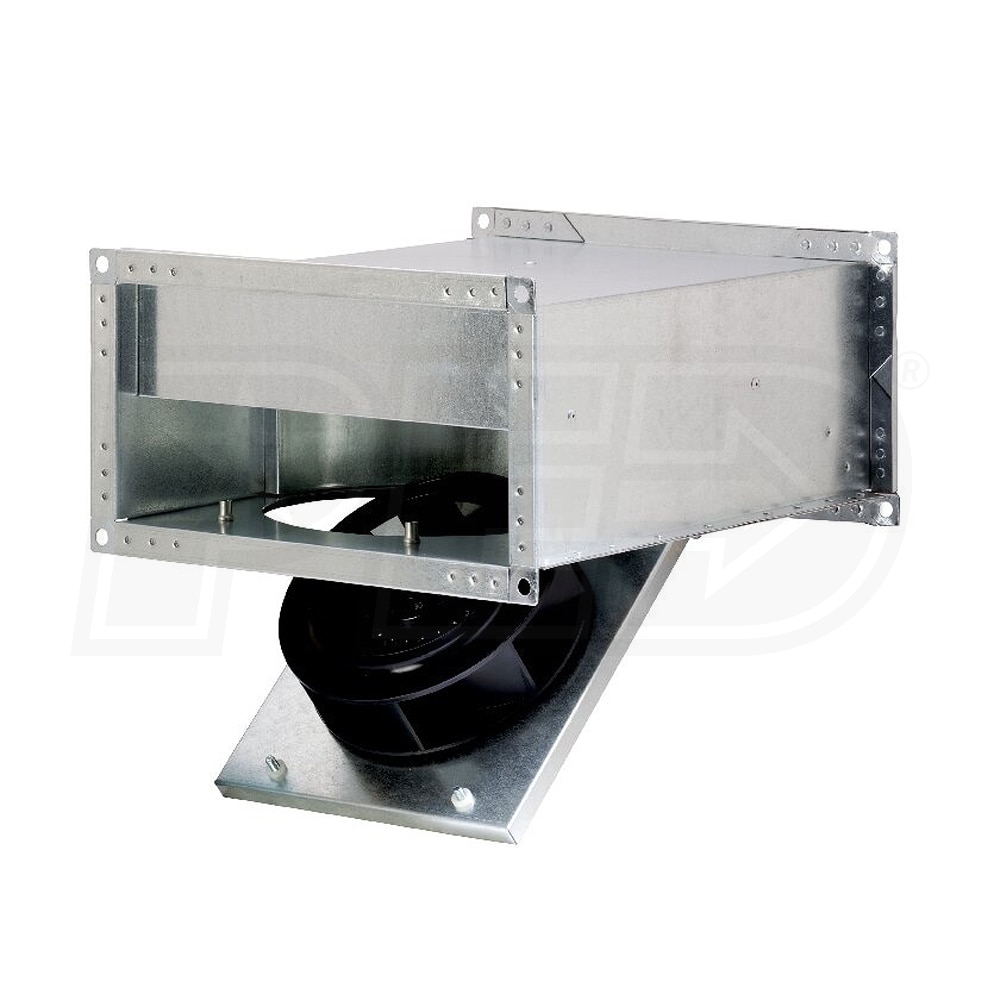

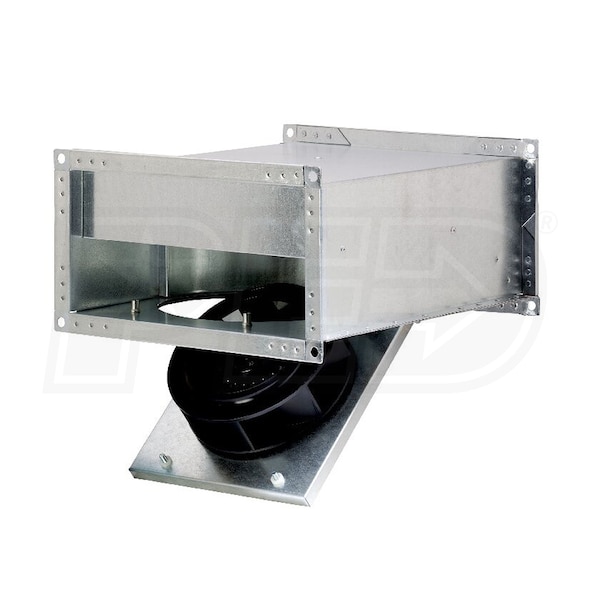

    The Fantech FRD 24-14 Rectangular Inline Duct Fan is a 2,318 CFM centrifugal supply and exhaust fan designed for large ventilation in areas of limited space. It is constructed for 24 x 14 inch venting. FRD Series Duct Fans can install directly within equally sized rectangular ductwork without the need for transitions. The motor is mounted on a hinged door for easy access. This unit is wired for 115 volts.
  • Duct-to-Duct Installation
  • A compact rectangular design allows for installation directly within rectangular ductwork without the need for large elbows or transitions.
  • Easy Maintenance
  • All serviceable components are easily accessible in under 5 minutes.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • Permanently Lubricated Motor
  • Permanently lubricated sealed ball bearings keep your fan working maintenance-free.
Specifications
General Information
Product Line
FRD
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
2318 CFM
Maximum Sound Level
18.2 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
5.18 Amps
Dimensions
Duct Connection
24 x 14 Inches
Product Height
13.75 Inches
Product Width
23.625 Inches
Product Depth
28.5 Inches
Shipping Height
20 Inches
Shipping Width
28 Inches
Shipping Length
32 Inches
Shipping Weight
86 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
