Fantech FRD - 1,013 CFM - Inline Duct Fan - 20 x 10" Duct - 115V

Fantech FRD - 1,013 CFM - Inline Duct Fan - 20 x 10" Duct - 115V
Our Price
Compare Prices
Shipping Info
Model: FRD20-10
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$555.00

Only 1 In-Stock
Ships Wednesday, Jun 3rd
Shipping Crate Icon
Free Shipping
Power Supply
Only 1 In-Stock
Ships Wednesday, Jun 3rd
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

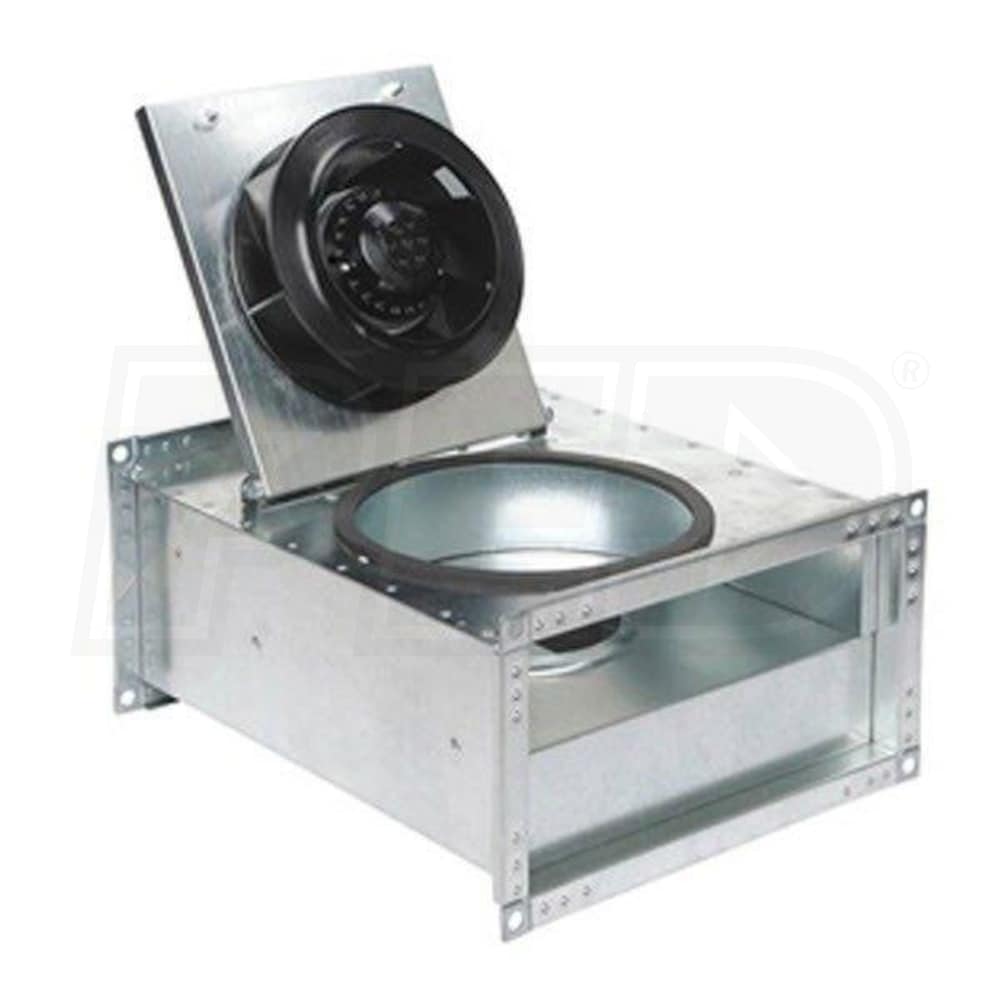

    The Fantech FRD 20-10 Rectangular Inline Duct Fan is a 1,013 CFM centrifugal supply and exhaust fan designed for large ventilation in areas of limited space. It is constructed for 20 x 10 inch venting. FRD Series Duct Fans can install directly within equally sized rectangular ductwork without the need for transitions. The motor is mounted on a hinged door for easy access. This unit is wired for 115 volts.
  • Duct-to-Duct Installation
  • A compact rectangular design allows for installation directly within rectangular ductwork without the need for large elbows or transitions.
  • Easy Maintenance
  • All serviceable components are easily accessible in under 5 minutes.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • Permanently Lubricated Motor
  • Permanently lubricated sealed ball bearings keep your fan working maintenance-free.
Specifications
General Information
Type
Duct Fan
Product Line
FRD
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737392017
Performance
Maximum Air Flow
1013 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
16.7 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.68 Amps
Dimensions
Duct Connection
20 Inches
Product Height
9 3/4 Inches
Product Width
19 5/8 Inches
Product Length
20 3/8 Inches
Shipping Width
25 Inches
Shipping Height
14 Inches
Shipping Length
26 Inches
Shipping Weight
43 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    The Fantech FRD 20-10 Rectangular Inline Duct Fan is a 1,013 CFM centrifugal supply and exhaust fan designed for large ventilation in areas of limited space. It is constructed for 20 x 10 inch venting. FRD Series Duct Fans can install directly within equally sized rectangular ductwork without the need for transitions. The motor is mounted on a hinged door for easy access. This unit is wired for 115 volts.
  • Duct-to-Duct Installation
  • A compact rectangular design allows for installation directly within rectangular ductwork without the need for large elbows or transitions.
  • Easy Maintenance
  • All serviceable components are easily accessible in under 5 minutes.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • Permanently Lubricated Motor
  • Permanently lubricated sealed ball bearings keep your fan working maintenance-free.
Specifications
General Information
Type
Duct Fan
Product Line
FRD
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737392017
Performance
Maximum Air Flow
1013 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
16.7 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.68 Amps
Dimensions
Duct Connection
20 Inches
Product Height
9 3/4 Inches
Product Width
19 5/8 Inches
Product Length
20 3/8 Inches
Shipping Width
25 Inches
Shipping Height
14 Inches
Shipping Length
26 Inches
Shipping Weight
43 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Type
Duct Fan
Product Line
FRD
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737392017
Performance
Maximum Air Flow
1013 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
16.7 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.68 Amps
Dimensions
Duct Connection
20 Inches
Product Height
9 3/4 Inches
Product Width
19 5/8 Inches
Product Length
20 3/8 Inches
Shipping Width
25 Inches
Shipping Height
14 Inches
Shipping Length
26 Inches
Shipping Weight
43 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+
Be the first to ask a question.
