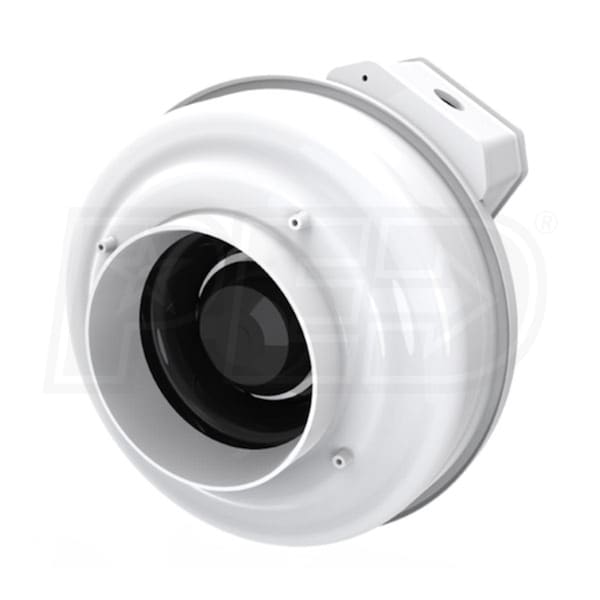

Fantech FR 227 CFM Inline Duct Fan 6" Duct 120V

Model:

FR140

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fantech FR 227 CFM Inline Duct Fan 6
Fantech FR 227 CFM Inline Duct Fan 6" Duct 120V
Model: FR140
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring a plastic housing constructed of UL-recognized and UV protected thermoplastic resin, the Fantech FR140 Centrifugal Inline Duct Fan is weather-resistant. It can be mounted in outdoor or wet locations and can be used for a variety of exhaust applications. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 227 CFM. The FR140 is constructed with a 6" round duct. It is constructed with an external rotor motor. Fans come pre-wired and include a mounting bracket for easy installation. FR Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Plastic Housing
  • Plastic housings are UV protected and allow the fan to be mounted in wet and outdoor locations.
  • Pre-wired Fan
  • For your convenience, this fan is pre-wired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems are controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Product Includes
  • (1) Fantech FR140 Inline Fan
  • (1) Mounting Bracket

Specifications

FR140
specs product image PID-62549
General Information
Type
Duct Fan
Product Line
FR
Mount Type
Inline
Housing Material
Plastic
UPC
650737011406
Additional Model Numbers

FR140, FR140

Performance
Maximum Air Flow
227 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
61.7 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.53 Amps
Dimensions
Duct Connection
6 Inches
Product Height
9 1/4 Inches
Product Width
11 1/2 Inches
Product Length
11 1/2 Inches
Product Weight
8 Pounds
Shipping Height
11 Inches
Shipping Width
13 Inches
Shipping Depth
13 Inches
Shipping Weight
8 Pounds
Certifications
CSA Listed
Yes
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
