Fantech FG EC - 428 CFM - Inline Duct Fan - 8" Duct - 120V

Fantech FG EC - 428 CFM - Inline Duct Fan - 8" Duct - 120V
Our Price
Compare Prices
Shipping Info
Model: FG8EC
$269.95
Ships in 3-4 Weeks
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Efficiency

Ships in 3-4 Weeks
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

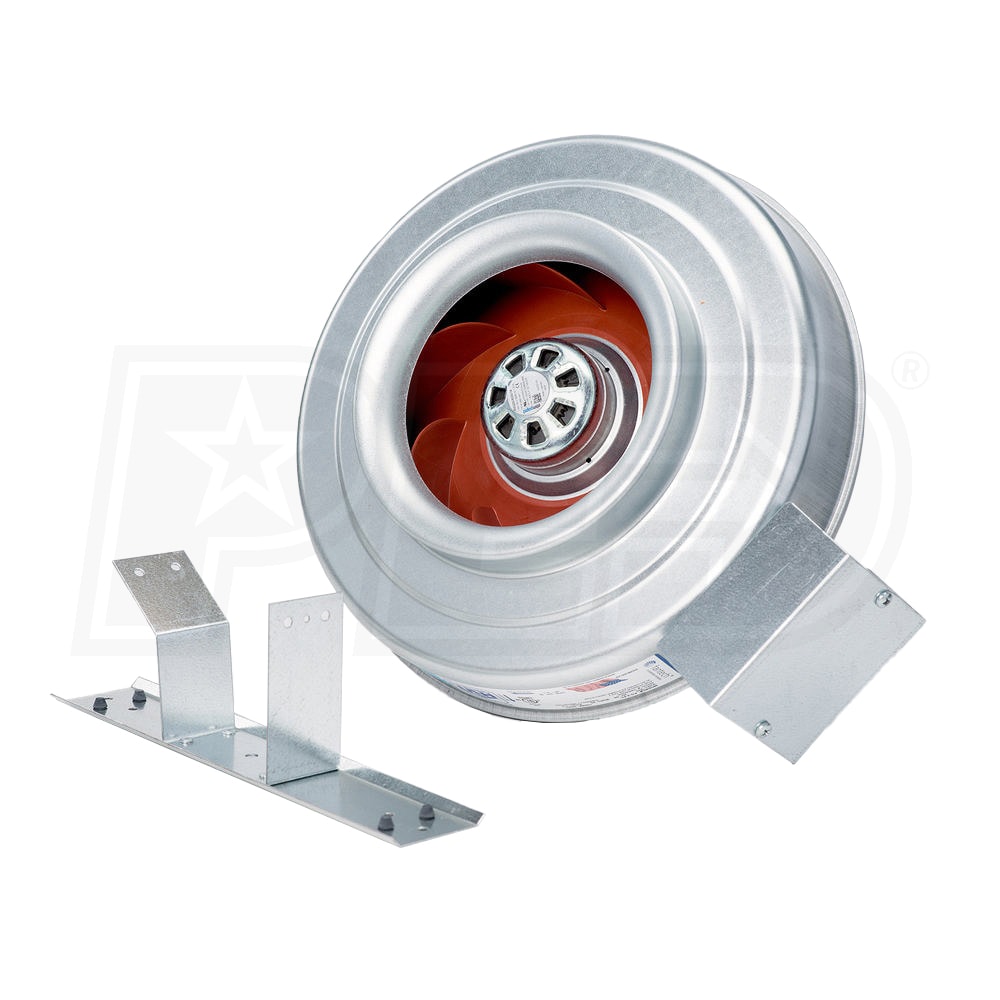

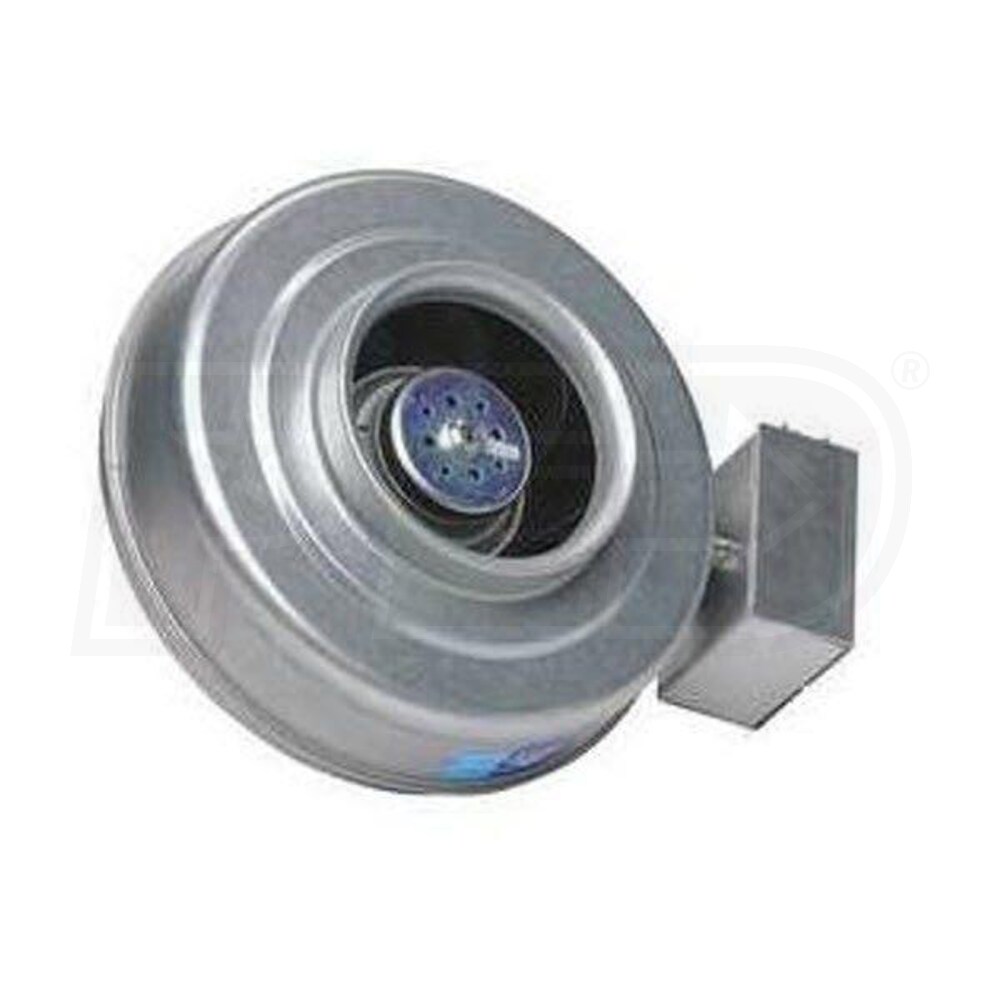

    Featuring a galvanized steel housing, the Fantech FG8 EC Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 428 CFM. The FG8 EC is constructed with an 8" round duct. Fans include a bracket for mounting to a ceiling or wall. FG EC Series Inline Fans are rated for outdoor use. These fans are equipped with electronically commutated energy-efficient motors which use up to 30% less energy than standard AC fans. Not only does energy-efficiency save on energy costs, but reduced heating during use increases the motor's lifespan and limits maintenance costs.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Electronically Commutated Motor
  • Uses 30% less energy than AC fans.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
Specifications
General Information
Product Line
FG EC
Housing Material
Galvanized Steel
UPC
650737499013
Performance
Maximum Air Flow
428 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.32 Amps
Dimensions
Duct Connection
8 Inches
Product Diameter
13 3/8 Inches
Shipping Height
12 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
11 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    Featuring a galvanized steel housing, the Fantech FG8 EC Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 428 CFM. The FG8 EC is constructed with an 8" round duct. Fans include a bracket for mounting to a ceiling or wall. FG EC Series Inline Fans are rated for outdoor use. These fans are equipped with electronically commutated energy-efficient motors which use up to 30% less energy than standard AC fans. Not only does energy-efficiency save on energy costs, but reduced heating during use increases the motor's lifespan and limits maintenance costs.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Electronically Commutated Motor
  • Uses 30% less energy than AC fans.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
Specifications
General Information
Product Line
FG EC
Housing Material
Galvanized Steel
UPC
650737499013
Performance
Maximum Air Flow
428 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.32 Amps
Dimensions
Duct Connection
8 Inches
Product Diameter
13 3/8 Inches
Shipping Height
12 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
11 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Product Line
FG EC
Housing Material
Galvanized Steel
UPC
650737499013
Performance
Maximum Air Flow
428 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.32 Amps
Dimensions
Duct Connection
8 Inches
Product Diameter
13 3/8 Inches
Shipping Height
12 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
11 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
