Fantech FG - 156 CFM - Inline Duct Fan - 5" Duct - 120V

Model:

FG5

Write a Review
$120.95
Factory-Direct
Ships in 7-14 Business Days
Fantech FG - 156 CFM - Inline Duct Fan - 5
Fantech FG - 156 CFM - Inline Duct Fan - 5" Duct - 120V
Model: FG5
$120.95
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

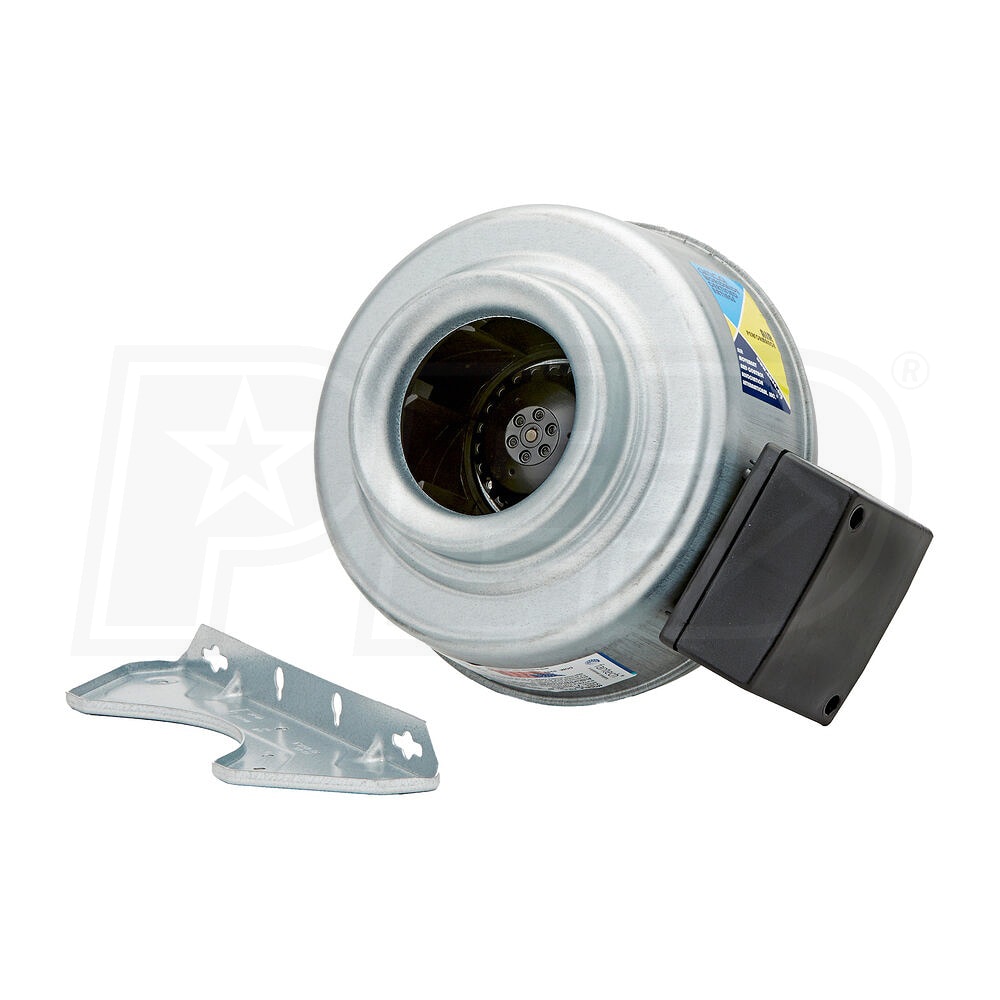

    Featuring a galvanized steel housing, the Fantech FG 5 Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any inline application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 156 CFM. This inline duct fan is constructed with a 5" round duct. The FG 5 duct fan is rated for air temperatures of up to 140 degrees Fahrenheit and feature a backward curved impeller for improved air flow. Fans include a bracket for mounting to a ceiling or wall. FG Series Inline Fans are rated for outdoor use.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.

Specifications

FG5
specs product image PID-31146
General Information
Type
Duct Fan
Product Line
FG
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737480509
Performance
Maximum Air Flow
156 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.19 Amps
Dimensions
Duct Connection
5 Inches
Product Diameter
8 3/4 Inches
Shipping Width
12 Inches
Shipping Height
12 Inches
Shipping Length
12 Inches
Shipping Weight
7 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
