Fantech FG - 589 CFM - Inline Duct Fan - 10" Duct - 120V

Model:

FG10XL

Write a Review
$295.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days

Fantech FG - 589 CFM - Inline Duct Fan - 10
Fantech FG - 589 CFM - Inline Duct Fan - 10" Duct - 120V
Model: FG10XL
$295.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

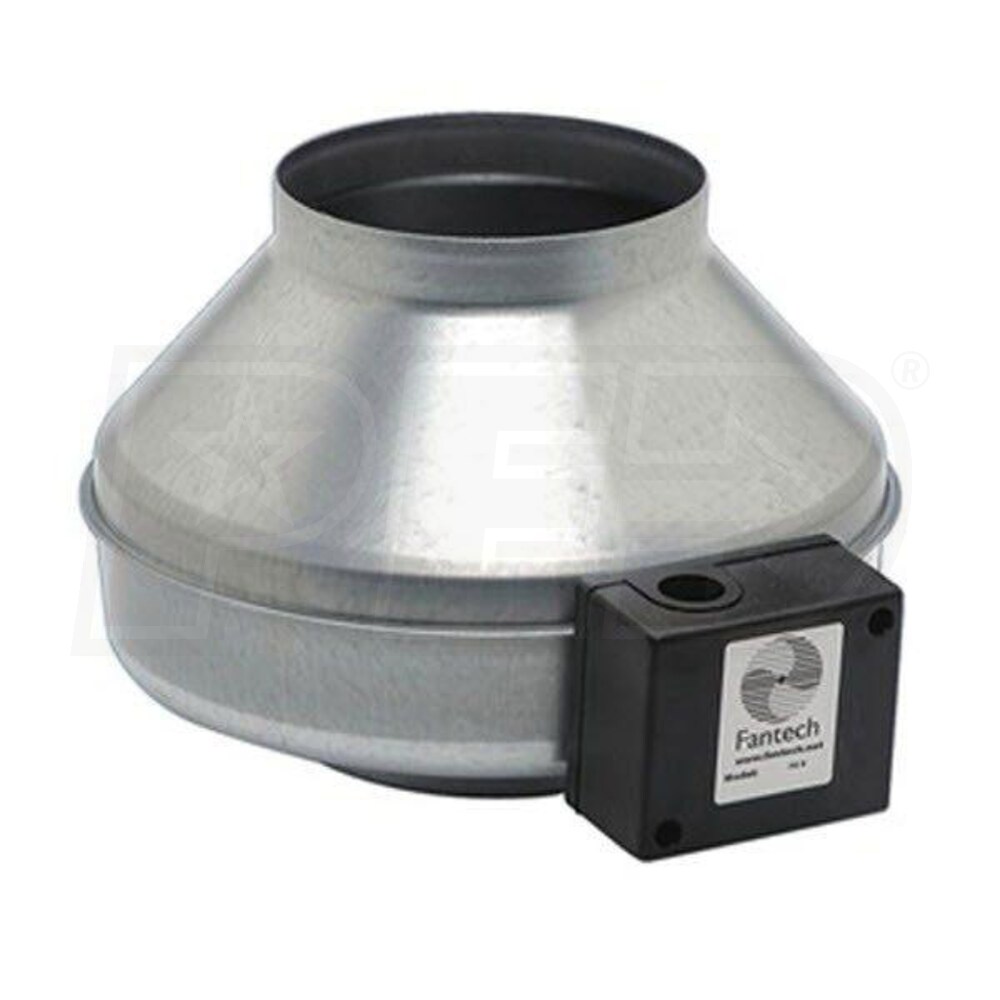

    Featuring a galvanized steel housing, the Fantech FG 10XL Centrifugal Inline Duct Fan is virtually airtight to allow peak performance in any inline application. Inline fans are installed directly in your duct work to provide powerful ventilation. This 120 volt model can produce a maximum airflow of up to 589 CFM. This inline duct fan is constructed with a 10" round duct. The FG 10XL duct fan is rated for air temperatures of up to 140 degrees Fahrenheit and feature a backward curved impeller for improved air flow. Fans include a bracket for mounting to a ceiling or wall. FG Series Inline Fans are rated for outdoor use.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.

Specifications

FG10XL
specs product image PID-31154
General Information
Type
Duct Fan
Product Line
FG
Mount Type
Inline
Housing Material
Galvanized Steel
UPC
650737481056
Performance
Maximum Air Flow
589 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.96 Amps
Dimensions
Duct Connection
10 Inches
Product Diameter
13 3/8 Inches
Shipping Width
17 Inches
Shipping Height
12 Inches
Shipping Length
17 Inches
Shipping Weight
14 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
5 Years
