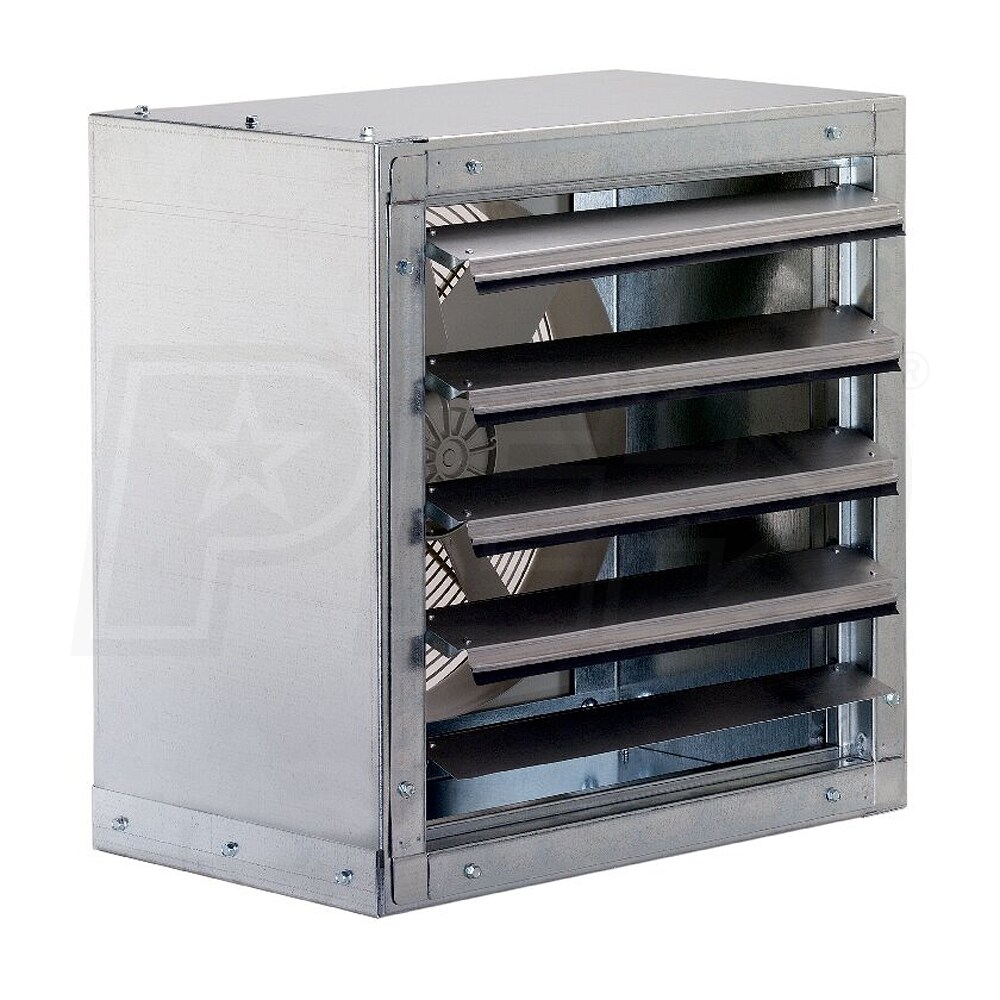

Fantech FADE - 1,208 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Assembled Housing and Damper

Fantech FADE - 1,208 CFM - Side Wall Exhaust Fan - Wall Mount - 115V - 1 Phase - Assembled Housing and Damper
Model: FADE12-4WHD
$560.00
Ships in 3-4 Weeks
Free Shipping
Max Air Flow (CFM)
Type

Ships in 3-4 Weeks
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Fantech FADE 12-4WHD Side Wall Exhaust Fan is a 1,208 CFM commercial axial fan with its assembled housing and damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 12-4WHD are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Product Line
FADE
Mount Type
Wall
Assembly Type
Complete
Housing Material
Galvanized Steel
UPC
650737454227
Performance
Maximum Air Flow
1208 CFM
Maximum Sound Level
9.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.19 Amps
Dimensions
Product Height
21 Inches
Product Width
17 Inches
Product Depth
15.5 Inches
Shipping Height
20 Inches
Shipping Width
25 Inches
Shipping Length
25 Inches
Shipping Weight
47 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    The Fantech FADE 12-4WHD Side Wall Exhaust Fan is a 1,208 CFM commercial axial fan with its assembled housing and damper designed to quietly ventilate large commercial areas while minimizing space requirements. FADE Series impellers are wall mounted and are constructed of heavy gauge galvanized steel with a baked powder coat finish. The FADE 12-4WHD are statically and dynamically balanced for vibration-free operation. It features permanently lubricated sealed ball bearings, 100% controllable airflow, and is suitable for airstream temperatures up to 100 degrees Fahrenheit.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Product Line
FADE
Mount Type
Wall
Assembly Type
Complete
Housing Material
Galvanized Steel
UPC
650737454227
Performance
Maximum Air Flow
1208 CFM
Maximum Sound Level
9.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.19 Amps
Dimensions
Product Height
21 Inches
Product Width
17 Inches
Product Depth
15.5 Inches
Shipping Height
20 Inches
Shipping Width
25 Inches
Shipping Length
25 Inches
Shipping Weight
47 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Product Line
FADE
Mount Type
Wall
Assembly Type
Complete
Housing Material
Galvanized Steel
UPC
650737454227
Performance
Maximum Air Flow
1208 CFM
Maximum Sound Level
9.4 Sones
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.19 Amps
Dimensions
Product Height
21 Inches
Product Width
17 Inches
Product Depth
15.5 Inches
Shipping Height
20 Inches
Shipping Width
25 Inches
Shipping Length
25 Inches
Shipping Weight
47 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+

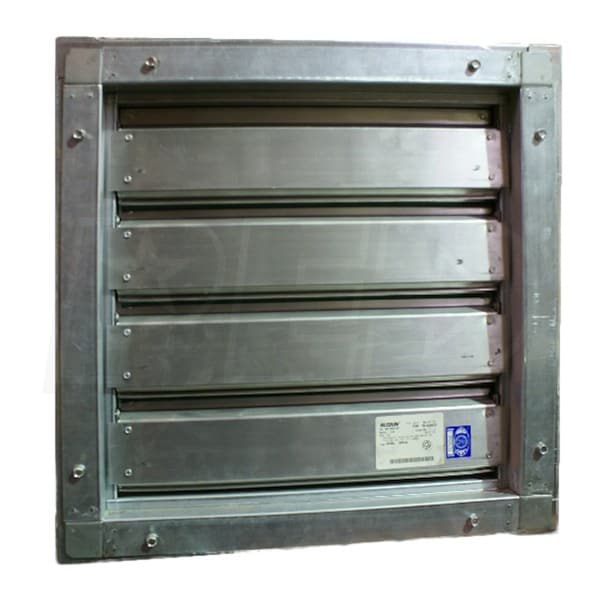

How do the shutters hold tight against strong winds? Can they be closed manually?
Christine W.
from Kansas
October 23, 2016
Answer
If the wind is blowing against the shutters, it will actually help to close them more tightly. If they are on the leeward side of your building, you could get a low pressure that creates some air leakage. This unit is a back draft damper only so it will keep air from getting into the building but will not prevent it from escaping.
