Fantech CVS - 404 CFM - Multi-Port Fan - 4" Duct - 4 Ports

Fantech CVS - 404 CFM - Multi-Port Fan - 4" Duct - 4 Ports
Our Price
Compare Prices
Shipping Info
Model: CVS400A
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$269.95

In-Stock
Ships in 7-10 Days
Shipping Crate Icon
Free Shipping
Max Air Flow (CFM)
In-Stock
Ships in 7-10 Days
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

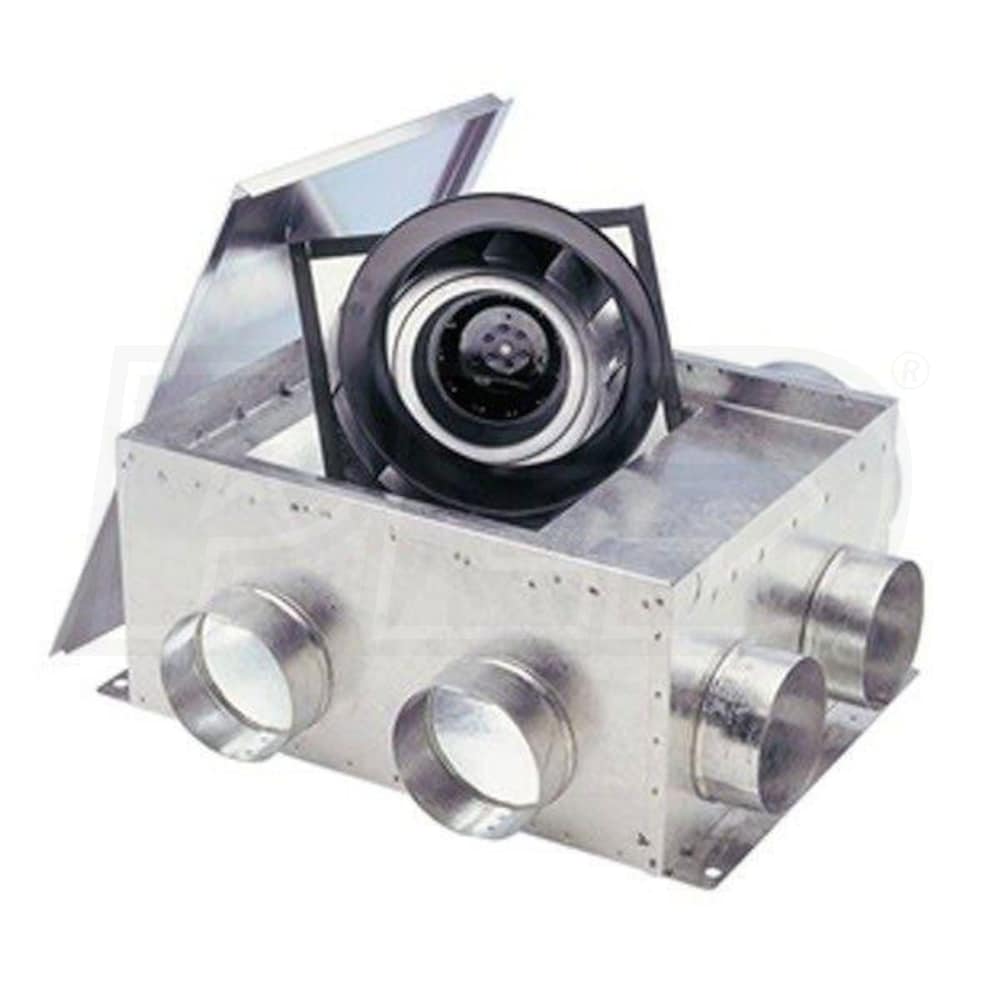

    The Fantech CVS 400A Multi-Port Fan is designed for areas where ventilation is needed but space is limited. Commonly installed in the spaces between floors, the CVS 400A is a 4 port centrifugal fan with a maximum airflow of 404 CFM. Multi-port fans allow several exhaust points to connect to one centrally located fan. CVS Series fans are engineered for vibration free, quiet performance. They are capable of handling air flows up to 140 degrees Fahrenheit. Each unit is constructed with a galvanized steel housing and an external rotor motor with a backward-curved centrifugal fan wheel.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Type
Ventilation Fan
Product Line
CVS
Ports Quantity
4
Housing Material
Galvanized Steel
UPC
650737334000
Performance
Maximum Air Flow
404 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.41 Amps
Dimensions
Duct Connection
4 Inches
Product Height
8 1/4 Inches
Product Width
16 Inches
Product Length
13 Inches
Shipping Width
21 Inches
Shipping Height
13 Inches
Shipping Length
21 Inches
Shipping Weight
23 Pounds
Intake Diameter
4 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    The Fantech CVS 400A Multi-Port Fan is designed for areas where ventilation is needed but space is limited. Commonly installed in the spaces between floors, the CVS 400A is a 4 port centrifugal fan with a maximum airflow of 404 CFM. Multi-port fans allow several exhaust points to connect to one centrally located fan. CVS Series fans are engineered for vibration free, quiet performance. They are capable of handling air flows up to 140 degrees Fahrenheit. Each unit is constructed with a galvanized steel housing and an external rotor motor with a backward-curved centrifugal fan wheel.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Type
Ventilation Fan
Product Line
CVS
Ports Quantity
4
Housing Material
Galvanized Steel
UPC
650737334000
Performance
Maximum Air Flow
404 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.41 Amps
Dimensions
Duct Connection
4 Inches
Product Height
8 1/4 Inches
Product Width
16 Inches
Product Length
13 Inches
Shipping Width
21 Inches
Shipping Height
13 Inches
Shipping Length
21 Inches
Shipping Weight
23 Pounds
Intake Diameter
4 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
Ventilation Fan
Product Line
CVS
Ports Quantity
4
Housing Material
Galvanized Steel
UPC
650737334000
Performance
Maximum Air Flow
404 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.41 Amps
Dimensions
Duct Connection
4 Inches
Product Height
8 1/4 Inches
Product Width
16 Inches
Product Length
13 Inches
Shipping Width
21 Inches
Shipping Height
13 Inches
Shipping Length
21 Inches
Shipping Weight
23 Pounds
Intake Diameter
4 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
