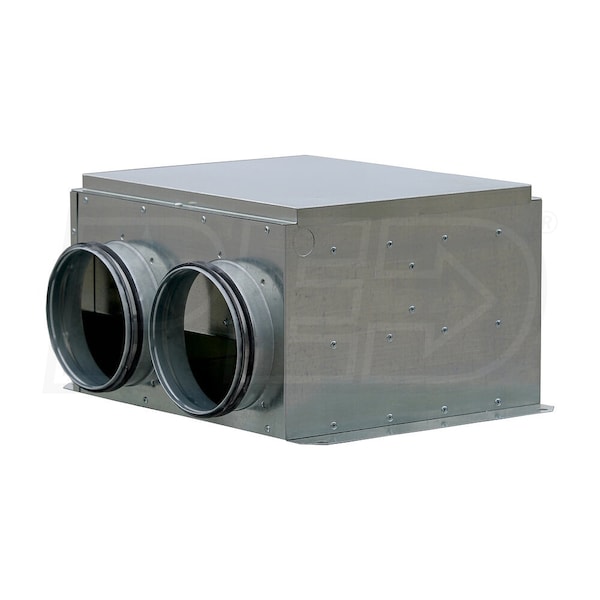

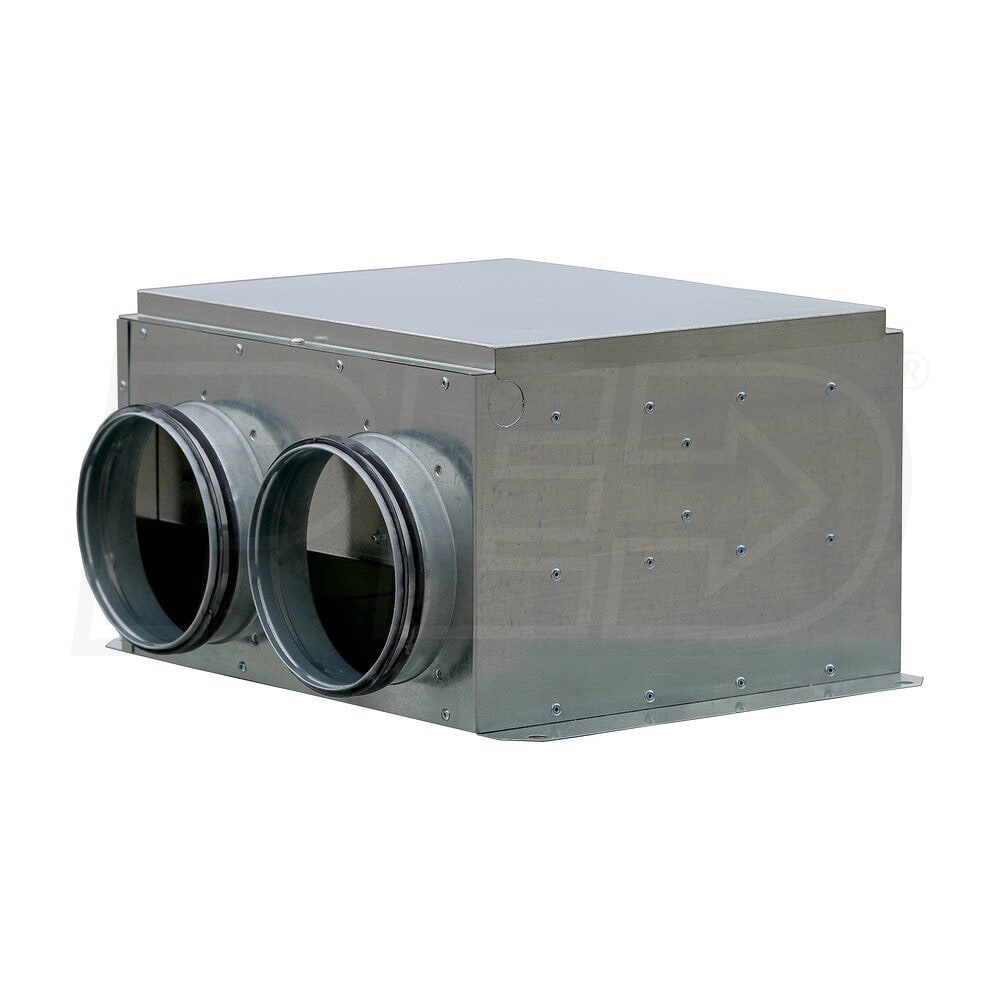

The Fantech CVS 275A Multi-Port Fan is designed for areas where ventilation is needed but space is limited. Commonly installed in the spaces between floors, the CVS 275A is a 2 port centrifugal fan with a maximum airflow of 245 CFM. Multi-port fans allow several exhaust points to connect to one centrally located fan. CVS Series fans are engineered for vibration free, quiet performance. They are capable of handling air flows up to 140 degrees Fahrenheit. Each unit is constructed with a galvanized steel housing and an external rotor motor with a backward-curved centrifugal fan wheel.
Permanently Lubricated Sealed Ball Bearings
Permanently lubricated sealed ball bearings extend the service life of your fan.
100% Speed Controllable
On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
External Rotor Motor
An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Product Line
CVS
Ports Quantity
2
Housing Material
Galvanized Steel
UPC
650737332754
Performance
Maximum Air Flow
245 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.79 Amps
Dimensions
Duct Connection
5 Inches
Product Height
7 5/8 Inches
Product Width
12 Inches
Product Depth
11 Inches
Shipping Height
12 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
15 Pounds
Intake Diameter
5 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
The Fantech CVS 275A Multi-Port Fan is designed for areas where ventilation is needed but space is limited. Commonly installed in the spaces between floors, the CVS 275A is a 2 port centrifugal fan with a maximum airflow of 245 CFM. Multi-port fans allow several exhaust points to connect to one centrally located fan. CVS Series fans are engineered for vibration free, quiet performance. They are capable of handling air flows up to 140 degrees Fahrenheit. Each unit is constructed with a galvanized steel housing and an external rotor motor with a backward-curved centrifugal fan wheel.
Permanently Lubricated Sealed Ball Bearings
Permanently lubricated sealed ball bearings extend the service life of your fan.
100% Speed Controllable
On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
External Rotor Motor
An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Product Line
CVS
Ports Quantity
2
Housing Material
Galvanized Steel
UPC
650737332754
Performance
Maximum Air Flow
245 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.79 Amps
Dimensions
Duct Connection
5 Inches
Product Height
7 5/8 Inches
Product Width
12 Inches
Product Depth
11 Inches
Shipping Height
12 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
15 Pounds
Intake Diameter
5 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+−
Specifications
General Information
Product Line
CVS
Ports Quantity
2
Housing Material
Galvanized Steel
UPC
650737332754
Performance
Maximum Air Flow
245 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.79 Amps
Dimensions
Duct Connection
5 Inches
Product Height
7 5/8 Inches
Product Width
12 Inches
Product Depth
11 Inches
Shipping Height
12 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
15 Pounds
Intake Diameter
5 Inches
Exhaust Diameter
6 Inches
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
