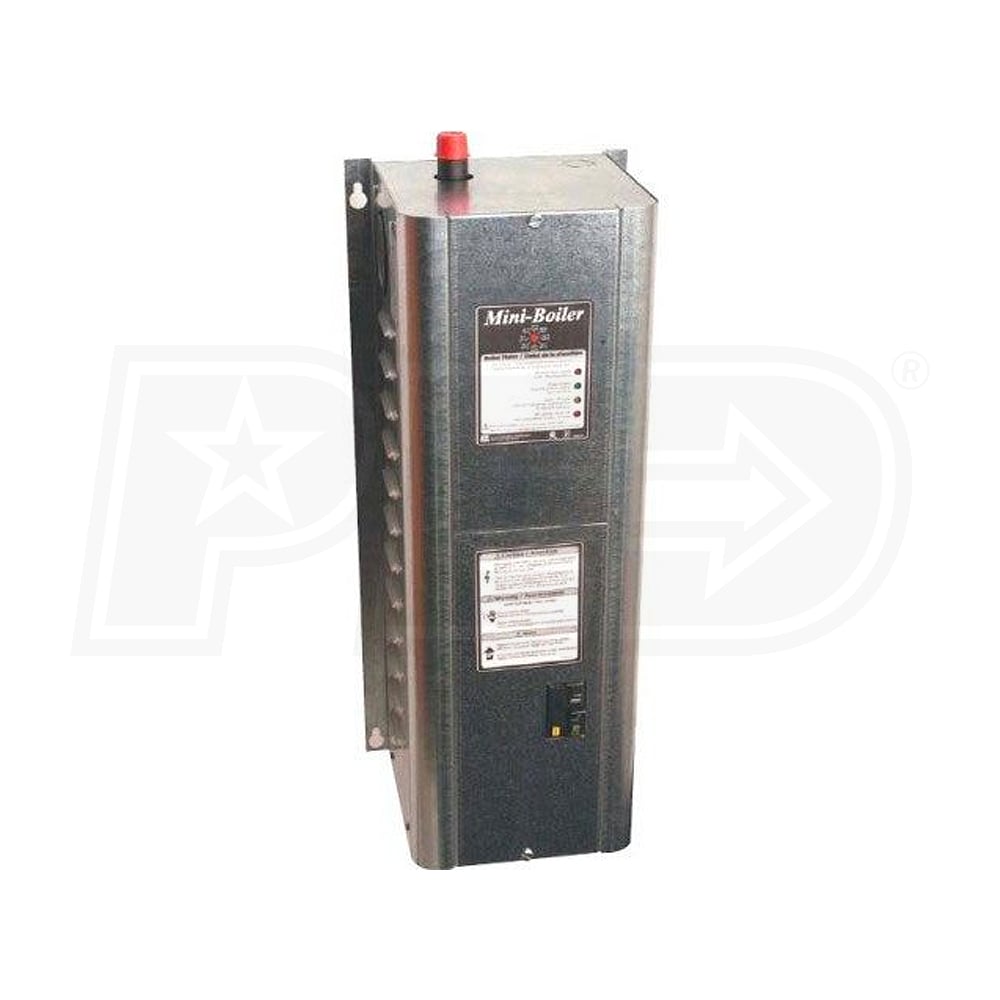

Electro Industries EMB-S-5 - 4.5 kW - 15K BTU - Hot Water Electric Boiler - 240V - 1 Phase

Electro Industries EMB-S-5 - 4.5 kW - 15K BTU - Hot Water Electric Boiler - 240V - 1 Phase
Model: EMB-S-5
$879.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping

Factory-Direct
Ships in 7-14 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 7
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Our new Mini-Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
  • Electro Industries EMB-S-5 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 160 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.
Specifications
General Information
Product Line
EMB-S
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Wall
Assembly Type
Packaged
Performance
Heating Capacity
15000 BTU
Heating Capacity (kW)
4.5 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
18.75 Amps
Dimensions
Supply Connection
0.75 Inches
Return Connection
0.75 Inches
Product Height
25 Inches
Product Width
11 Inches
Product Depth
9 Inches
Product Weight
53 Pounds
Shipping Weight
53 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Features
Features
    Our new Mini-Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
  • Electro Industries EMB-S-5 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 160 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.
Specifications
General Information
Product Line
EMB-S
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Wall
Assembly Type
Packaged
Performance
Heating Capacity
15000 BTU
Heating Capacity (kW)
4.5 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
18.75 Amps
Dimensions
Supply Connection
0.75 Inches
Return Connection
0.75 Inches
Product Height
25 Inches
Product Width
11 Inches
Product Depth
9 Inches
Product Weight
53 Pounds
Shipping Weight
53 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Product Specs
+
Specifications
General Information
Product Line
EMB-S
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Wall
Assembly Type
Packaged
Performance
Heating Capacity
15000 BTU
Heating Capacity (kW)
4.5 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
18.75 Amps
Dimensions
Supply Connection
0.75 Inches
Return Connection
0.75 Inches
Product Height
25 Inches
Product Width
11 Inches
Product Depth
9 Inches
Product Weight
53 Pounds
Shipping Weight
53 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Reviews
(7)
+
Electro Industries EMB-S-5 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
How do I figure out the cost to run this in comparison to a NG boiler or heater?
Steven
from Michigan
December 11, 2015
Answer
Operating costs are difficult to estimate accurately and are dependent on a number of factors ranging from the climate the system is installed into the quality of the insulation of the space being heated to the cost of the fuel being used. They will even be affected by the temperature preferences of the people using the building. However, in most areas of the country where natural gas is available, it is a significantly less expensive heating fuel than electricity. In areas of the country dependent on oil or propane, the relative fuel prices could favor electricity as a heating source. Please feel free to contact us if you would like to learn more about the relative costs of heating in your specific application.
+
Can you run a glycol/water mix in the EMB-S boiler?
Judi
from Michigan
September 29, 2015
Answer
Yes, you can absolutely use a glycol solution with the EMB-S boilers. Make sure you use a product designed for use in hot water heating systems and follow the anti-freeze manufacturer's guidelines to ensure you have a proper ratio of glycol to water for your climate. I would suggest confirming compatibility with Electro Industries if you will require a solution exceeding 50% glycol.
