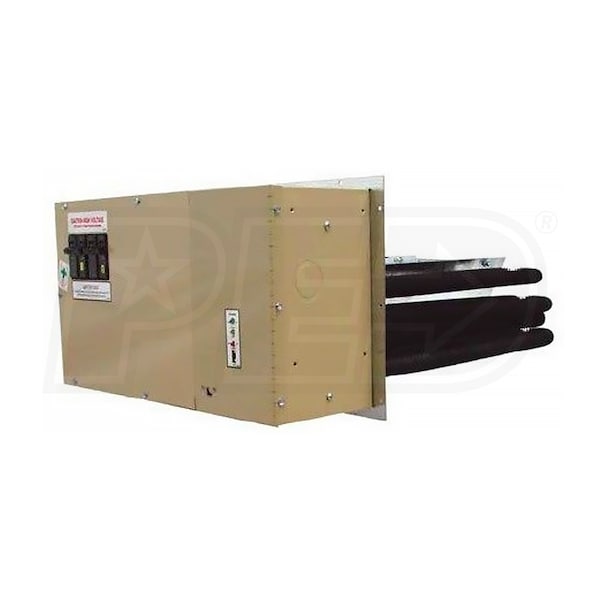

Electro Industries EM-WD254D8-SL2, WarmFlo Four Stage Electric Plenum Duct Heater-18" upflow,25 k

Electro Industries EM-WD254D8-SL2, WarmFlo Four Stage Electric Plenum Duct Heater-18" upflow,25 k
Model: EM-WU254D8-SL2
$1,628.47
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)

Factory-Direct
Ships in 4-7 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    EM-WD254D8-SL2, WarmFlo Four Stage Electric Plenum Duct Heater - 18" Upflow, 25 kW - 85,000 BTU

    Our WarmFlo Select Plenum Heater makes ordering and installing a WarmFlo plenum heater easier than ever. We have integrated the control and interface modules into one discrete system which includes all of the features and flexibility of WarmFlo EM-WD254D8-SL2 II plenum heaters. In other words, you no longer have to worry about which interface module or chip code you need whether you are installing the plenum heater in conjunction with air conditioning, without air conditioning, or with a single stage heat pump.

    How does WarmFlo work with an air source heat pump?

    The WarmFlo controller receives temperature information from the warm air plenum sensor and the outside sensor to monitor the heating system performance. Using data from the sensors, the WarmFlo intelligent controller automatically establishes a warm air delivery temperature ideal for the specific outdoor temperature. As outside temperature drops, the air source heat pump output decreases and the warm air required to heat the home increases. The WarmFlo plenum heater automatically adds heat in 500 watt increments to meet the heating requirements of the home.

    Benefits of EM-WD254D8-SL2, WarmFlo Four Stage Electric Plenum Duct Heater at a glance:

      Outstanding 100% Efficiency.

    • Uses low electric kWh rate for 91+ % of the annual heating.
    • No chip code selection required.
    • Application selection dial HP or non-HP.
    • Duel-Fuel Capability.
    • One model, can be used with a Gas/Oil/Wood Furnace.
    • Variable Speed Motor Furnaces and Air Handlers Comparable.
    • Quiet operation with DC relays.
    • Energy control selector.
    • Simple 4-wire conventional thermostat wiring used for both heat pump heating and air conditioning systems.
    WarmFlo Select Electric Plenum Heater Series Other Standard Features:
    • Provides a control technology for utilizing the high efficiencies of a heat pump down to at least 0 F.
    • Generally provides $400+ annual operating savings compared to dual fuel HP installations.
    • Proportional control - outlet temperature ramps up with decrease in outdoor temperature.
    • Overcomes heat pump "cold air syndrome".
    • Mini Demand Control or Load Shed.
    • Setup dial selections - Heat Pump or non-Heat Pump.
    • Heating capacity determined by outdoor temperature.
    • Thermostat or end switch connection (R and W).
    • Load management control provisions.
    • Heavy duty sheet metal enclosure.
    • Approved zero clearance above A-coil or furnace.
    • Single conventional 4-wire thermostat control.
    • Spin finned rod elements (20-year warranty).
    • 2-year parts warranty.
    • Can be added to most 100-amp service entrances - 5 kW firm load, 5 kW shed load.
    • Typically less airflow upgrades and less baffling requirements.
    • Quiet operation with individual DC relays.
    • Energy control selector.
    • Factory tested.
    • Made in the USA.
    WarmFlo Select Electric Plenum Heater Series Warranty:
    • 2 years parts / 20 years Heating Elements.

    All of the WarmFlo Plenum Duct Electric Heaters makes ordering and installing a WarmFlo plenum heater easier than ever. We have integrated the control and interface modules into one discrete system which includes all of the features and flexibility of our WarmFlo II plenum heaters. In other words, you no longer have to worry about which interface module or chip code you need whether you are installing the plenum heater in conjunction with air conditioning, without air conditioning, or with a single stage heat pump.

Specifications
Features
Features

    EM-WD254D8-SL2, WarmFlo Four Stage Electric Plenum Duct Heater - 18" Upflow, 25 kW - 85,000 BTU

    Our WarmFlo Select Plenum Heater makes ordering and installing a WarmFlo plenum heater easier than ever. We have integrated the control and interface modules into one discrete system which includes all of the features and flexibility of WarmFlo EM-WD254D8-SL2 II plenum heaters. In other words, you no longer have to worry about which interface module or chip code you need whether you are installing the plenum heater in conjunction with air conditioning, without air conditioning, or with a single stage heat pump.

    How does WarmFlo work with an air source heat pump?

    The WarmFlo controller receives temperature information from the warm air plenum sensor and the outside sensor to monitor the heating system performance. Using data from the sensors, the WarmFlo intelligent controller automatically establishes a warm air delivery temperature ideal for the specific outdoor temperature. As outside temperature drops, the air source heat pump output decreases and the warm air required to heat the home increases. The WarmFlo plenum heater automatically adds heat in 500 watt increments to meet the heating requirements of the home.

    Benefits of EM-WD254D8-SL2, WarmFlo Four Stage Electric Plenum Duct Heater at a glance:

      Outstanding 100% Efficiency.

    • Uses low electric kWh rate for 91+ % of the annual heating.
    • No chip code selection required.
    • Application selection dial HP or non-HP.
    • Duel-Fuel Capability.
    • One model, can be used with a Gas/Oil/Wood Furnace.
    • Variable Speed Motor Furnaces and Air Handlers Comparable.
    • Quiet operation with DC relays.
    • Energy control selector.
    • Simple 4-wire conventional thermostat wiring used for both heat pump heating and air conditioning systems.
    WarmFlo Select Electric Plenum Heater Series Other Standard Features:
    • Provides a control technology for utilizing the high efficiencies of a heat pump down to at least 0 F.
    • Generally provides $400+ annual operating savings compared to dual fuel HP installations.
    • Proportional control - outlet temperature ramps up with decrease in outdoor temperature.
    • Overcomes heat pump "cold air syndrome".
    • Mini Demand Control or Load Shed.
    • Setup dial selections - Heat Pump or non-Heat Pump.
    • Heating capacity determined by outdoor temperature.
    • Thermostat or end switch connection (R and W).
    • Load management control provisions.
    • Heavy duty sheet metal enclosure.
    • Approved zero clearance above A-coil or furnace.
    • Single conventional 4-wire thermostat control.
    • Spin finned rod elements (20-year warranty).
    • 2-year parts warranty.
    • Can be added to most 100-amp service entrances - 5 kW firm load, 5 kW shed load.
    • Typically less airflow upgrades and less baffling requirements.
    • Quiet operation with individual DC relays.
    • Energy control selector.
    • Factory tested.
    • Made in the USA.
    WarmFlo Select Electric Plenum Heater Series Warranty:
    • 2 years parts / 20 years Heating Elements.

    All of the WarmFlo Plenum Duct Electric Heaters makes ordering and installing a WarmFlo plenum heater easier than ever. We have integrated the control and interface modules into one discrete system which includes all of the features and flexibility of our WarmFlo II plenum heaters. In other words, you no longer have to worry about which interface module or chip code you need whether you are installing the plenum heater in conjunction with air conditioning, without air conditioning, or with a single stage heat pump.

Specifications
Product Specs
+
Specifications
