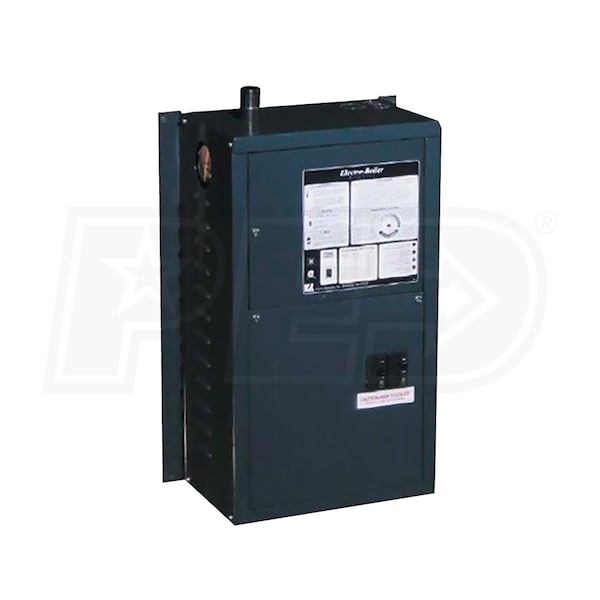

Electro Industries EB-MX-20 - 20 kW - 68K BTU - Hot Water Electric Boiler - 240V - 1 Phase

Electro Industries EB-MX-20 - 20 kW - 68K BTU - Hot Water Electric Boiler - 240V - 1 Phase
Our Price
Compare Prices
Shipping Info
Model: EB-MX-20
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$1,720.00
Factory-Direct
Ships in 2-3 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping

Factory-Direct
Ships in 2-3 Weeks
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The new Mid-Size EB-MX Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. As part of the EB-MX Electric Boiler Series, the Midsize electric boiler offers complete application flexibility. Features - 205 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. Mid-Size EB-MX Electro Boiler is Outlet Temperature Sensing Boiler (Staging).
  • Electro Industries EB-MX-20 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 185 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.
Specifications
General Information
Product Line
EB-MX
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Assembly Type
Packaged
Performance
Heating Capacity
68000 BTU
Heating Capacity (kW)
20 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
83.33 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
27.9375 Inches
Product Width
16.875 Inches
Product Depth
10.125 Inches
Product Weight
75 Pounds
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Features
Features
    The new Mid-Size EB-MX Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries. As part of the EB-MX Electric Boiler Series, the Midsize electric boiler offers complete application flexibility. Features - 205 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. Mid-Size EB-MX Electro Boiler is Outlet Temperature Sensing Boiler (Staging).
  • Electro Industries EB-MX-20 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays
  • Circulator switching relay - 10-amp maximum
  • Thermostat or end switch connection (R and W)
  • Load management control provisions
  • Heavy duty sheet metal enclosure
  • Supply pressure/temperature gauge
  • Safety relief valve (30 PSI)
  • Heating elements (20-year warranty)
  • 2-year parts warranty
  • Supply water sensing
  • Temperature range 90 F to 185 F
  • ASME/CSA listings
  • Made in the USA
  • Factory tested.
Specifications
General Information
Product Line
EB-MX
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Assembly Type
Packaged
Performance
Heating Capacity
68000 BTU
Heating Capacity (kW)
20 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
83.33 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
27.9375 Inches
Product Width
16.875 Inches
Product Depth
10.125 Inches
Product Weight
75 Pounds
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Product Specs
+
Specifications
General Information
Product Line
EB-MX
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Assembly Type
Packaged
Performance
Heating Capacity
68000 BTU
Heating Capacity (kW)
20 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
83.33 Amps
Dimensions
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
27.9375 Inches
Product Width
16.875 Inches
Product Depth
10.125 Inches
Product Weight
75 Pounds
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
Vessel Warranty
20 Years
Reviews
(2)
+
Electro Industries EB-MX-20 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Can this unit be used in series with an outside wood boiler? The wood boiler being the primary and this as back up as needed.
Jason
from Pennsylvania
May 20, 2018
Answer
A couple of things. If your wood boiler is set to supply water temperature over 180 degrees, do a parallel piping arrangement because it will trip the limits on the Electro boiler. If you are using an open loop (open to atmosphere) you should use a plate heat exchanger because the excess oxygen isn't good for the Electro boiler. If you're good with both of the first two responses, set up an aquastat to the incoming pipe to the Electro boiler, and it will automatically come on when the wood boiler drops out.
