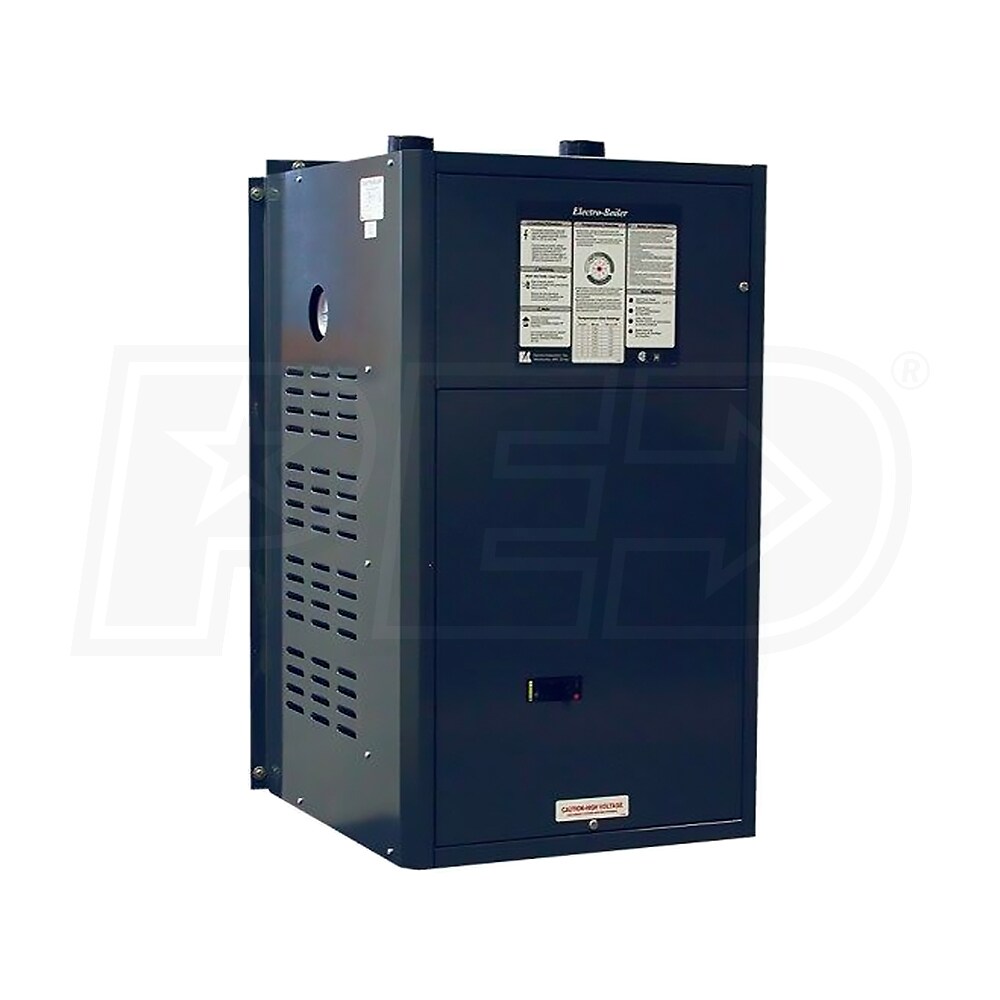

Electro Industries EB-CX-18-48 - 18 kW - 61K BTU - Hot Water Electric Boiler - 480V - 3 Phase
Model: EB-CX-18-48
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(4)
Write a Review
$2,959.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 7-10 Days
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Electric Heat Capacity (kW)
Voltage (Volts)
Phase
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 4
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Designed for larger hydronic heating applications, the "CX" series boilers offer many new features. Available in many voltages and capacities, the temperature sensing, relay staging and vessel configuration offer quiet operation, minimal relay cycling, consistent temperature output and most of all product reliability. More experienced installers use this boiler to avoid the extra cost of the above. As part of the EB-CX Commercial Electric Boiler Series, the hot water electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
  • Electro Industries EB-CX-18-48 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays.
  • Circulator switching relay - 10-amp maximum.
  • Thermostat or end switch connection (R and W).
  • Load management control provisions.
  • Heavy duty sheet metal enclosure.
  • Supply pressure/temperature gauge.
  • Safety relief valve (30 PSI).
  • Supply water sensing.
  • Temperature range 90 F to 185 F.
  • ASME/CSA listed.
  • Made in the USA.
  • Factory tested.
Specifications
General Information
Product Line
EB-CX
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Three Stage
Mount Type
Wall
Includes Pump
No
Assembly Type
Packaged
Performance
Heating Capacity
61434 BTU
Heating Capacity (kW)
18 kW
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
22 Amps
Dimensions
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
38 1/8 Inches
Product Width
22 Inches
Product Depth
20 9/16 Inches
Product Weight
225 Pounds
Shipping Weight
225 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heating Element Warranty
1 Year
Vessel Warranty
5 Years
Features
Features
    Designed for larger hydronic heating applications, the "CX" series boilers offer many new features. Available in many voltages and capacities, the temperature sensing, relay staging and vessel configuration offer quiet operation, minimal relay cycling, consistent temperature output and most of all product reliability. More experienced installers use this boiler to avoid the extra cost of the above. As part of the EB-CX Commercial Electric Boiler Series, the hot water electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money.
  • Electro Industries EB-CX-18-48 Features
  • Controls and control wiring terminals.
  • LED indicator lights.
  • DC Power Relays.
  • Circulator switching relay - 10-amp maximum.
  • Thermostat or end switch connection (R and W).
  • Load management control provisions.
  • Heavy duty sheet metal enclosure.
  • Supply pressure/temperature gauge.
  • Safety relief valve (30 PSI).
  • Supply water sensing.
  • Temperature range 90 F to 185 F.
  • ASME/CSA listed.
  • Made in the USA.
  • Factory tested.
Specifications
General Information
Product Line
EB-CX
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Three Stage
Mount Type
Wall
Includes Pump
No
Assembly Type
Packaged
Performance
Heating Capacity
61434 BTU
Heating Capacity (kW)
18 kW
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
22 Amps
Dimensions
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
38 1/8 Inches
Product Width
22 Inches
Product Depth
20 9/16 Inches
Product Weight
225 Pounds
Shipping Weight
225 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heating Element Warranty
1 Year
Vessel Warranty
5 Years
Product Specs
+
Specifications
General Information
Product Line
EB-CX
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Three Stage
Mount Type
Wall
Includes Pump
No
Assembly Type
Packaged
Performance
Heating Capacity
61434 BTU
Heating Capacity (kW)
18 kW
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
22 Amps
Dimensions
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
38 1/8 Inches
Product Width
22 Inches
Product Depth
20 9/16 Inches
Product Weight
225 Pounds
Shipping Weight
225 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heating Element Warranty
1 Year
Vessel Warranty
5 Years
