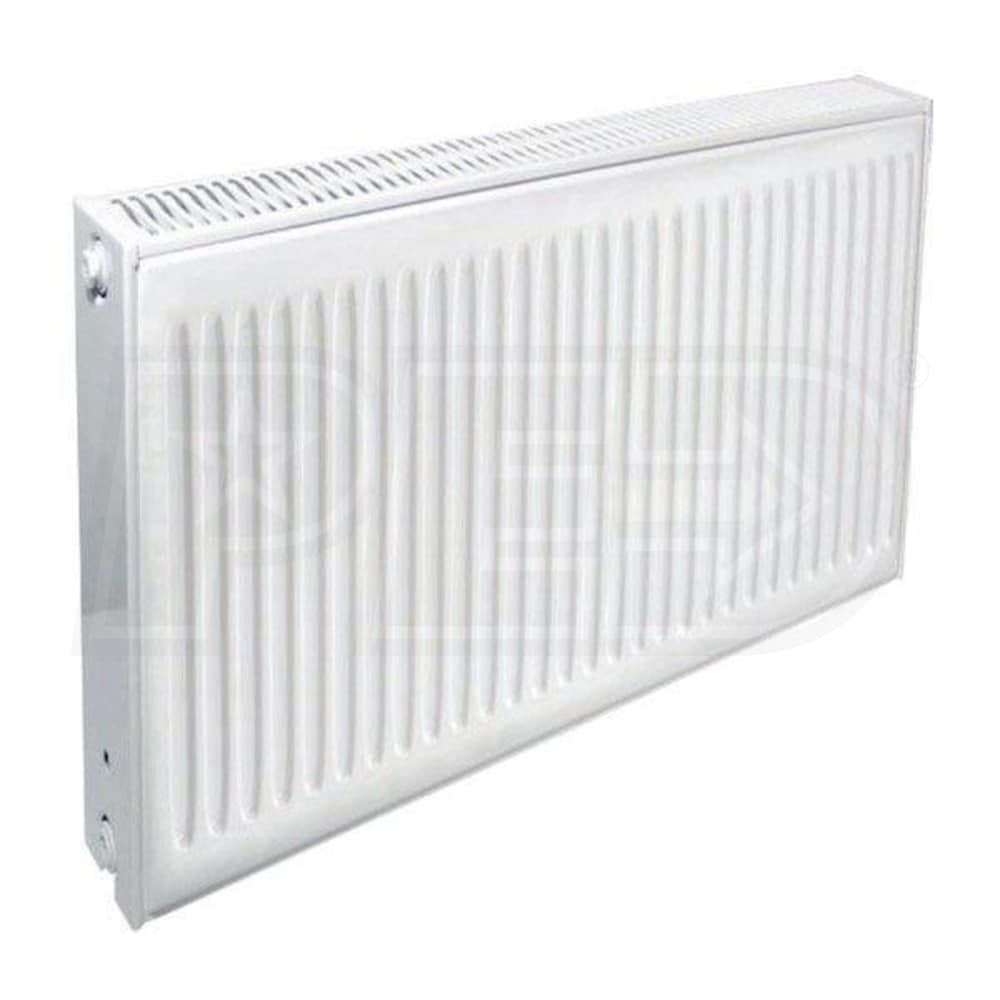

Ecostyle - 7,587 BTU - Hydronic Panel Radiator - 24"H x 40"W - White
Ecostyle - 7,587 BTU - Hydronic Panel Radiator - 24"H x 40"W - White
+
Share This Product
-
Product Description
-
33Reviews
-
9Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Perfect For Any System
- You'll find that the B-24.40 ECO is an excellent addition to any system. Ecostyle radiators are compatible with low and high water temperature systems and feature a flow-regulating valve which affords you individual control over each unit.
- Efficient Heating
- The Ecostyle B-24.40 ECO contains less water than traditional cast iron radiators. This allows the B-24.40 ECO to begin delivering heat more quickly. The large convector plates make sure this heat is radiated in an efficient manner.
- Radiant Heat
- With a heating capacity of 7,587 BTU, the B-24.40 ECO produces both convective heat and radiant heat. Radiant heat makes your room comfortable more quickly by heating people and objects in the room, not just the air.
- Simple Installation
- The Ecostyle B-24.40 ECO utilizes clamp mounting brackets, which are included with the product. This means that you can install and remove it easily.
- Attractive and Durable
- The B-24.40 ECO is an attractive addition to your home. It has a minimal profile and an enamel finish to discourage scratches and corrosion.
- Flexible Connection Options
- With several connection options, Ecostyle Plus radiators are able to adapted for a variety of installation requirements.
- Product Includes
- (2) Clamp Brackets
- (1) Flow Regulating Valve Insert
- (1) Air Vent
- (2) Installed Blind Plugs
The Ecostyle line features a wide array of sizes and heat outputs to meet whatever heating needs you may have. This radiator, the B-24.40 ECO, measures 24" tall by 40" wide, features a beautiful Italian design, and provides both radiant and convective heat for maximum efficiency and minimal cold spots. The Ecostyle B-24.40 ECO has an enamel finish over steel to ensure that it will stay beautiful for years. Not only is it easy to install and sub-zone, but its flow-regulating valve allows for individual radiator control.
Product Note
Please see the Installation Manual under the Manuals tab for applicable piping options. Ecostyle radiators do not come with the fittings necessary for installation. These fittings are sold separately and differ depending on the installation requirements. See our Ecostyle Radiator Buying Guide under the How-To Articles tab for details on available fittings for your application.
Specifications
General Information
Type
Panel
Product Line
Ecostyle
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Connection Type
BSP
Material
Steel
UPC
8023585213254
Performance
Heating Capacity
7587 BTU
Heating BTU
8000
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
24 Inches
Product Width
40 Inches
Product Depth
4 Inches
Product Weight
74 Pounds
Certifications
ISO Certified
Yes
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Features
Features
- Perfect For Any System
- You'll find that the B-24.40 ECO is an excellent addition to any system. Ecostyle radiators are compatible with low and high water temperature systems and feature a flow-regulating valve which affords you individual control over each unit.
- Efficient Heating
- The Ecostyle B-24.40 ECO contains less water than traditional cast iron radiators. This allows the B-24.40 ECO to begin delivering heat more quickly. The large convector plates make sure this heat is radiated in an efficient manner.
- Radiant Heat
- With a heating capacity of 7,587 BTU, the B-24.40 ECO produces both convective heat and radiant heat. Radiant heat makes your room comfortable more quickly by heating people and objects in the room, not just the air.
- Simple Installation
- The Ecostyle B-24.40 ECO utilizes clamp mounting brackets, which are included with the product. This means that you can install and remove it easily.
- Attractive and Durable
- The B-24.40 ECO is an attractive addition to your home. It has a minimal profile and an enamel finish to discourage scratches and corrosion.
- Flexible Connection Options
- With several connection options, Ecostyle Plus radiators are able to adapted for a variety of installation requirements.
- Product Includes
- (2) Clamp Brackets
- (1) Flow Regulating Valve Insert
- (1) Air Vent
- (2) Installed Blind Plugs
The Ecostyle line features a wide array of sizes and heat outputs to meet whatever heating needs you may have. This radiator, the B-24.40 ECO, measures 24" tall by 40" wide, features a beautiful Italian design, and provides both radiant and convective heat for maximum efficiency and minimal cold spots. The Ecostyle B-24.40 ECO has an enamel finish over steel to ensure that it will stay beautiful for years. Not only is it easy to install and sub-zone, but its flow-regulating valve allows for individual radiator control.
Product Note
Please see the Installation Manual under the Manuals tab for applicable piping options. Ecostyle radiators do not come with the fittings necessary for installation. These fittings are sold separately and differ depending on the installation requirements. See our Ecostyle Radiator Buying Guide under the How-To Articles tab for details on available fittings for your application.
Specifications
General Information
Type
Panel
Product Line
Ecostyle
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Connection Type
BSP
Material
Steel
UPC
8023585213254
Performance
Heating Capacity
7587 BTU
Heating BTU
8000
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
24 Inches
Product Width
40 Inches
Product Depth
4 Inches
Product Weight
74 Pounds
Certifications
ISO Certified
Yes
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Product Specs
+−
Specifications
General Information
Type
Panel
Product Line
Ecostyle
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Connection Type
BSP
Material
Steel
UPC
8023585213254
Performance
Heating Capacity
7587 BTU
Heating BTU
8000
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
24 Inches
Product Width
40 Inches
Product Depth
4 Inches
Product Weight
74 Pounds
Certifications
ISO Certified
Yes
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Product Q&A
(9)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
Are these units self contained and therefore would not require covers? If that is the case, your supply and return lines would be exposed, right?
John
from West Virginia
August 16, 2016
Answer
Yes, these are self-contained radiators that will have an exposed supply and return on the radiator. They are designed for installation without anything covering them. They can be piped from the sides or the bottom. Ecostyle RV-8RADSNAP pipe covers are available for 1/2" pipe, to make your installation look cleaner.
+−
Can this unit can be installed with the plumbing line coming from the floor?
Kijana E.
from New York
July 13, 2016
Answer
Yes, all Ecostyle Panel Radiators we offer can be plumbed from the floor, either on the left or right side. Please see the Installation Manual for further details.
+−
Can PEX piping be used to connect to the boiler with this radiator?
Douglas L.
from Pennsylvania
May 23, 2016
Answer
You can absolutely use PEX to connect the Ecostyle radiator to your boiler. However, you will need to purchase the appropriate adapters and fittings to make the connection from the European thread on the radiator to your PEX. Details on the available fittings can be found in our Ecostyle Radiator Buying Guide.
+−
Will this work with a radiant floor exchanger that is not a boiler? Will it work at low temp 140 rather than 180? That may change what system I go with. I want to mix radiators upper floor with radiant floor application for main level.
Dominique
from Montana
January 08, 2016
Answer
The Ecostyle radiators will work in almost any closed loop hot water system regardless of the heat source. You can absolutely use a lower water temperature, but the heat output from the radiator will be reduced. You can find a detailed chart of the correction factors for different water temperatures on page 7 of the installation manual.
+−
Is it possible to hang these radiators upside down and do a supply from the top?
Brian
from New York
December 23, 2015
Answer
The Ecostyle radiators must be installed level with the connections at the bottom. If you don't mind bypassing the flow control valve, the side connections can be used to connect the radiator. Details on alternate connection options can be found in the manual on page 5.
+−
I cannot tell from the manual whether this unit hangs on wall or if stands on floor with "feet"?
Ricky
from Indiana
December 18, 2015
Answer
The Ecostyle radiators are wall hung. Brackets and hardware needed to hang the radiator are included with each unit.
+−
How do you bleed an Ecostyle panel radiator?
Mark
from Texas
December 18, 2015
Answer
On the side of the radiator opposite the flow control valve and bottom piping connections, you will find the air bleed valve. After opening the system fill valve, open the bleed valve by turning the central screw counter-clockwise with a small wrench, flat head screwdriver, or radiator key. You will soon begin to hear and feel air rushing out of the radiator. Be prepared to shut the air bleed valve quickly by turning the screw clockwise. Once the air has escaped, water will begin to flow through escape hole.
+−
Can these be used with steam boilers?
Victor
from New York
October 14, 2015
Answer
Ecostyle radiators are designed for use with hot water boilers only. You can view our selection of steam radiators here: Steam Panel Radiators.
+−
I have an old water radiator, can I use this product to replace it? On my old radiator water enters at one end and exists at the other.
Chris
from New Jersey
September 10, 2015
Answer
Yes, you can use an Ecostyle Panel Radiator to replace your existing hot water radiator. You'll want to make sure to choose an appropriate size based both on dimensions and heat output (BTUs).
