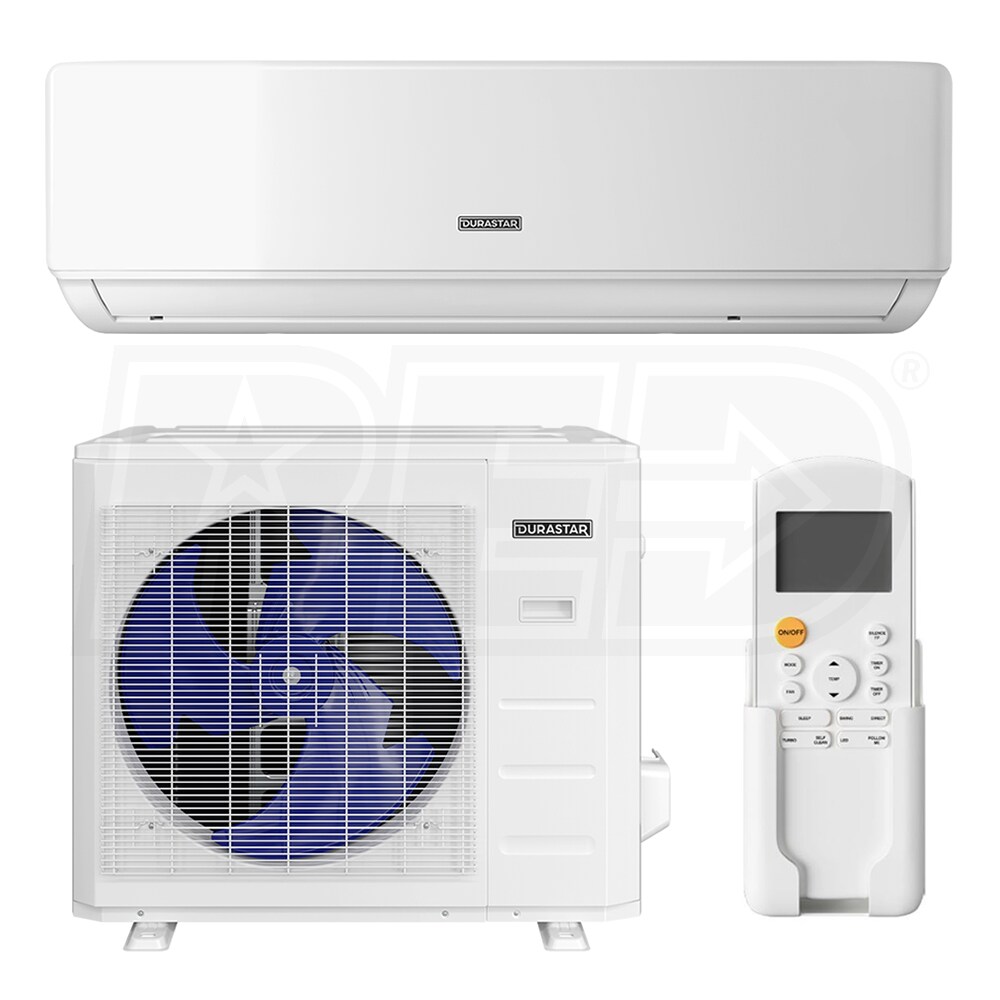

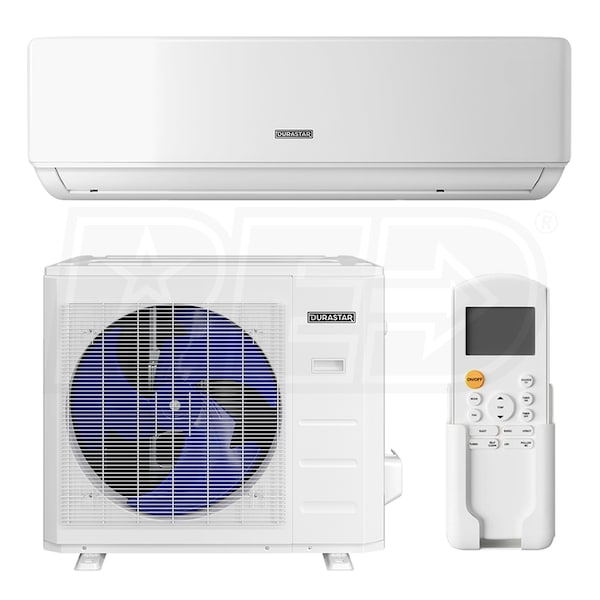

Durastar - 24k BTU Cooling + Heating - Wall Mounted Air Conditioning System - 20.5 SEER

Model:

DR1H24W24

Write a Review
$1,358.50
Was $1,430.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$227 / Month
Suggested monthly payments with 6 month financing.
Durastar - 24k BTU Cooling + Heating - Wall Mounted Air Conditioning System - 20.5 SEER
Durastar - 24k BTU Cooling + Heating - Wall Mounted Air Conditioning System - 20.5 SEER
Model: DR1H24W24
$1,358.50
Was $1,430.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs
  • Durastar Wall Mounted Air Conditioning System Features
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Product Includes
    • (1) Durastar - 24k BTU - Single Zone Outdoor Unit (DRA1U24S1A)
    • (1) Durastar - 24k BTU - Wall Mounted - For Multi or Single Zone (DRAW24F1A)
    Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Durastar - 24k BTU - Single Zone Outdoor Unit (DRA1U24S1A)
  • (1) Durastar - 24k BTU - Wall Mounted - For Multi or Single Zone (DRAW24F1A)
DR1H24W24
specs product image PID-113048
General Information
Type
Wall Mounted
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
25000 BTU
Heating Capacity
27500 BTU
SEER Learn More
20.5
EER Learn More
12.5
HSPF Learn More
10.0
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-13 F
Minimum Outdoor Temperature for Cooling
5 F
Electrical Data
Voltage
208/233 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
172.1 Pounds
Shipping Weight
190.1 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
206369518
DRA1U24S1A
General Information
Type
Outdoor Condenser
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Cooling BTU
24000
Heating BTU
25000
SEER Learn More
21.5
EER Learn More
12.5
HSPF Learn More
11
Maximum Air Flow
2235 CFM
Maximum Sound Level Learn More
61 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
31 7/8 Inches
Product Width
37 1/4 Inches
Product Depth
16 1/8 Inches
Product Weight
141.1 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
10 Years
DRAW24F1A
General Information
Type
Wall Mounted
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Remote Control
Included
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Remote Included
Yes
Performance
Cooling BTU
24000
Heating BTU
25000
Moisture Removal
5.5 Pints/Hour
Maximum Air Flow
618 CFM
Minimum Air Flow
325 CFM
Minimum Sound Level
33 dB
Maximum Sound Level Learn More
47.5 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
13 3/16 Inches
Product Width
42 1/2 Inches
Product Depth
8 7/8 Inches
Product Weight
31 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Learn More
10 Years
