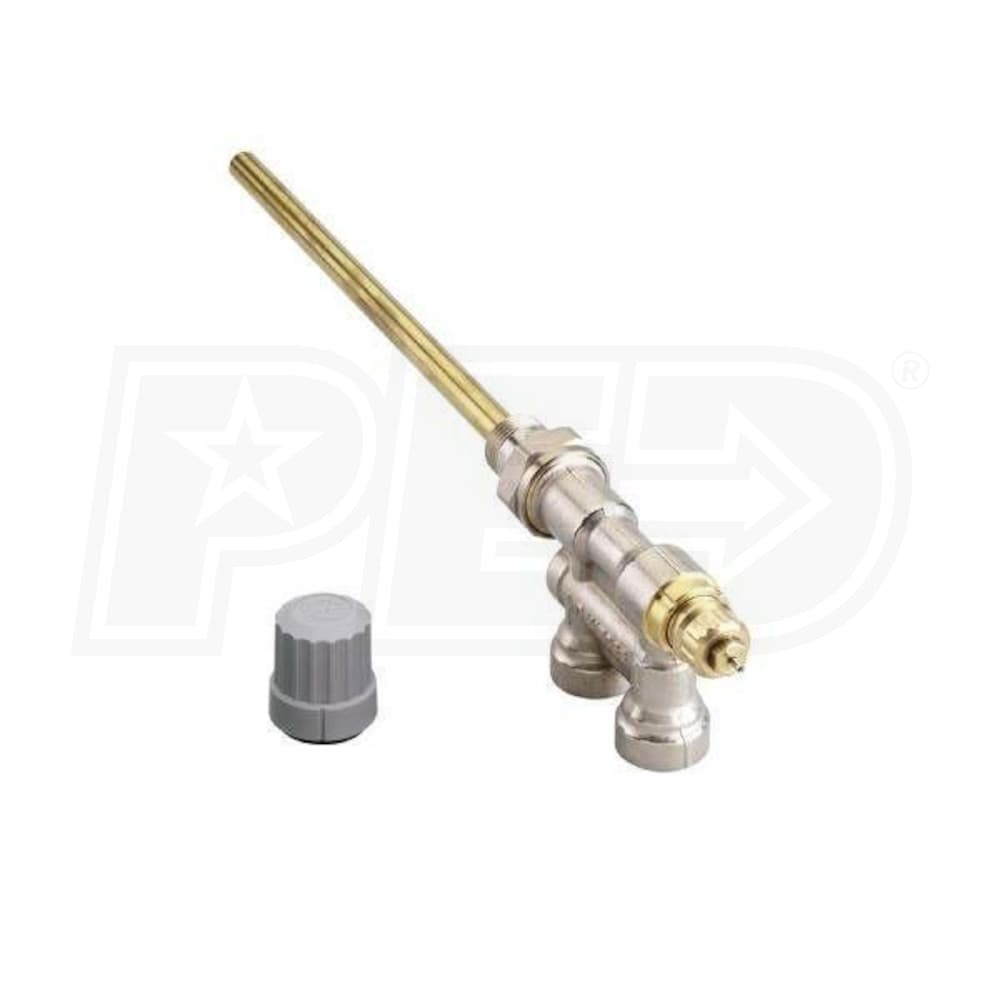

Danfoss RA2000 Two Pipe Systems Conversion Lance Valve, RP 1/2" Internal Straight Thread x 1/2" External Thread, RA15/6T System
Model: 013G3215
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$51.30
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The RA15/TB is a special conversion valve that allows a single connection point- at the side of the radiator- to serve as both the supply and return for a hot water based system. One such application of the conversion valve is the transition of a cast iron 1-pipe steam radiator to hot water. With the conversion valve the system can be transformed to a conventional one pipe hot water (diverter) or two pipe hot water systems. The RA15/6TB valve is designed for conventional two pipe systems where each radiator is individually supplied. A traditional supply and return manifold can be utilized when piping the RA15/6TB into the system. With the installation of the RA15/6TB valves any RA2000 thermostatic operator or TWA electronic actuator can be mounted, providing individual temperature regulation and controlled comfort for the room.
  • Danfoss 013G3215 Features
  • Compact design
  • Minimized installation area
  • Thermostatic operator or electric actuator control of valve are available
  • Single entry valve connection to radiator
  • Valve assembly for 1-pipe steam conversion to hot water
  • Alternative method of piping for fin tube or baseboard addition
Specifications
General Information
Product Line
RA2000
Valve Type
Thermostatic
Material
Ms 58 Brass
Performance
CV Value
1.17
Maximum Operating Temperature
248 F
Dimensions
End 1 Connection Type
RP internal
End 1 Connection Size
1/2 Inch
End 2 Connection Type
RP internal
End 2 Connection Size
1/2 Inch
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    The RA15/TB is a special conversion valve that allows a single connection point- at the side of the radiator- to serve as both the supply and return for a hot water based system. One such application of the conversion valve is the transition of a cast iron 1-pipe steam radiator to hot water. With the conversion valve the system can be transformed to a conventional one pipe hot water (diverter) or two pipe hot water systems. The RA15/6TB valve is designed for conventional two pipe systems where each radiator is individually supplied. A traditional supply and return manifold can be utilized when piping the RA15/6TB into the system. With the installation of the RA15/6TB valves any RA2000 thermostatic operator or TWA electronic actuator can be mounted, providing individual temperature regulation and controlled comfort for the room.
  • Danfoss 013G3215 Features
  • Compact design
  • Minimized installation area
  • Thermostatic operator or electric actuator control of valve are available
  • Single entry valve connection to radiator
  • Valve assembly for 1-pipe steam conversion to hot water
  • Alternative method of piping for fin tube or baseboard addition
