Danfoss 013G0140
Danfoss 013G0140
Hover to zoom
1 Of 5

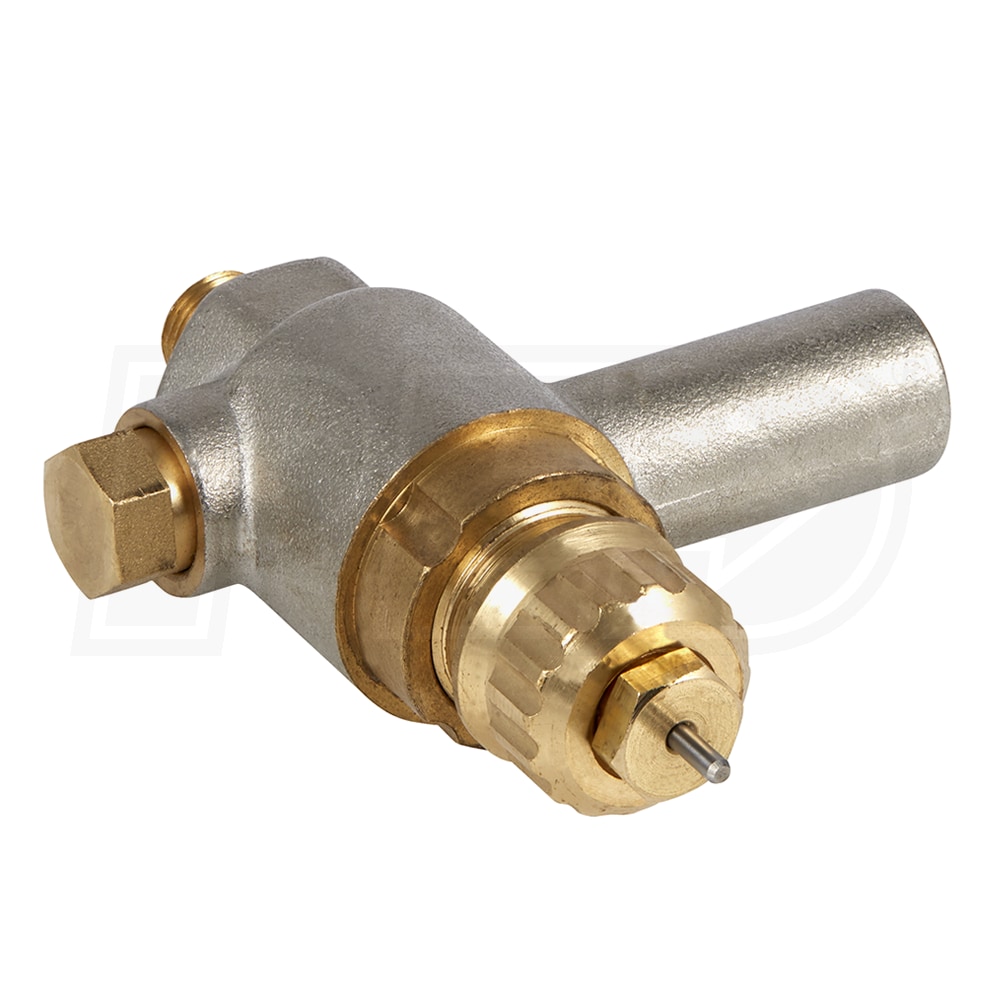

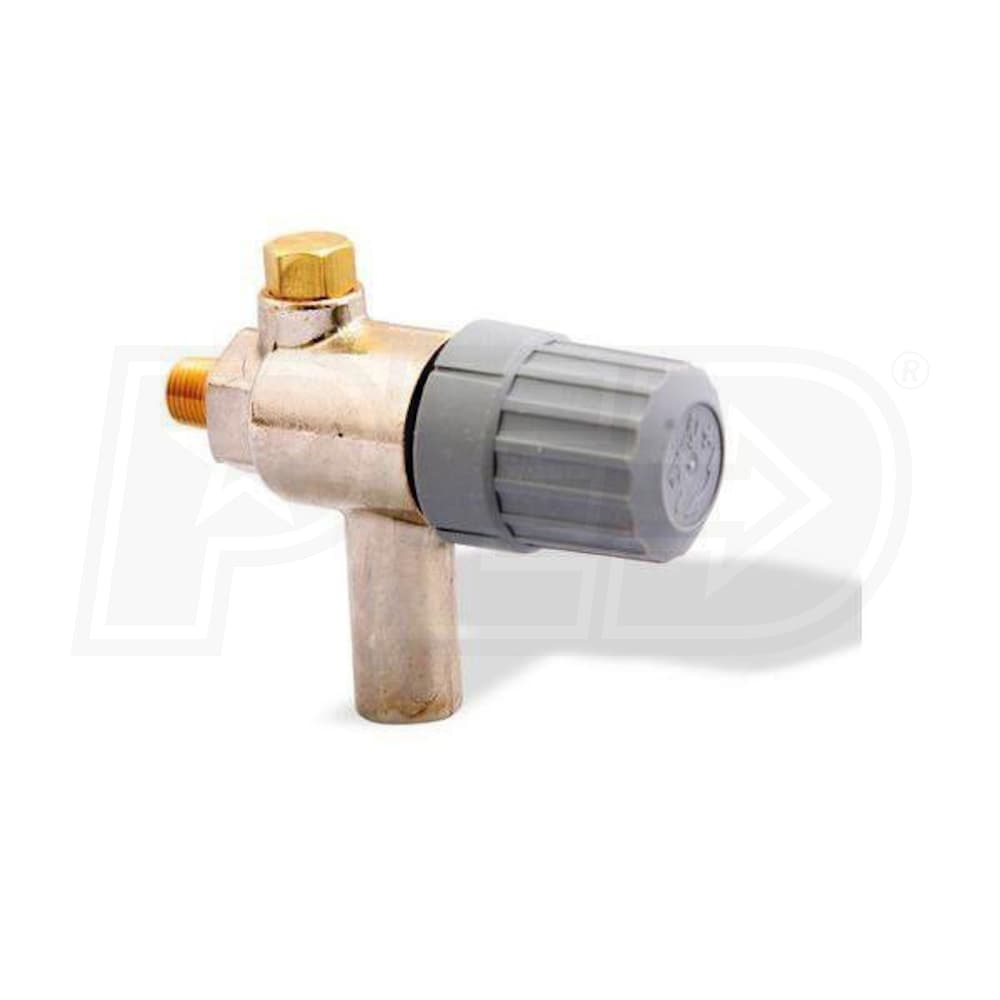

Danfoss RA2000 Thermostatic Radiator Valve, 1/8" MPT x FTP, 1 Pipe Low Pressure Steam Systems
Model: 013G0140
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$63.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    RA 2000 one pipe steam (1PS) thermostatic radiator valve is a three part assembly consisting of a valve body (013G0140), air vent (013L8011) and thermostatic operator (air vent and thermostatic operators are sold separately). The 1PS thermostatic radiator valve assembly is designed to provide accurate temperature control and quiet operation on all "non-vacuum" low pressure (max. 15 psig) one pipe steam heating systems. A temperature change around the thermostatic operator's sensor results in a modulating action of air venting from the radiator or convector. When the thermostatic operator calls for heat, steam enters the radiator and pushes air out through the vent. When the setting temperature is reached, the 1PS valve will be closed and no further air venting takes place. The venting action occurs during each system (boiler) on-cycle only when heat is required. Air will re-enter the radiator during the system off-cycle via a patented "across the seat" vacuum breaker. This eliminates condensate build-up and allows natural system aspiration to occur.
  • Danfoss 013G0140 Features
  • The RA 2000 1PS one-pipe steam thermostatic radiator valve provides accurate temperature control and quite operation
  • The movement of air across the thermostatic operator effects the modulation control in regulating the venting of air from the radiator or convector
  • Based on the set temperature on the operator, the 1PS regulates the amount of steam allowed into the emitter by controlling the amount of air allowed to vent out
  • The venting action occurs during each system (boiler) on-cycle only when heat is required. Air will re-enter the system during the boiler off-cycle via a patented "across the seat"
Specifications
General Information
Product Line
RA2000
Valve Type
Thermostatic
Performance
Maximum Operating Temperature
250 F
Dimensions
End 1 Connection Type
MNPT
End 1 Connection Size
1/8 Inch
End 2 Connection Type
FNPT
End 2 Connection Size
1/8 Inch
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    RA 2000 one pipe steam (1PS) thermostatic radiator valve is a three part assembly consisting of a valve body (013G0140), air vent (013L8011) and thermostatic operator (air vent and thermostatic operators are sold separately). The 1PS thermostatic radiator valve assembly is designed to provide accurate temperature control and quiet operation on all "non-vacuum" low pressure (max. 15 psig) one pipe steam heating systems. A temperature change around the thermostatic operator's sensor results in a modulating action of air venting from the radiator or convector. When the thermostatic operator calls for heat, steam enters the radiator and pushes air out through the vent. When the setting temperature is reached, the 1PS valve will be closed and no further air venting takes place. The venting action occurs during each system (boiler) on-cycle only when heat is required. Air will re-enter the radiator during the system off-cycle via a patented "across the seat" vacuum breaker. This eliminates condensate build-up and allows natural system aspiration to occur.
  • Danfoss 013G0140 Features
  • The RA 2000 1PS one-pipe steam thermostatic radiator valve provides accurate temperature control and quite operation
  • The movement of air across the thermostatic operator effects the modulation control in regulating the venting of air from the radiator or convector
  • Based on the set temperature on the operator, the 1PS regulates the amount of steam allowed into the emitter by controlling the amount of air allowed to vent out
  • The venting action occurs during each system (boiler) on-cycle only when heat is required. Air will re-enter the system during the boiler off-cycle via a patented "across the seat"
Specifications
General Information
Product Line
RA2000
Valve Type
Thermostatic
Performance
Maximum Operating Temperature
250 F
Dimensions
End 1 Connection Type
MNPT
End 1 Connection Size
1/8 Inch
End 2 Connection Type
FNPT
End 2 Connection Size
1/8 Inch
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
RA2000
Valve Type
Thermostatic
Performance
Maximum Operating Temperature
250 F
Dimensions
End 1 Connection Type
MNPT
End 1 Connection Size
1/8 Inch
End 2 Connection Type
FNPT
End 2 Connection Size
1/8 Inch
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Is this product a complete solution? As I read, I'm inferring that this requires an additional air vent to be a functioning solution.
Nat
from New York
May 06, 2016
Answer
Yes, Danfoss model 013G0140 is just the thermostatic valve itself. You would need an air vent as well as an additional thermostatic dial for automatic temperature control.
Air vent - Danfoss 013L8011
Dial - Danfoss 013G8250.
