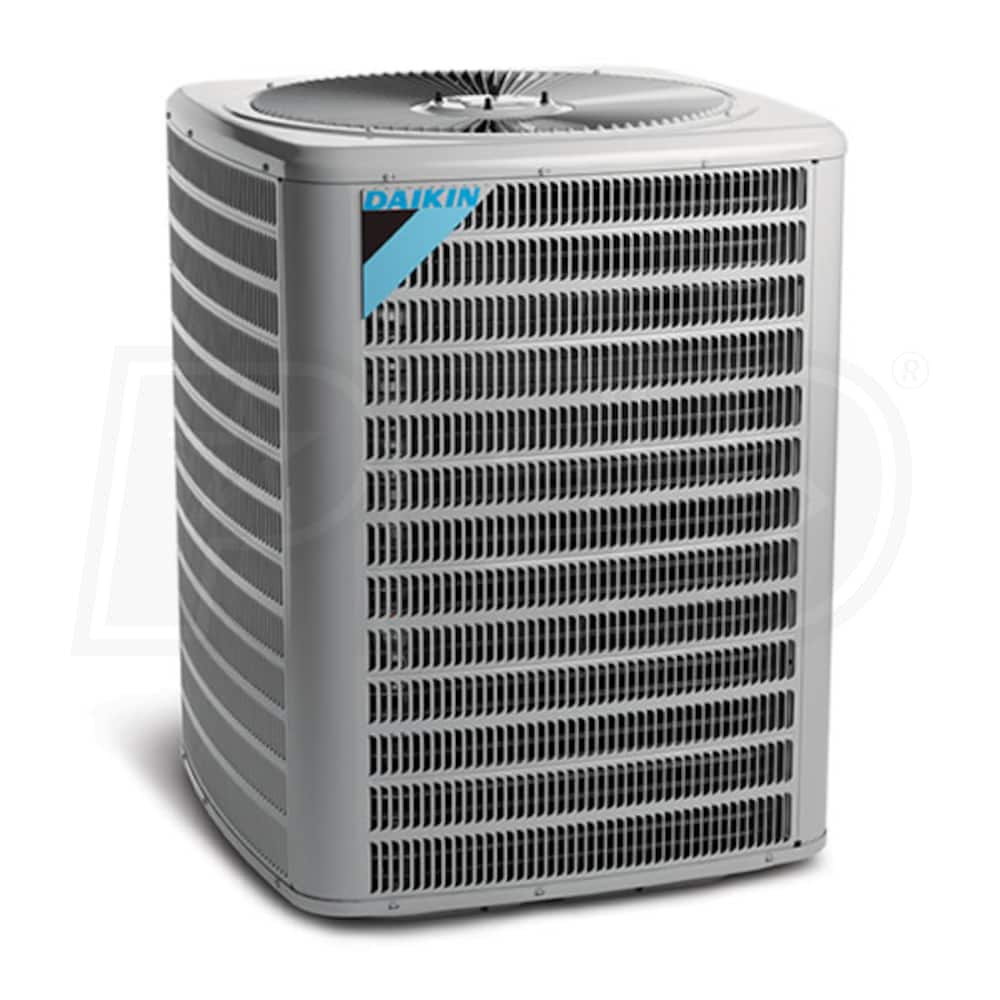

Daikin DZ14 - 3.0 Ton - Commercial Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - 208-230/3/60
Model:
DZ14SA0363
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Advanced Coil Design
- The condenser coil of this heat pump is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
- High-Efficiency Scroll Compressor
- This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
- Secure Cabinet
- The cabinet of the DZ14 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
- Defrost Control
- The DZ14 features a time-initiated, temperature-terminated defrost control to reliably prevent damage to the unit.
- Filter Drier
- A filter drier is installed in the liquid line of this heat pump. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
- Quiet Comfort
- The louvered top and three-bladed condenser fan of the DZ14 were designed to reduce noise levels without compromising performance.
Daikin's DZ14 commercial heat pump system uses a high-performance compressor along with a high-efficiency coil design to provide powerful and reliable heating and cooling. The DZ14 features a heavy-gauge, galvanized steel casing with a louvered metal guard to protect itself from the elements all year-round. An elevated base pan allows for effective water drainage while also keeping the coil away from debris that can collect inside the unit. Add efficient heating and cooling to your household today with the Daikin DZ14 heat pump system.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
DZ14SA0363
Overview
Product Category
Heat Pump
General Information
Type
Heat Pump Condenser
Product Line
DZ14
Product Category
Heat Pump
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
34600 BTU
Heating Capacity
32800 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
14.1 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
32 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
232 Pounds
Shipping Weight
232 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
