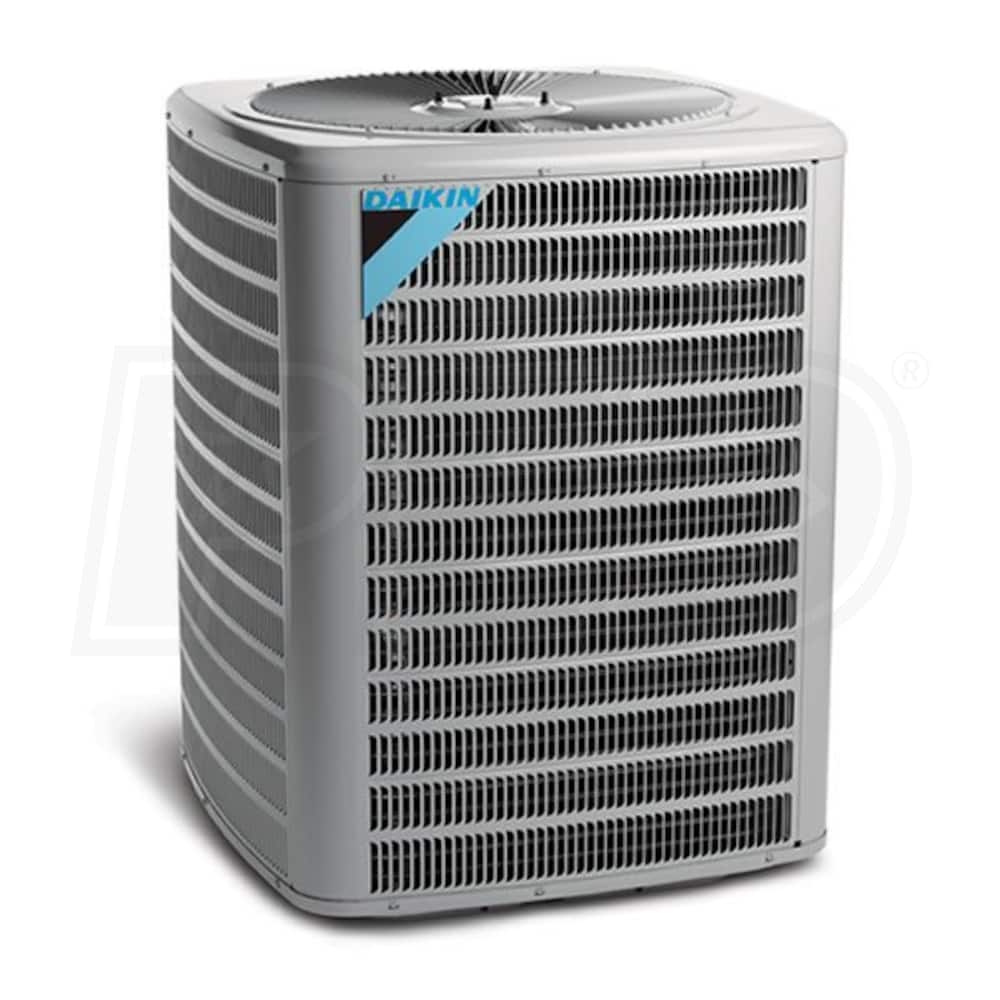

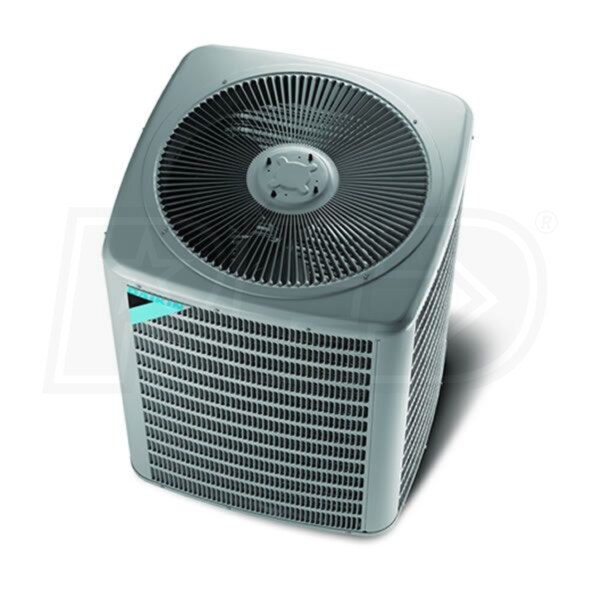

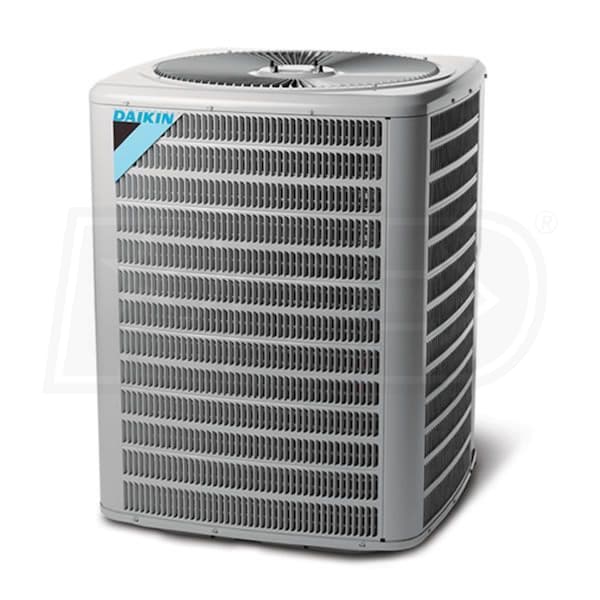

Daikin 7-1/2 Ton 11.2 EER Commercial Air Conditioner Condenser, 230V

Model:

DX11TA0903

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Daikin 7-1/2 Ton 11.2 EER Commercial Air Conditioner Condenser, 230V
Daikin 7-1/2 Ton 11.2 EER Commercial Air Conditioner Condenser, 230V
Model: DX11TA0903
Product Discontinued
Specifications
Reviews
How-To Articles
Manuals

Specifications

DX11TA0903
specs product image PID-83638
Overview
Product Category
Air Conditioning Condensers
UPC
663051566378
General Information
Type
Condenser
Product Line
DX11TA
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
90000 BTU
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.2
IEER
13
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
84 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
40 Amps
Recommended Breaker Size
60 Amps
Dimensions
Suction Connection Size
1 3/8 Inches
Liquid Connection Size
5/8 Inch
Product Height
41 1/2 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Shipping Weight
325 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Limited Years
