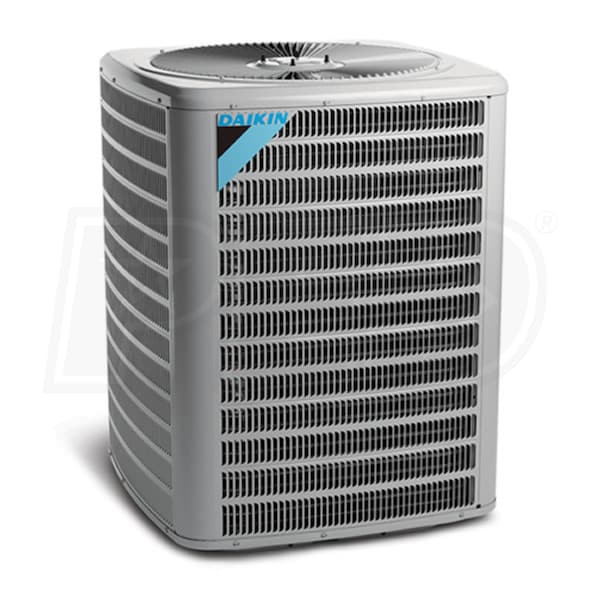

Daikin DX11 - 10.0 Ton - Commercial Air Conditioner - 11.2 EER - Single-Stage - R-410A Refrigerant - 208-230/3/60

Model:

DX11SA1203

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Daikin DX11 - 10.0 Ton - Commercial Air Conditioner - 11.2 EER - Single-Stage - R-410A Refrigerant - 208-230/3/60
Daikin DX11 - 10.0 Ton - Commercial Air Conditioner - 11.2 EER - Single-Stage - R-410A Refrigerant - 208-230/3/60
Model: DX11SA1203
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Daikin's DX11 commercial air conditioner uses a high-performance compressor along with a high-efficiency coil design to provide powerful and reliable cooling comfort. The DX11 features a heavy-gauge, galvanized steel casing with a louvered metal guard to protect itself from the elements all year-round. An elevated base pan allows for effective water drainage while also keeping the coil away from debris that can collect inside the unit. Add efficient cooling to your household today with the Daikin DX11 air conditioning system.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Secure Cabinet
  • The cabinet of the DX11 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • Quiet Comfort
  • The louvered top and three-bladed condenser fan of the DX11 were designed to reduce noise levels without compromising performance.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

DX11SA1203
specs product image PID-83629
General Information
Type
Condenser
Product Line
DX11
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
10.0 Tons
Cooling BTU
120000
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.2
IEER
11.5
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
84 dB
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
43.2 Amps
Recommended Breaker Size
70 Amps
Dimensions
Suction Connection Size
1 3/8 Inches
Liquid Connection Size
5/8 Inch
Product Height
41 1/2 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
334 Pounds
Shipping Weight
334 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
