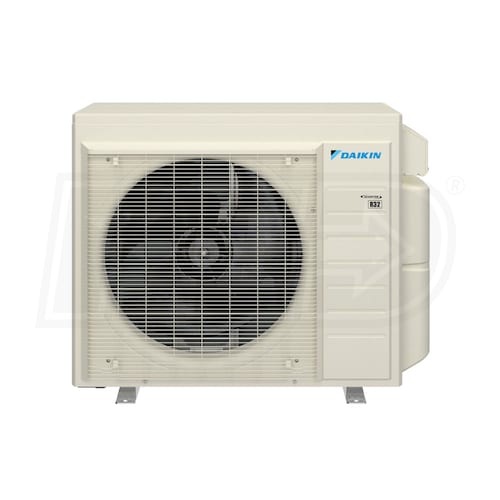

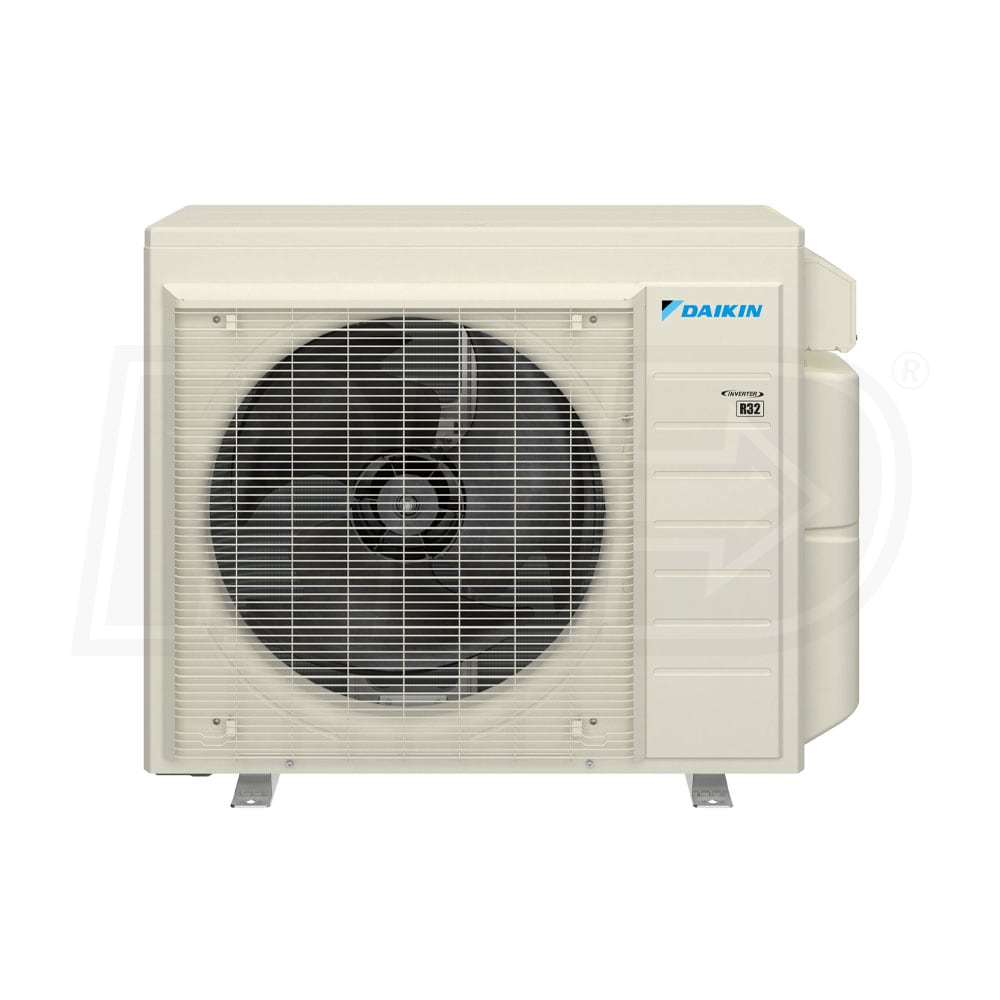

Daikin Outdoor Condenser - 2 Zones - 18k BTU - R-32

Model:

2MXM18AVJU9

Write A Review
$2,597.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
Daikin Outdoor Condenser - 2 Zones - 18k BTU - R-32
Daikin Outdoor Condenser - 2 Zones - 18k BTU - R-32
Model: 2MXM18AVJU9
$2,597.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The 2MXM18AVJU9 condenser supports two indoor units operating simultaneously, allowing you to build the ideal system type to fit your home's specific needs. A broad range of accessories are available to add to your system as well, which when combined with Daikin's extensive experience with building efficient units provides a solution to any home's heating and cooling needs.
  • Smart Inverter Technology
  • The variable-speed inverter compressor helps to minimize temperature fluctuations along with providing continuous cooling and heating comfort.
  • Energy Efficient
  • Daikin MXM condensers are highly efficient all year round and reduce operating costs compared to conventional systems.
  • Quiet Operation
  • Able to reduce sound levels by up to three decibels, the Daikin MXM condenser provides quieter operation when needed.
  • Design Your System from the Ground Up
  • The Daikin MXM outdoor condenser is compatible with wall mounted, concealed duct, floor mounted, and ceiling cassette indoor units, allowing you to mix and match unit types to design a system that perfectly matches your home's needs.
  • Low Ambient Cooling
  • MXM condensers will continue to operate optimally even in colder climates. With an operational cooling range down to 14°F, and a heating range down to 5°F, the MXM can provide heating or cooling in any environment.
  • Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires two compatible Daikin mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Base Pan Heater (Optional) - The base pan heater prevents ice from building up on the outdoor unit. The base pan heater is required for heating operation down to -13°F.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

2MXM18AVJU9
specs product image PID-175790
General Information
Type
Outdoor Condenser
Product Line
MXM
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-32
Installation Location
Outdoor
Performance
Cooling BTU
18000
Cooling Capacity
17200 BTU
Heating Capacity
18500 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
14 Amps
Dimensions
Maximum Line Length
164 Feet
Condensate Drain Size
5/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
1/2 Inch
Product Height
29 1/2 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
127 Pounds
Shipping Weight
135 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
