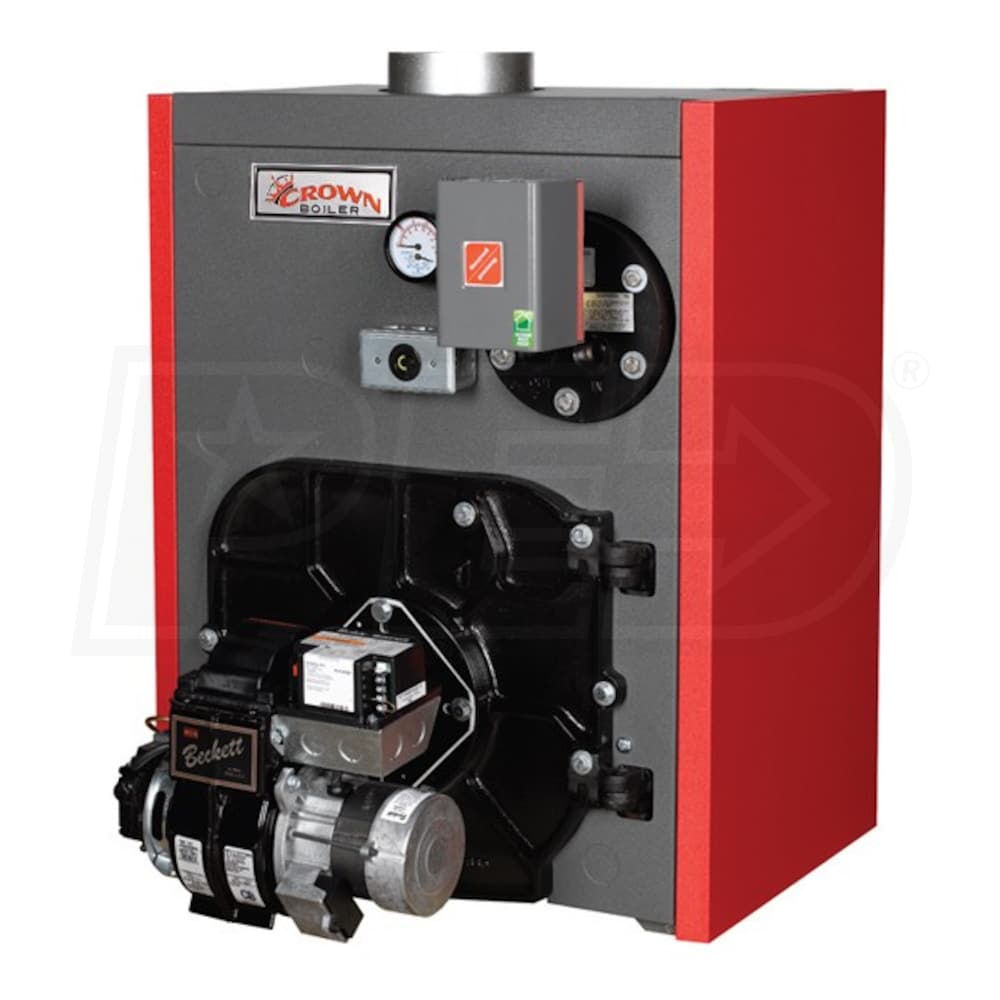

Crown Boiler TWZ200 - 241K BTU - 84.7% AFUE - Hot Water Oil Boiler - Chimney Vent

Name: Crown Boiler TWZ200 - 241K BTU - 84.7% AFUE - Hot Water Oil Boiler - Chimney Vent
Brand: Crown Boiler Co.
SKU: 47642
Price: 3493.00 USD
Availability: OutOfStock

Model:

TWZ200BOLT1PSU

Write A Review

Product Discontinued

Sorry, this product is no longer available.

Try this product instead

Crown Boiler Tobago - 241K BTU - 84.7% AFUE - Hot Water Oil Boiler - Chimney Vent

Model:

TWZ200BOLT4PSU

$3,736.00

Product Discontinued

Crown Boiler TWZ200 - 241K BTU - 84.7% AFUE - Hot Water Oil Boiler - Chimney Vent

Model: TWZ200BOLT1PSU

Was $6,986.00

Product Discontinued

Accessories

Features

Specifications

Reviews

How-To Articles

Manuals

Expert Recommended Accessories Selected by Bob, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

The Tobago boiler by crown is a highly efficient, long lasting oil fired boiler with a wide variety of configuration options available. At its core is a wet leg cast iron heat exchanger, a material that has proven reliable in thousands of installations all across the globe. The boiler's burner door swings open for easy access and maintenance, and since all connections are on the front and top of the boiler, the unit itself can be fit into tight utility space corners and nooks without an issue. This Tobago comes packaged with a Beckett burner, a brand renowned for its reliability and consistent combustion over long periods of time.

Wet Base Cast Iron Heat Exchanger
The Tobago uses a wet base, cast iron heat exchanger. Cast iron optimizes heat transfer efficiency and is durable enough to provide decades of reliable operation.
Easy-Access Burner Door
The Tobago line of oil fired boilers features a cast iron front-side burner door for easy burner access. This makes any required maintenance much easier, and reduces the need to move equipment in the event that service is required.
Included Beckett AFG Burner
This Tobago boiler comes with a Beckett AFG oil burner included. Beckett is a well known industry burner brand whose burners have proven reliable and efficient in thousands of boiler installs.
Product Includes
Tobago Oil Fired Boiler Shell
Beckett AFG Burner
Taco Circulation Pump

California residents see

Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

TWZ200BOLT1PSU

General Information

Product Line

Tobago

Medium

Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.

Hot Water

Heat Exchanger Material

Cast Iron

Fuel Type

To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.

Oil

Combustion Type

Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.

Conventional

Vent Type

Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.

Chimney Vent

DHW Production

DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.

Modulating/Staging

Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More

Single Stage

Mount Type

Floor

Maximum Altitude

2000 Feet

Includes Pump

Yes

Assembly Type

Packaged

Burner Model

Beckett AFG

Performance

AFUE

AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More

84.7 %

Input Rate

2.0 GPH

DOE Heating Capacity

Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.

241000 BTU

Net I=B=R Capacity

I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.

210000 BTU

Maximum Operating Pressure

50 PSI

Electrical Data

Voltage

120 Volts

Phase

Frequency

60 Hz

Dimensions

Flue Connection Size

8 Inches

Supply Connection

1 1/2 Inches

Return Connection

1 1/2 Inches

Product Height

31 5/8 Inches

Product Width

24 5/8 Inches

Product Depth

26 1/2 Inches

Product Weight

800 Pounds

Certifications

Country of Origin

United States

ETL Listed

Yes

AHRI Certified

Yes

AHRI Reference Number

2100224

Warranty Information

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

1 Year

Heat Exchanger Warranty

20 Years
