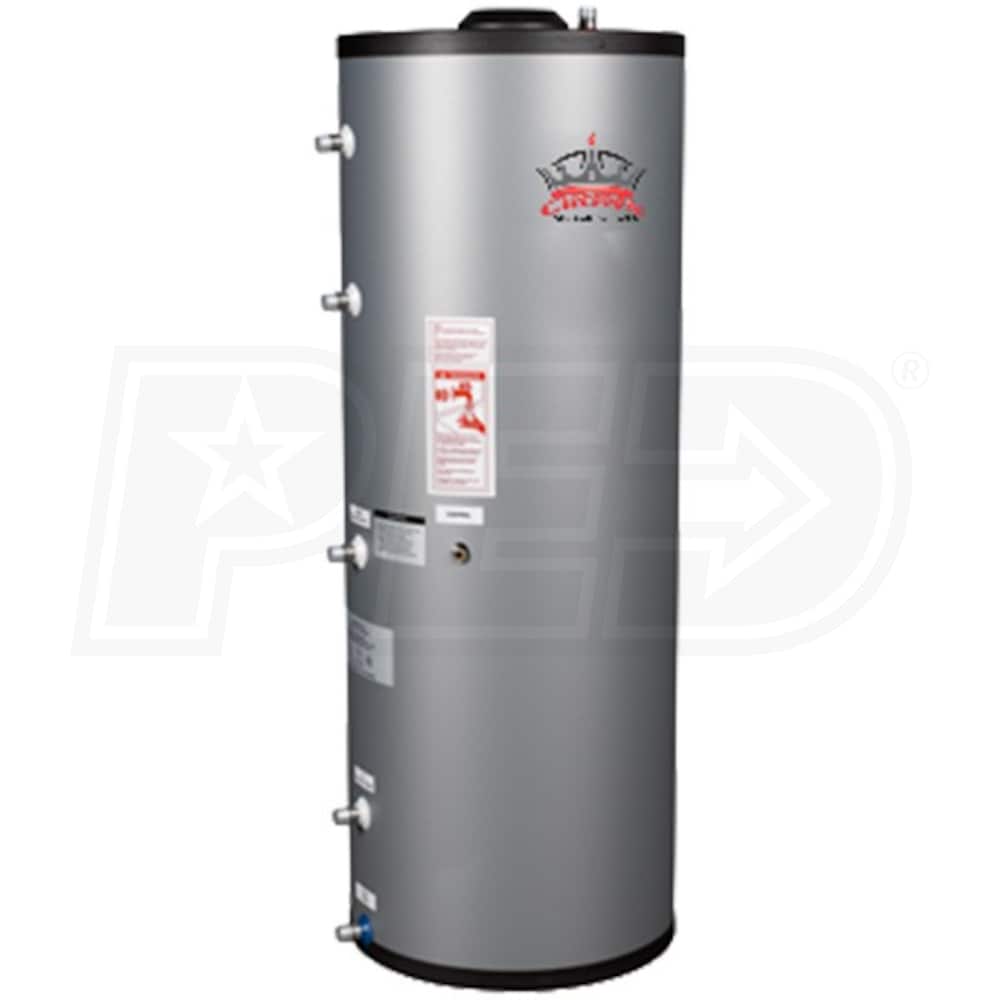

Crown Boiler Co. Mega-Stor - 116 Gallons - Solar Indirect Fired Water Heater - Vertical
Crown Boiler Co. Mega-Stor - 116 Gallons - Solar Indirect Fired Water Heater - Vertical
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Two Smooth-Surface Stainless Steel Coils
- The Mega-Stor solar line of indirect fired water heaters comes with two stainless steel coils that work in tandem, to ensure a constant supply of hot water.
- Rugged Stainless Steel Tank
- The outer shell of the Mega-Stor solar tank is constructed from high grade stainless steel, TIG welded and passivated for durability and longevity.
- Lifetime Warranty
- All Crown Mega-Stor water heaters include a limited lifetime warranty after registration.
The solar series of Crown's Mega-Stor indirect fired hot water heaters tie together your home's boiler and solar thermal system into one cohesive domestic hot water solution. The internal tank contains two separate stainless steel coils, which work together to provide your home with a steady stream of domestic hot water on demand. The tank is made from high grade 316L stainless steel, a high grade steel proven in thousands of high quality water heater installations across the globe. Combined with a high efficiency boiler and a good solar equipment setup, the solar Mega-Stor can reduce your monthly energy bills to an absolute minimum.
Specifications
General Information
Type
Indirect Water Heater
Product Line
Mega-Stor
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
2
Mount Type
Floor
Installation Location
Indoor
Material
Stainless Steel
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Storage Volume
116 Gallons
Cold Water Inlet
1 1/4 Inches
Hot Water Outlet
1 1/4 Inches
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Diameter
29 Inches
Product Height
67 Inches
Shipping Weight
210 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
8 Years
Features
Features
- Two Smooth-Surface Stainless Steel Coils
- The Mega-Stor solar line of indirect fired water heaters comes with two stainless steel coils that work in tandem, to ensure a constant supply of hot water.
- Rugged Stainless Steel Tank
- The outer shell of the Mega-Stor solar tank is constructed from high grade stainless steel, TIG welded and passivated for durability and longevity.
- Lifetime Warranty
- All Crown Mega-Stor water heaters include a limited lifetime warranty after registration.
The solar series of Crown's Mega-Stor indirect fired hot water heaters tie together your home's boiler and solar thermal system into one cohesive domestic hot water solution. The internal tank contains two separate stainless steel coils, which work together to provide your home with a steady stream of domestic hot water on demand. The tank is made from high grade 316L stainless steel, a high grade steel proven in thousands of high quality water heater installations across the globe. Combined with a high efficiency boiler and a good solar equipment setup, the solar Mega-Stor can reduce your monthly energy bills to an absolute minimum.
