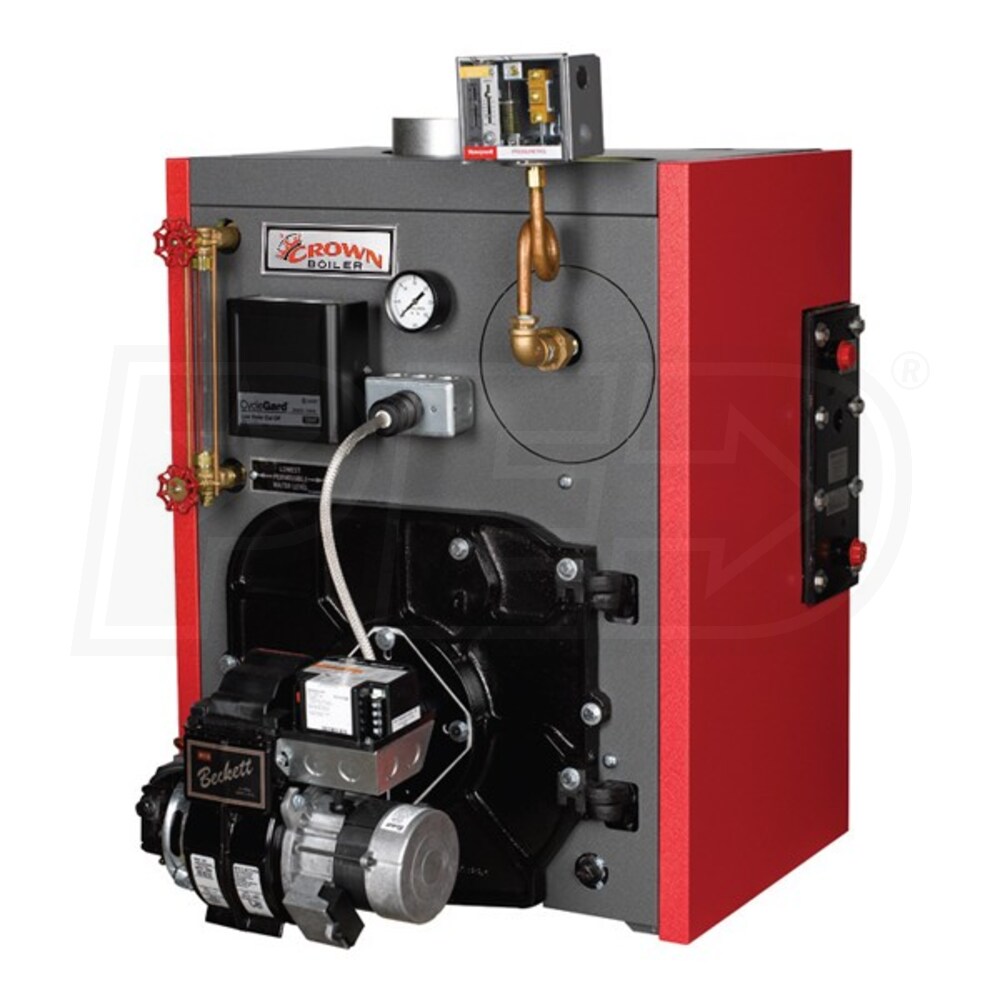

Crown Boiler Co. Kingston - Shorty Steam Boiler Shell - With DHW Coil - Chimney Vent - Up to 2,000 Foot Altitude
Model:
KSZ005LCC2SH
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
The Kingston line of boilers from Crown was designed from the ground up as a rock solid oil fired boiler for homes where venting can be accomplished through a chimney. This is a Kingston boiler shell that comes with the heat exchanger and all necessary piping connections, designed to be paired with a burner of your choosing. At its core is a rugged, wet-base cast iron heat exchanger. The wet-base design facilitates heat transfer between the heat exchanger's metal and the system fluid, increasing efficiency. An easy-access cast iron burner door makes all internal boiler surfaces easily accessible from the front, making routine maintenance and cleaning a breeze. Crown is well known in the heating and cooling industry for their boiler's reliability and long service life, and the Kingston line is no exception.
Product Features
Wet Base Cast Iron Heat Exchanger
The Kingston uses a wet base, cast iron heat exchanger. Cast iron optimizes heat transfer efficiency and is durable enough to provide decades of reliable operation.
Easy-Access Front-Opening Door
The Kingston burner orifice is located on a front opening burner door. All heating surfaces can be accessed for cleaning using this door, making cleaning and maintenance a breeze.
Included Domestic Hot Water Coil
This boiler shell comes with a tankless coil block, a pre-installed space for a tankless domestic hot water coil. The coil itself is purchased as a package with a burner, listed under the accessories tab.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
KSZ005LCC2SH
General Information
Product Line
Kingston
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Assembly Type
Semi-Packaged
Burner Model
Sold Separately
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
8 Inches
Supply Connection
3 Inches
Return Connection
1 1/2 Inches
Product Height
31 1/2 Inches
Product Width
24 1/2 Inches
Product Depth
27 3/8 Inches
Product Weight
765 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
12 Years
