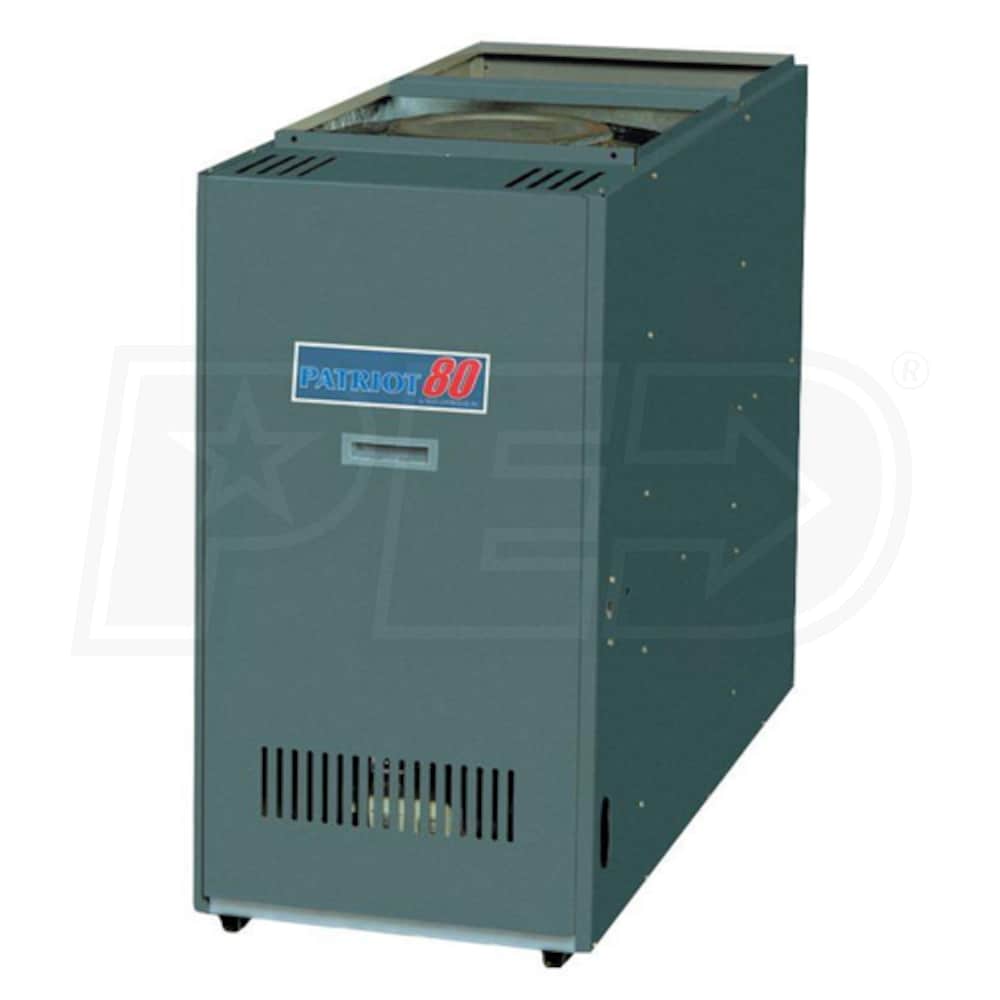

Comfort-Aire Patriot 80 Lowboy - 125k BTU - Oil Furnace - 83% AFUE

Comfort-Aire Patriot 80 Lowboy - 125k BTU - Oil Furnace - 83% AFUE
Our Price
Compare Prices
Shipping Info
Model: OLRB125-D5
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$1,727.00
Ships in 7-14 Business Days
Free Shipping
Free Lift Gate Service -
Nominal Heating Capacity (BTU/h)
Flue Location
Add-Ons

Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    When it comes to adding reliable warm air comfort to your home, Comfort-Aire has got you covered with their Patriot 80 line of oil furnaces. Featuring programmable controls and reliable components, these oil furnaces are built for trouble-free operation and maintenance for years to come. Not only that, Patriot 80 furnaces include state-of-the-art Beckett AFG burners and ceramic fiber combustion chambers for quiet and efficient heating comfort. Available in upflow, downflow, and horizontal configurations with multiple capacity options, the Patriot 80 can be installed in almost any heating application.
  • GeniSys™ Burner Control
  • With programmable delays for valve on and motor off, the GeniSys™ burner control is designed for trouble-free operation. Two communication ports on the Patriot 80 furnace allow for alarm contacts and wireless communication.
  • Quiet Operation
  • Patriot 80 furnaces feature foil-faced, high density fiberglass insulation for minimal noise and heat loss. A dense, ceramic fiber combustion chamber also aids in quiet and efficient operation.
  • Built to Last
  • A heavy-duty, 14-gauge heat exchanger and a corrosion-resistant steel cabinet allows for reliable operation over the years. The Patriot 80 furnaces even feature easy-access stainless steel clean-out ports for simple heat exchanger servicing.
  • Beckett AFG Burner
  • Patriot 80 furnaces include a Beckett AFG burner with a flame retention head, PSC burner motor, and solid-state ignition for reliable igniting.
  • Versatile
  • Available in a variety of configurations, the Patriot 80 furnace can fit in almost any location. Multiple firing rates and a simple nozzle change allows the furnace to accommodate a range of heating capacity requirements.
Specifications
General Information
Type
Oil Furnace
Product Line
Patriot 80
Product Sub-line
Lowboy
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Type ? Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow
Performance
Nominal Heating Capacity
125000 BTU
High Fire Input
151000 BTU
High Fire Output
127000 BTU
Low Fire Input
134000 BTU
Low Fire Output
113000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
83 %
Maximum Air Flow
2360 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
6 Inches
Product Height
37 Inches
Product Width
22 1/2 Inches
Product Depth
52 Inches
Shipping Weight
270 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5261851
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
