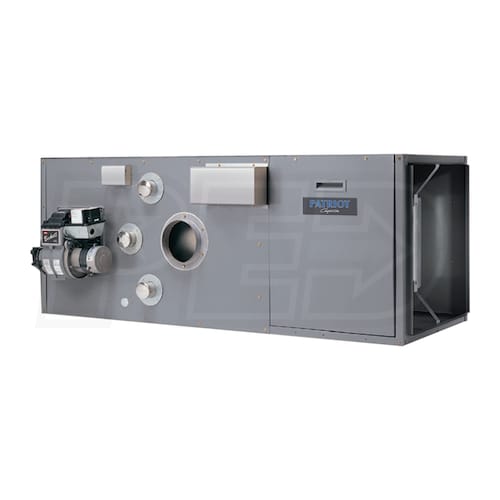

Comfort-Aire - 95k BTU Horizontal Front Flue Oil Furnace - 83% AFUE

Model:

OHFB95-E3-1A

Write a Review
$2,469.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$412 / Month
Suggested monthly payments with 6 month financing.
Comfort-Aire - 95k BTU Horizontal Front Flue Oil Furnace - 83% AFUE
Comfort-Aire - 95k BTU Horizontal Front Flue Oil Furnace - 83% AFUE
Model: OHFB95-E3-1A
$2,469.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring 14 gauge steel with high temperature ceramic fiber combustion chambers, Comfort-Aire furnaces heat exchangers are heavy duting and long lasting. With large diameter stainless steel cleanout ports, you can easily gain access for maintenance. The high quality Beckett™ burner provides efficient combustion, consistent operation and smooth ignition. The Beckett™ burner features advanced control including programmable valve-on delay, indicator lights for system monitoring and diagnostics, two communication ports and more.
  • Product Feature
  • Foil-faced high density fiberglass insulation to minimize noise and heat loss
  • Heavy duty 14 gauge steel heat exchanger engineered for efficiency; covered by limited lifetime warranty
  • Available in upflow, downflow, horizontal, front or rear flue configurations
  • Corrosion-resistant steel cabinet construction with baked enamel finish for durability
  • Easy access stainless steel clean-out ports for complete servicing of heat exchanger
  • State-of-the-art Beckett "AFG" burner with flame retention head, ECM burner motor and solid state ignition for smooth igniting
  • High temperature ceramic combustion chamber for quiet, high efficiency combustion
  • Multi-speed direct drive blower assembly with slide-out design and handy plug-in wiring (adjustable belt drive on OLRA200-BH)
  • Primary with integral fan center
  • Honeywell fan/limit for simple operation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

OHFB95-E3-1A
specs product image PID-107212
General Information
Type
Oil Furnace
Product Line
Patriot 80
Product Sub-line
Counterflow
Fuel Type Learn More
Oil
Vent Type Learn More
Chimney Vent
Modulating/Staging Learn More
Single Stage
Blower Motor
ECM Constant
Configuration Learn More
Downflow/Horizontal
Performance
AFUE Learn More
84 %
Heating BTU
95000
High Fire Input
113500 BTU
High Fire Output
95000 BTU
Low Fire Input
101000 BTU
Low Fire Output
85000 BTU
Maximum Air Flow
1410 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
6 Inches
Product Height
59 Inches
Product Width
20 1/2 Inches
Product Depth
20 1/2 Inches
Product Weight
250 Pounds
Shipping Weight
250 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
205013906
Warranty Information
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
20 Years
