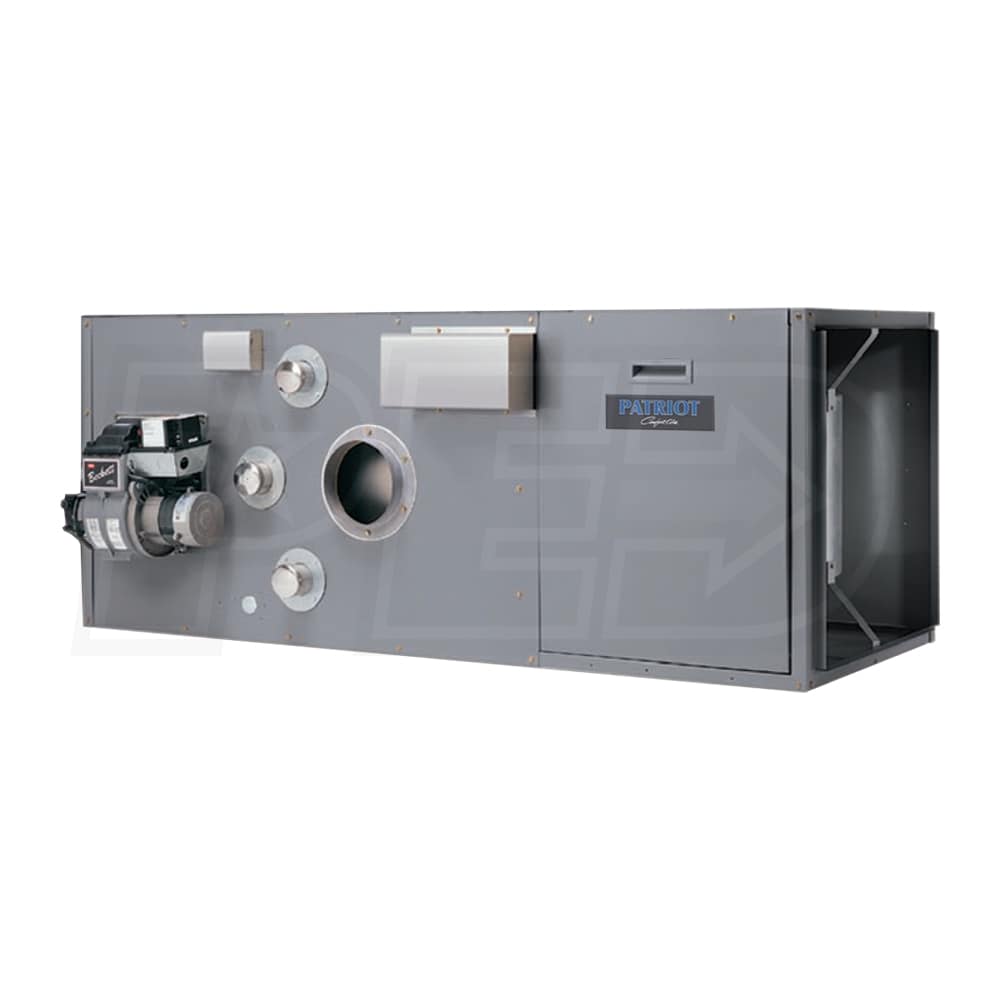

Comfort-Aire - 125k BTU Horizontal Downflow Oil Furnace - 84% AFUE

Model:

ODFB125-D5-3A

Write A Review
$3,526.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$62 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Comfort-Aire - 125k BTU Horizontal Downflow Oil Furnace - 84% AFUE
Comfort-Aire - 125k BTU Horizontal Downflow Oil Furnace - 84% AFUE
Model: ODFB125-D5-3A
$3,526.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring 14 gauge steel with high temperature ceramic fiber combustion chambers, Comfort-Aire furnaces heat exchangers are heavy duting and long lasting. With large diameter stainless steel cleanout ports, you can easily gain access for maintenance. The high quality Beckett™ burner provides efficient combustion, consistent operation and smooth ignition. The Beckett™ burner features advanced control including programmable valve-on delay, indicator lights for system monitoring and diagnostics, two communication ports and more.
  • Product Feature
  • Foil-faced high density fiberglass insulation to minimize noise and heat loss
  • Heavy duty 14 gauge steel heat exchanger engineered for efficiency; covered by limited lifetime warranty
  • Available in upflow, downflow, horizontal, front or rear flue configurations
  • Corrosion-resistant steel cabinet construction with baked enamel finish for durability
  • Easy access stainless steel clean-out ports for complete servicing of heat exchanger
  • State-of-the-art Beckett "AFG" burner with flame retention head, PSC burner motor and solid state ignition for smooth igniting
  • High temperature ceramic combustion chamber for quiet, high efficiency combustion
  • Multi-speed direct drive blower assembly with slide-out design and handy plug-in wiring (adjustable belt drive on OLRA200-BH)
  • Primary with integral fan center
  • Honeywell fan/limit for simple operation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ODFB125-D5-3A
specs product image PID-108288
Overview
Product Category
Furnace
General Information
Type
Oil Furnace
Product Line
Patriot 80
Product Sub-line
Counterflow
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
84 %
Heating BTU
125000
High Fire Input
150000 BTU
High Fire Output
126000 BTU
Low Fire Input
135000 BTU
Low Fire Output
113000 BTU
Maximum Air Flow
2205 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
6 Inches
Product Height
59 Inches
Product Width
23 1/2 Inches
Product Depth
23 1/2 Inches
Product Weight
270 Pounds
Shipping Weight
270 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5265124
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
