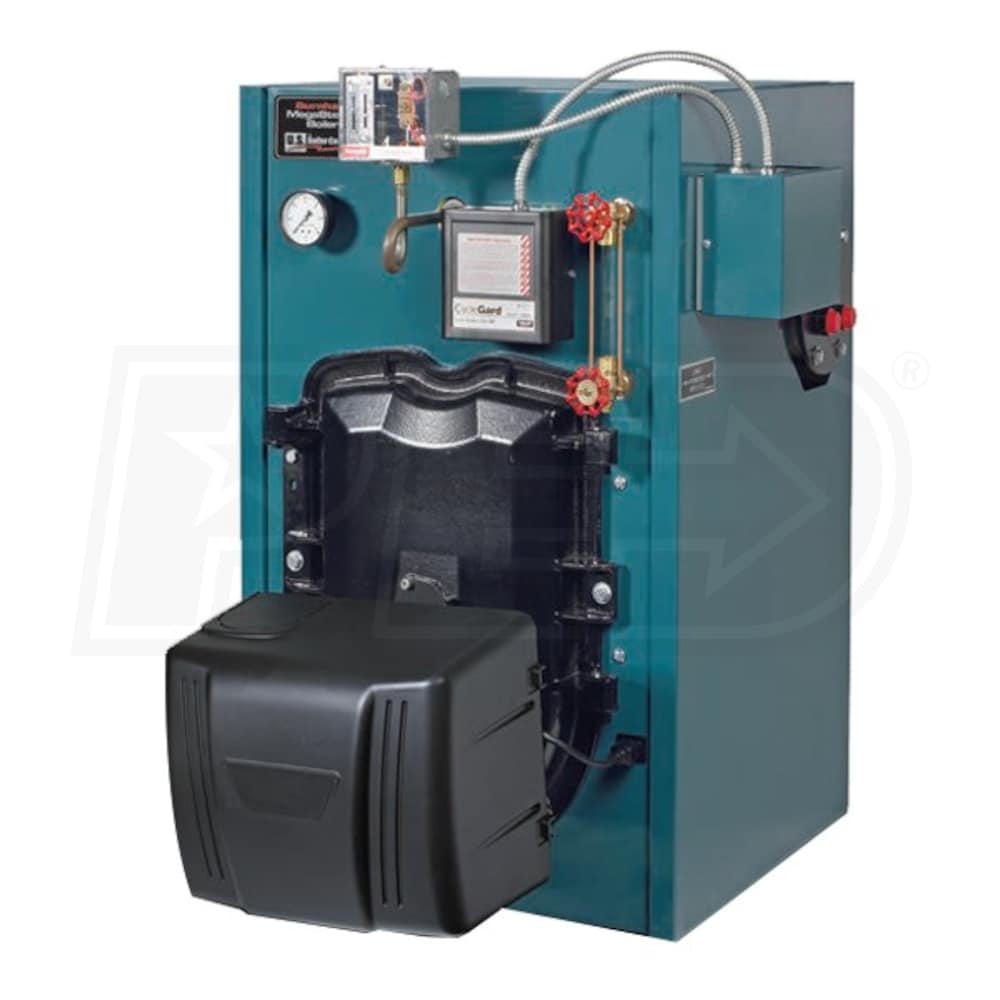

Burnham MST396 - 95K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent

Model:

MST396SL-HB

Write a Review
$3,010.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 5 In-Stock
Ships Monday, Mar 8th
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to California, Utah or any destination outside of the United States
$53 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Burnham MST396 - 95K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent
Burnham MST396 - 95K BTU - 86.0% AFUE - Steam Oil Boiler - Chimney Vent
Model: MST396SL-HB
$3,010.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The MegaSteam line is illustrative of Burnham's inventiveness. By including a three-pass heat-exchanger and thorough insulation, Burnham has produced an oil-fired steam boiler that is 86% efficient. Energy efficiency is not the only standout feature of the MST396SL-HB. It is also remarkably consistent and easy to install. When it comes to reliability, Burnham puts their money where their mouth is by including a five year corrosion warranty for the boiler sections. If your home is heated by oil and with steam, you can't go wrong with a MegaSteam.
  • Stable Water Line, Dry Steam
  • The entire heat transfer surface of the MegaSteam is located below the water line. This discourages corrosion in the tank, improves efficiency, and helps to produce steam that is up to 99% dry. Dry steam causes less wear to your pipes and fittings.
  • Superior Accessibility
  • The MST396SL-HB is designed for ease of installation and maintenance. The burner door is reversible and the rear plates may be removed easily for access to the flue passages.
  • Simple Venting
  • MegaSteam boilers include a barometric draft regulator and stainless steel flue baffles. These components provide simple, safe, and efficient natural draft venting for your boiler.
  • Durable Construction
  • Cast-iron construction of the boiler sections contributes to the incredible longevity of MegaSteam models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures.
  • Product Includes
  • (1) Burnham MST396SL-HB Steam Boiler
  • (1) Beckett AFG Burner
  • (1) Burnham 8116288 6" Draft Regulator
  • (1) Instruction Envelope
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

MST396SL-HB
General Information
Product Line
MegaSteam
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Available
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Packaged
Burner Model
Beckett AFG
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
86 %
Input Rate
1.05 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
127000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
2 Inches
Return Connection
2 Inches
Product Height
35 15/16 Inches
Product Width
22 5/8 Inches
Product Depth
16 5/8 Inches
Product Weight
607 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101347
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
