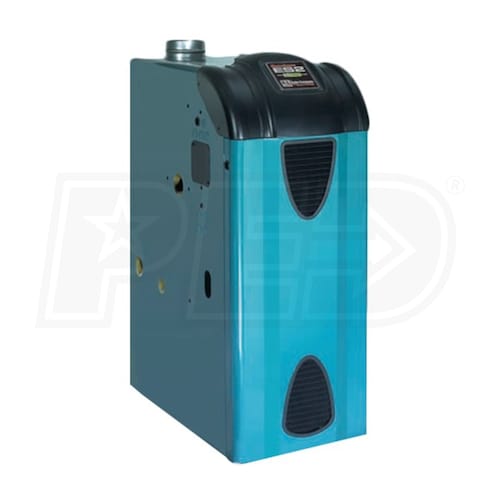

Burnham ES24BNI-T
Burnham ES24BNI-T
Hover to zoom
1 Of 5

Burnham ES24 - 89K BTU - 85.0% AFUE - Hot Water Gas Boiler - Chimney Vent

Model:

ES24BNI-T

Write a Review
$2,919.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$52 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Burnham ES24 - 89K BTU - 85.0% AFUE - Hot Water Gas Boiler - Chimney Vent
Burnham ES24 - 89K BTU - 85.0% AFUE - Hot Water Gas Boiler - Chimney Vent
Model: ES24BNI-T
$2,919.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The Enhanced Series 2 (ES2) line of hot water boilers blends a reliable design with Burnham's cutting edge IQ Control System. ES2 boilers save energy by doubling down on heat retention with an insulated jacket and plates. Possessing industry standard tapping locations, simplified venting, and exceptional efficiency, the ES24BNI-T is an excellent replacement for older natural draft boilers or the perfect addition for new construction.
  • Intelligent Hydronic Control
  • Burnham's IQ system consists of two primary components: an IQ Option Panel and an Intelligent Hydronic Control. The IHC supports two setpoints, controls ignition, provides fan and circulator relays, and acts as an aquastat.
  • IQ Option Panel
  • The IQ Option Panel provides a standardized and simplified way to add functionality to your boiler. It supports Burnham's plug-and-play IQ Option Cards for outdoor reset, an auxiliary high limit, and low water cutoff.
  • Compact Venting Technology
  • Internalizing a draft diverter means that the ES24BNI-T has a lower profile, providing you with more installation flexibility. The ES2 line also includes stainless steel flue baffles and a vent damper to provide ideal combustion conditions.
  • Durable Construction
  • Cast-iron construction of the boiler sections contribute to the incredible longevity of ES2 models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures.
  • Product Includes
  • (1) Burnham ES24BNI-T Hot Water Boiler
  • (1) Burnham 102284-02 5" Vent Damper
  • (1) Taco 007-2 Circulator
  • (1) Miscellaneous Parts Bag
  • (1) Instruction Envelope
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ES24BNI-T
specs product image PID-37772
General Information
Product Line
ES2
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Natural Gas
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
UPC
672616684532
Performance
AFUE Learn More
85 %
Maximum Input Capacity Learn More
105000 BTU
DOE Heating Capacity Learn More
89000 BTU
Net I=B=R Capacity Learn More
77000 BTU
Ultra Low NOx Emissions Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
41 Inches
Product Width
15 1/2 Inches
Product Depth
33 Inches
Product Weight
231 Pounds
Shipping Weight
304 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101367
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
