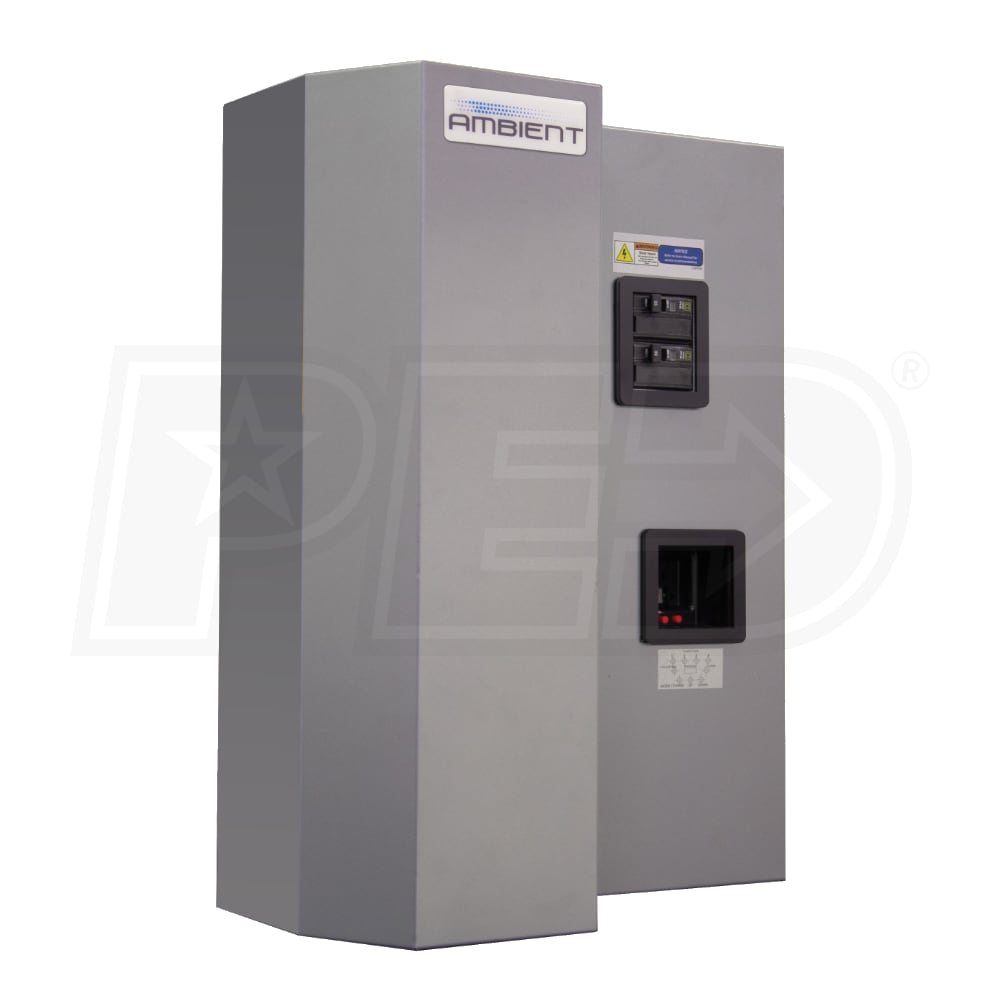

Burnham Ambient - 16kW - 54.6k BTU - Hot Water Electric Boiler - 240V - Single Phase

Model:

EB-16WA0

Write A Review
$2,986.57
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
synchrony card logo
$53 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Burnham Ambient - 16kW - 54.6k BTU - Hot Water Electric Boiler - 240V - Single Phase
Burnham Ambient - 16kW - 54.6k BTU - Hot Water Electric Boiler - 240V - Single Phase
Model: EB-16WA0
$2,986.57
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    From the leading manufacturer of home heating equipment comes the Burnham Ambient electric boiler, 100% efficient with zero emissions. The Ambient electric boiler is easily serviced with complete interior access. Made in the USA, the Burnham Ambient boiler is supported by leading hydronics experts. Use the versatile Ambient boiler for radiant floor heating or complete home heating.
  • Zero Emissions
  • The all electric Burnham Ambient boiler features 100% efficiency and zero emissions.
  • Modern Design
  • With a modern residential design, the Ambient boiler is sleek and is easily installed on the wall.
  • Simple Service
  • Featuring complete interior access and top mounted elements, the Burnham Ambient electric boiler requires no draining to service.
  • Integrated Control
  • With an integrated microprocessor control, the Ambient boiler element activation is controlled by the amount of demand on the boiler, saving you money.
  • Automatic Cycling
  • An in-tank sensor activates necessary elements automatically, eliminating short cycle concerns and extending boiler life.
  • User-Friendly Control
  • The simple, three button control on the Ambient boiler allows you to easily control and adjust the boiler.
  • Product Includes
  • Ambient Electric Boiler
  • Flow Switch
  • Pressure Relief Valve
  • Temperature and Pressure Gauge
  • Boiler Drain Valve
  • Automatic Air Vent
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

EB-16WA0
specs product image PID-151523
General Information
Product Line
Ambient
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Mount Type
Wall
Includes Pump
No
Assembly Type
Packaged
UPC
672616874902
Performance
Heating Capacity
54600 BTU
Heating Capacity (kW)
16 kW
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
90.8 Amps
Recommended Breaker Size
100 Amps
Current Draw
66.7 Amps
Electrical Output
16000 Watts
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
23 Inches
Product Width
18 Inches
Product Depth
9 3/4 Inches
Product Weight
54 Pounds
Shipping Weight
70 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heating Element Warranty
20 Years
