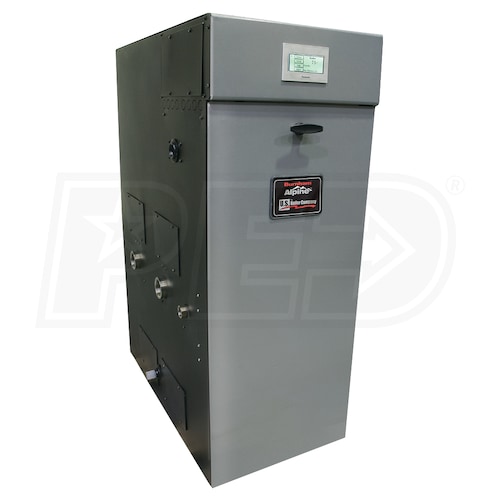

Burnham Alpine Commercial - 375K BTU - 94.1% AFUE - Hot Water Gas Boiler - Direct Vent
Model:
ALP399CF-4L00
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High Efficiency
- The Series 3 Gas-Fired Water Boiler offers up to 84% AFUE, which means it operates with high efficiency, resulting in cost savings on fuel bills.
- Multiple Venting Options
- This boiler comes with multiple venting options, including direct vent, chimney and concentric venting, allowing for versatile installation options and making it suitable for a wide range of applications.
- Quality Construction
- The boiler is built with durable cast-iron construction, providing a long-lasting and reliable heating solution for your home or business.
- Easy to Use
- The Series 3 Gas-Fired Water Boiler is designed for easy installation, operation, and maintenance. It features an intuitive control panel that allows for quick and easy adjustments to the temperature settings.
- Wall Bracket Mount Kit
- Pre-installed hanging bracket, Easy lift wall hanging design.
- Field Convertible Fuel Source
- This product can be used with liquid propane or natural gas and is field convertible.
Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. One of the most energy-saving boilers available today is the Alpine condensing boiler from Burnham Company, renowned for its high efficiency. Advanced technologies integrated into each Alpine facilitate real-time monitoring of boiler performance, and fuel consumption is precisely matched with heating demand. Additionally, the Alpine is designed with outside temperature sensing technology, which automatically adjusts the boiler's firing rate based on outdoor air temperature, as well as continuous system safety monitoring for dependable operation over the long-term. The Alpine sets the performance standard for modern boilers!
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
ALP399CF-4L00
General Information
Product Line
Alpine
Product Category
Boiler
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Stainless Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural or Propane Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
UPC
672616737986
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
94.1 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
399 BTU
Minimum Input Capacity
80 BTU
Input Rate
4.5 GPH
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
375 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
326 BTU
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Turndown Ratio
5:1
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
3/4 Inch
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
56 Inches
Product Width
27 Inches
Product Depth
45 1/2 Inches
Shipping Weight
316 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
8484620
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
