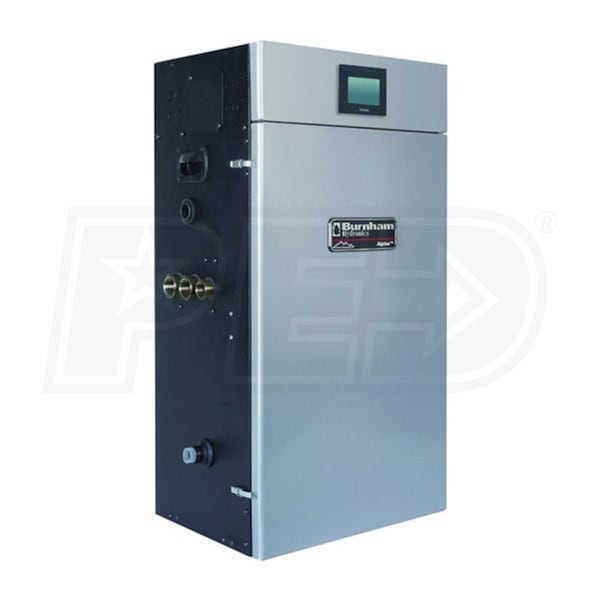

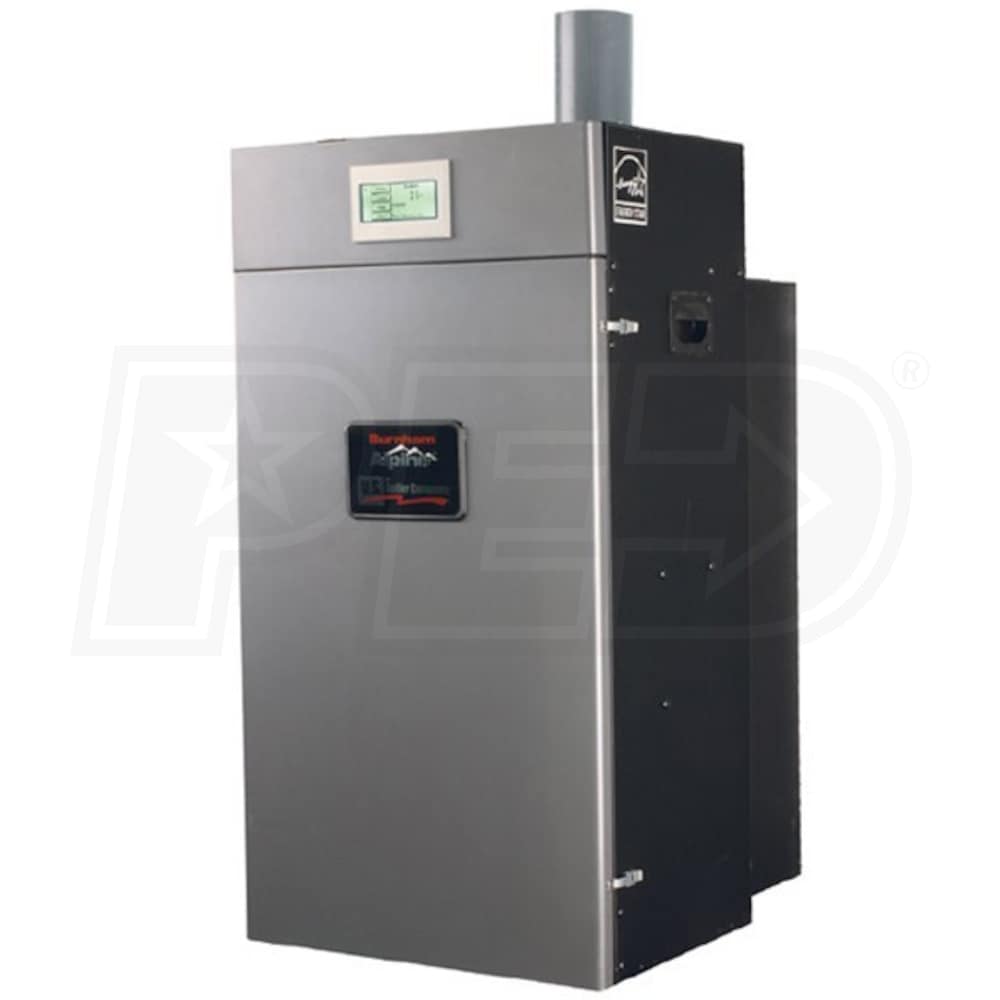

Burnham ALP080B - 72K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent

Burnham ALP080B - 72K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent
Our Price
Compare Prices
Shipping Info
Model: ALP080BW-4T02
$3,098.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons

Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The Alpine line brings advanced controls together with modulating firing and condensing technology for optimal energy use. By reusing heat contained in the exiting flue gasses and adjusting firing based on current needs, the ALP080BW-4T02 can achieve 95 percent efficiency. The Alpine's advanced technology also makes installation and operation of your boiler easier than ever. Consolidated connections, preprogrammed settings, and common sense interface prompts all contribute to the ALP080BW-4T02's ease of use. Getting the most out of your energy dollar doesn't have to be a complicated affair, and Burnham proves it with the Alpine.
Specifications
General Information
Product Line
Alpine
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
UPC
672616732974
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
80000 BTU
Minimum Input Capacity
16000 BTU
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
72000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
63000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
32 3/16 Inches
Product Width
16 11/16 Inches
Product Depth
12 9/16 Inches
Product Weight
98 Pounds
Shipping Weight
137 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5624637
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
12 Years
Features
Features
    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The Alpine line brings advanced controls together with modulating firing and condensing technology for optimal energy use. By reusing heat contained in the exiting flue gasses and adjusting firing based on current needs, the ALP080BW-4T02 can achieve 95 percent efficiency. The Alpine's advanced technology also makes installation and operation of your boiler easier than ever. Consolidated connections, preprogrammed settings, and common sense interface prompts all contribute to the ALP080BW-4T02's ease of use. Getting the most out of your energy dollar doesn't have to be a complicated affair, and Burnham proves it with the Alpine.
Specifications
General Information
Product Line
Alpine
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
UPC
672616732974
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
80000 BTU
Minimum Input Capacity
16000 BTU
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
72000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
63000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
32 3/16 Inches
Product Width
16 11/16 Inches
Product Depth
12 9/16 Inches
Product Weight
98 Pounds
Shipping Weight
137 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5624637
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
12 Years
Product Specs
+
Specifications
General Information
Product Line
Alpine
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
UPC
672616732974
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
80000 BTU
Minimum Input Capacity
16000 BTU
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
72000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
63000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions ? NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
5:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
32 3/16 Inches
Product Width
16 11/16 Inches
Product Depth
12 9/16 Inches
Product Weight
98 Pounds
Shipping Weight
137 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
5624637
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
12 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Exactly what does "direct vented" mean? I think my current boiler is chimney vented, so is a "direct vented" boiler applicable for me?
Bill
from Illinois
February 24, 2016
Answer
Direct Vent (also referred to as "Sealed Combustion") means that there are two vent connections to the outdoors. One is to bring air for combustion directly to the burner enclosure from outdoors and the other to exhaust flue gases directly outdoors (through wall or roof). Direct vent boilers cannot vent into a chimney, but if no other appliances are using the chimney, it can be used as a chase to connect the two vents to the outdoors.
