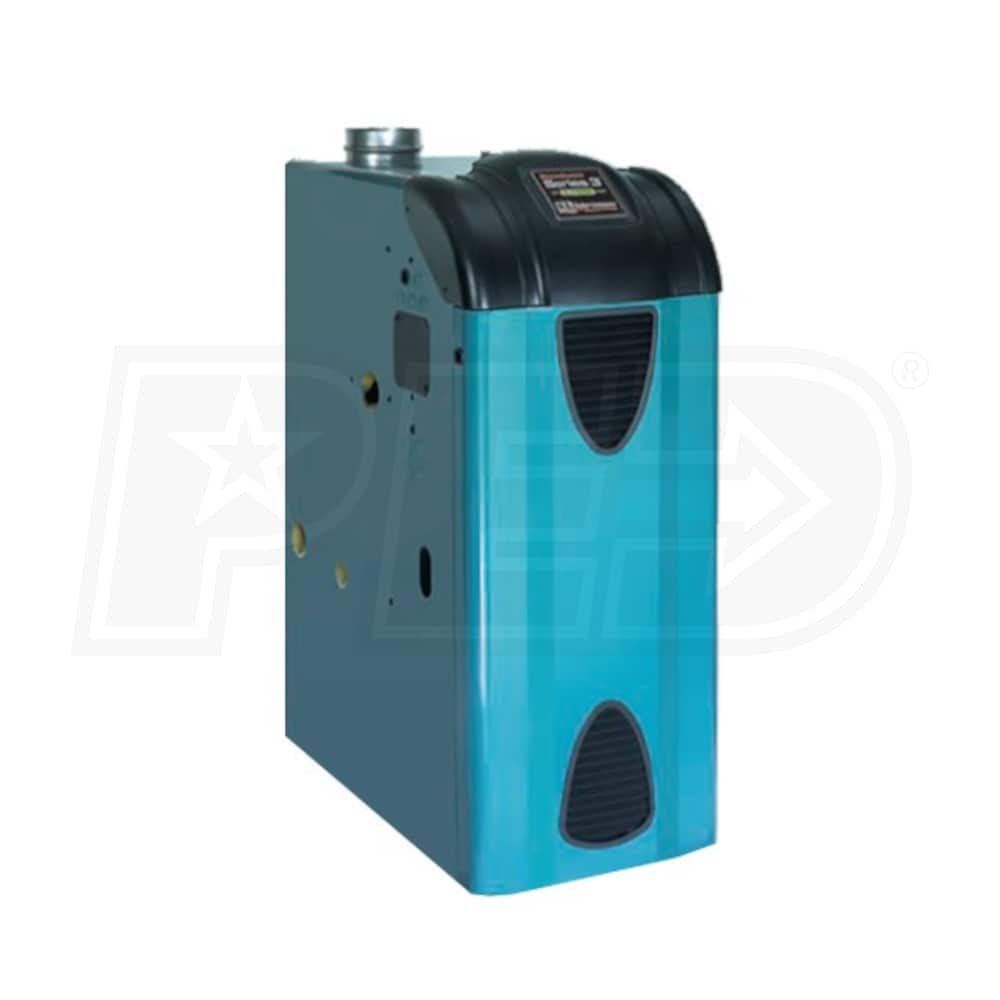

Burnham 305 - 117K BTU - 84.0% AFUE - Hot Water Propane Boiler - Chimney Vent

Model:

305BPI-T

Write a Review
$2,674.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$47 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Burnham 305 - 117K BTU - 84.0% AFUE - Hot Water Propane Boiler - Chimney Vent
Burnham 305 - 117K BTU - 84.0% AFUE - Hot Water Propane Boiler - Chimney Vent
Model: 305BPI-T
$2,674.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The Series 3 line of hot water boilers blends a reliable design with Burnham's cutting edge IQ Control System. Series 3 boilers save energy by doubling down on heat retention with an insulated jacket and plates. Possessing industry standard tapping locations, simplified venting, and exceptional efficiency, the 305BPI-T is an excellent replacement for older natural draft boilers or the perfect addition for new construction.
  • Intelligent Hydronic Control
  • Burnham's IQ system consists of two primary components: an IQ Option Panel and an Intelligent Hydronic Control. The IHC supports two setpoints, controls ignition, provides fan and circulator relays, and acts as an aquastat.
  • IQ Option Panel
  • The IQ Option Panel provides a standardized and simplified way to add functionality to your boiler. It supports Burnham's plug-and-play IQ Option Cards for outdoor reset, an auxiliary high limit, and low water cutoff.
  • Compact Venting Technology
  • All Series 3 boilers contain a draft diverter. By internalizing this component, the profile of the boiler and the space required for installation is reduced. The 305BPI-T also includes a vent damper to provide ideal combustion conditions.
  • Durable Construction
  • Cast-iron construction of the boiler sections contribute to the incredible longevity of Series 3 models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures.
  • Product Includes
  • (1) Burnham 305BPI-T Hot Water Boiler
  • (1) Burnham 102284-03 6" Vent Damper
  • (1) Taco 007-2 Circulator
  • (1) Miscellaneous Parts Bag
  • (1) Instruction Envelope
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

305BPI-T
specs product image PID-38004
General Information
Product Line
Series 3
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Liquid Propane
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
Performance
AFUE Learn More
84 %
Maximum Input Capacity Learn More
140000 BTU
DOE Heating Capacity Learn More
117000 BTU
Net I=B=R Capacity Learn More
102000 BTU
Ultra Low NOx Emissions Learn More
No
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
41 Inches
Product Width
18 1/2 Inches
Product Depth
33 Inches
Product Weight
284 Pounds
Shipping Weight
357 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2101373
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
