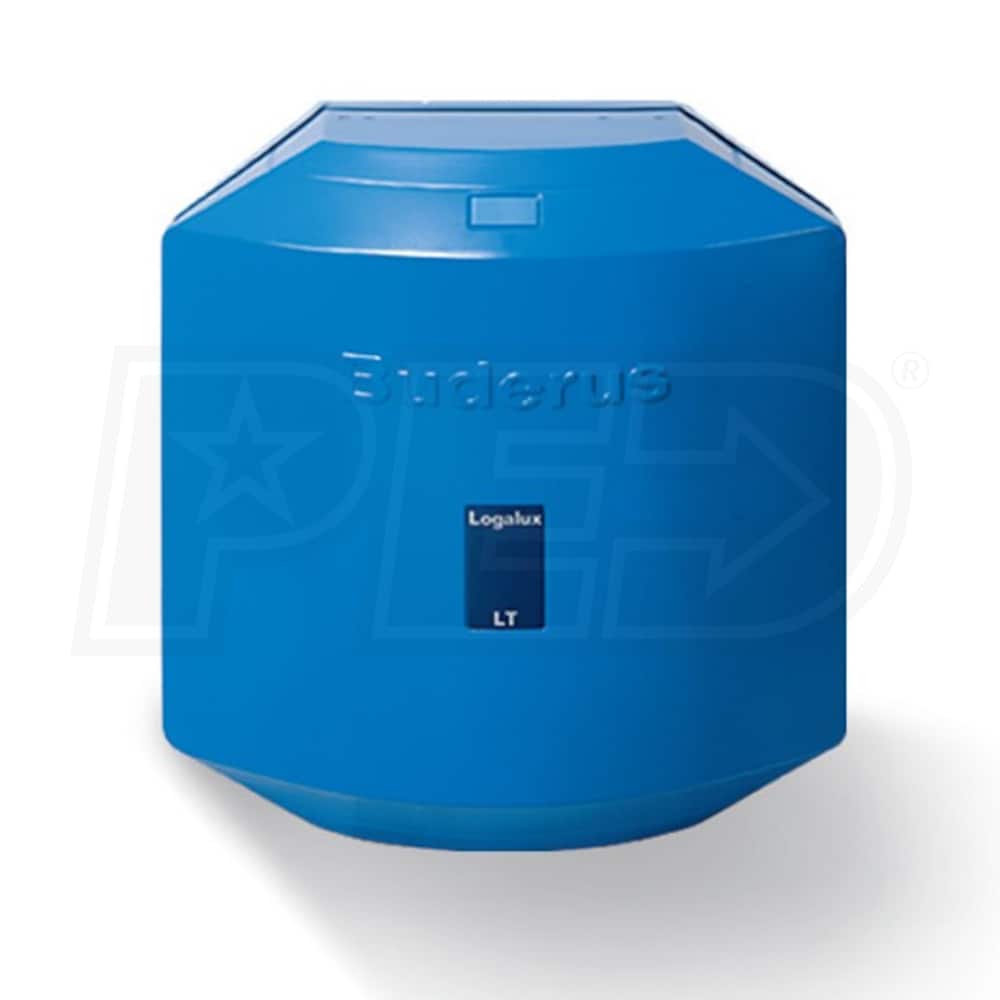

Buderus LT200 - 53 Gal. - Horizontal Indirect Water Heater
Share
+Share This Product
Product Description
Specs
Reviews
Product Q&A
Recommended Accessories
How-To Articles
Manuals
Product Description
+−
Features
Features
The Buderus LT indirect fired water heater is the perfect match to the GB125 oil fired boiler. Designed to match each other in both performance and aesthetic contexts, the boiler sits neatly atop the water heater with a low enough profile to fit in most utility rooms. This arrangement makes connecting the boiler to the tank's internal coil a trivial task. The tank also works well with other boilers too, providing a well insulated, efficient solution for home hot water storage.
Thermoglaze Enamel Interior
The Buderus LT200 indirect fired water heater is coated internally with Buderus' Thermoglaze enamel, protecting the inside of the tank from corrosion.
Horizontal Design
The horizontal design of the water heater gives it a small vertical footprint, allowing the hot water tank and the boiler to be stacked on top of one another.
Designed to Match GB125 Boiler
The Buderus LT200 indirect fired water heater is designed to match thematically with the GB125 boiler, providing a consistent, complete hot water package.
Specifications
General Information
Type
Indirect Water Heater
Product Line
LT
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
187 Gallons
Continuous Recovery Rate
150 Gallons
Dimensions
Storage Volume
53 Gallons
Cold Water Inlet
1 1/4 Inches
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
3/4 Inch
Product Height
25 3/4 Inches
Product Width
25 3/4 Inches
Product Depth
42 7/16 Inches
Product Weight
247 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
20 Years
Features
Features
The Buderus LT indirect fired water heater is the perfect match to the GB125 oil fired boiler. Designed to match each other in both performance and aesthetic contexts, the boiler sits neatly atop the water heater with a low enough profile to fit in most utility rooms. This arrangement makes connecting the boiler to the tank's internal coil a trivial task. The tank also works well with other boilers too, providing a well insulated, efficient solution for home hot water storage.
Thermoglaze Enamel Interior
The Buderus LT200 indirect fired water heater is coated internally with Buderus' Thermoglaze enamel, protecting the inside of the tank from corrosion.
Horizontal Design
The horizontal design of the water heater gives it a small vertical footprint, allowing the hot water tank and the boiler to be stacked on top of one another.
Designed to Match GB125 Boiler
The Buderus LT200 indirect fired water heater is designed to match thematically with the GB125 boiler, providing a consistent, complete hot water package.
Specifications
General Information
Type
Indirect Water Heater
Product Line
LT
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
187 Gallons
Continuous Recovery Rate
150 Gallons
Dimensions
Storage Volume
53 Gallons
Cold Water Inlet
1 1/4 Inches
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
3/4 Inch
Product Height
25 3/4 Inches
Product Width
25 3/4 Inches
Product Depth
42 7/16 Inches
Product Weight
247 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
20 Years
Product Specs
+−
Specifications
General Information
Type
Indirect Water Heater
Product Line
LT
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
187 Gallons
Continuous Recovery Rate
150 Gallons
Dimensions
Storage Volume
53 Gallons
Cold Water Inlet
1 1/4 Inches
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
3/4 Inch
Product Height
25 3/4 Inches
Product Width
25 3/4 Inches
Product Depth
42 7/16 Inches
Product Weight
247 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
20 Years
