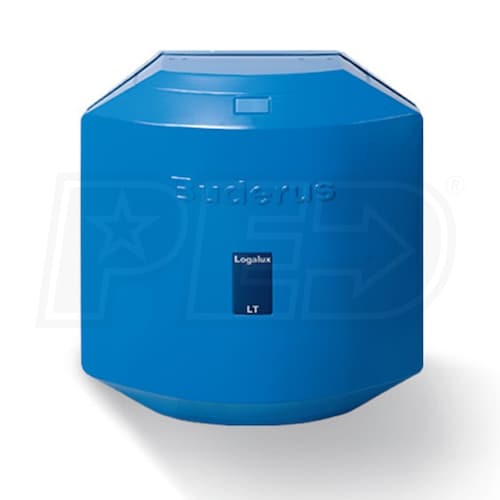

Buderus LT160 - 42 Gal. - Horizontal Indirect Water Heater

Buderus LT160 - 42 Gal. - Horizontal Indirect Water Heater
Model: LT160
$1,427.95
Factory-Direct
Ships in 3 - 4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons

Factory-Direct
Ships in 3 - 4 Weeks
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    The Buderus LT indirect fired water heater is the perfect match to the GB125 oil fired boiler. Designed to match each other in both performance and aesthetic contexts, the boiler sits neatly atop the water heater with a low enough profile to fit in most utility rooms. This arrangement makes connecting the boiler to the tank's internal coil a trivial task. The tank also works well with other boilers too, providing a well insulated, efficient solution for home hot water storage.

    Product Features

    Thermoglaze Enamel Interior
    The Buderus LT160 indirect fired water heater is coated internally with Buderus' Thermoglaze enamel, protecting the inside of the tank from corrosion.

    Horizontal Design
    The horizontal design of the water heater gives it a small vertical footprint, allowing the hot water tank and the boiler to be stacked on top of one another.

    Designed to Match GB125 Boiler
    The Buderus LT160 indirect fired water heater is designed to match thematically with the GB125 boiler, providing a consistent, complete hot water package.

Specifications
General Information
Product Line
LT
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank.
163 Gallons
Continuous Recovery Rate
134 Gallons
Dimensions
Storage Volume
42 Gallons
Cold Water Inlet
1.25 Inches
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
0.75 Inches
Product Height
25.75 Inches
Product Width
25.75 Inches
Product Depth
36.25 Inches
Product Weight
220 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited Lifetime Years
Certifications
Country of Origin
Germany
Features
Features

    The Buderus LT indirect fired water heater is the perfect match to the GB125 oil fired boiler. Designed to match each other in both performance and aesthetic contexts, the boiler sits neatly atop the water heater with a low enough profile to fit in most utility rooms. This arrangement makes connecting the boiler to the tank's internal coil a trivial task. The tank also works well with other boilers too, providing a well insulated, efficient solution for home hot water storage.

    Product Features

    Thermoglaze Enamel Interior
    The Buderus LT160 indirect fired water heater is coated internally with Buderus' Thermoglaze enamel, protecting the inside of the tank from corrosion.

    Horizontal Design
    The horizontal design of the water heater gives it a small vertical footprint, allowing the hot water tank and the boiler to be stacked on top of one another.

    Designed to Match GB125 Boiler
    The Buderus LT160 indirect fired water heater is designed to match thematically with the GB125 boiler, providing a consistent, complete hot water package.

Specifications
General Information
Product Line
LT
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank.
163 Gallons
Continuous Recovery Rate
134 Gallons
Dimensions
Storage Volume
42 Gallons
Cold Water Inlet
1.25 Inches
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
0.75 Inches
Product Height
25.75 Inches
Product Width
25.75 Inches
Product Depth
36.25 Inches
Product Weight
220 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited Lifetime Years
Certifications
Country of Origin
Germany
Product Specs
+
Specifications
General Information
Product Line
LT
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Coils Quantity
1
Connection Type
NPT
Performance
First Hour Delivery Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank.
163 Gallons
Continuous Recovery Rate
134 Gallons
Dimensions
Storage Volume
42 Gallons
Cold Water Inlet
1.25 Inches
Hot Water Outlet
1 Inch
Boiler Supply
1 Inch
Boiler Return
0.75 Inches
Product Height
25.75 Inches
Product Width
25.75 Inches
Product Depth
36.25 Inches
Product Weight
220 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited Lifetime Years
Certifications
Country of Origin
Germany
Reviews
+
This product has no reviews.
Be the first to voice your opinion on this Buderus product.
Product Q&A
(1)
+
Hello, Is this compatible with a G124X gas boiler? Will it provide hot water equivalent to a conventional stand-alone gas fired 50-gallon hot water heater, which we have now and does well for 5 people in household.
Chris W
from Pennsylvania
August 28, 2016
Read Response +
Answer
The Buderus LT160 will stack with any size G124X boiler making it the perfect indirect fired water heater option for applications where floor space is at a premium. Depending on how you are controlling your boiler, you may need to purchase an aquastat and pump relay or other controls to coordinate the operation of your boiler for both space heating and domestic hot water, but this is true of all indirect-fired water heaters.

While it does depend on your specific boiler and existing water heater, in general, an indirect fired hot water heater will deliver a higher volume of hot water and recover more quickly than a conventional storage tank type water heater of the same size, and it should do so more efficiently as well.
Hide Response -
