Buderus G115WS/4 - 109K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner

Buderus G115WS/4 - 109K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner
Our Price
Compare Prices
Shipping Info
Model: G115WS/4-AFG
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$2,649.00
Ships in 3-4 Weeks
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons

Ships in 3-4 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California, Utah or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Buderus G115WS is an advanced oil boiler capable of impressive efficiencies. The stainless steel burner has the capability to pre-mix fuel and oxygenated air before combustion, resulting in a cleanly burning flame that emits remarkably low emissions. The G115WS has the ability to automatically adjust boiler heat to meet temperature demand using an outdoor reset control, both increasing efficiency and dramatically increasing the life of the boiler. An insulating enclosure and patented flexible cast iron rounds of a boiler package that will last you for years to come.
  • Ideal for New Installations or Renovations
  • The G115WS boiler is ideal for both new construction and renovations of aged housing. Two ETL approved venting options ensure that proper venting can be achieved in old or new construction.
  • Auto Adjusting Boiler Temperature
  • Conventional boilers typically operate at a set temperature at all times. The G115WS, however, changes its internal water temperature to suit outdoor conditions. This dramatically increases efficiencies and boiler life.
  • Included Leveling Legs
  • Included with the G115WS boiler are a set of adjustable legs, allowing the boiler to remain level even on inclined surfaces.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G115WS boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
  • Product Includes

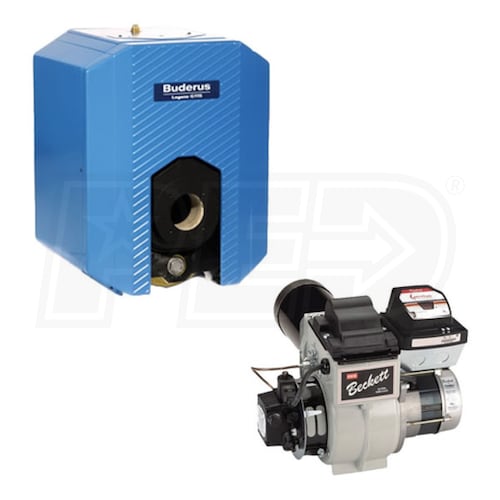

    • (1) Buderus G115WS/4 - 109K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately (G115WS/4)

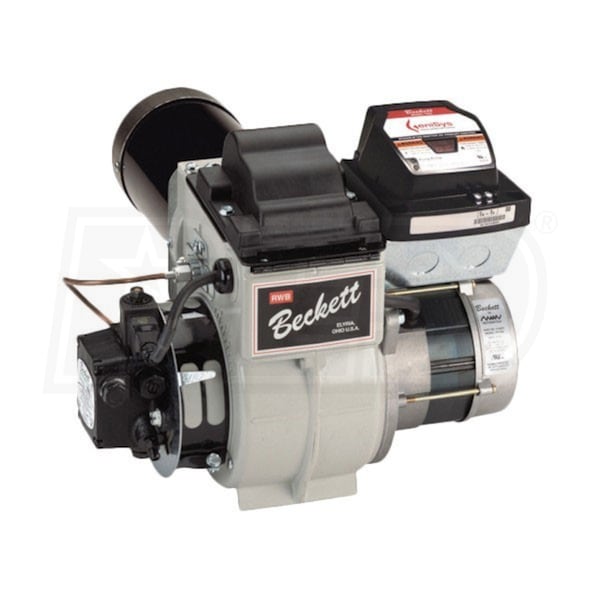

    • (1) Buderus Oil Burner Kit for G115WS/4 - Beckett AFG - 0.95 GPH - Chimney Vent (7738004857)
Specifications
General Information
Product Line
G115WS
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Performance
Input Rate
0.9 GPH
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
10.8 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
G115WS/4 Specifications
General Information
Product Line
G115WS
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
0.9 GPH
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
10.8 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Product Height
30 3/8 Inches
Product Width
23 2/3 Inches
Product Depth
28 2/3 Inches
Product Weight
403 Pounds
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
7738004857 Specifications
General Information
Product Line
G115WS
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
133000 BTU
Input Rate
0.95 GPH
Dimensions
Product Weight
10 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    The Buderus G115WS is an advanced oil boiler capable of impressive efficiencies. The stainless steel burner has the capability to pre-mix fuel and oxygenated air before combustion, resulting in a cleanly burning flame that emits remarkably low emissions. The G115WS has the ability to automatically adjust boiler heat to meet temperature demand using an outdoor reset control, both increasing efficiency and dramatically increasing the life of the boiler. An insulating enclosure and patented flexible cast iron rounds of a boiler package that will last you for years to come.
  • Ideal for New Installations or Renovations
  • The G115WS boiler is ideal for both new construction and renovations of aged housing. Two ETL approved venting options ensure that proper venting can be achieved in old or new construction.
  • Auto Adjusting Boiler Temperature
  • Conventional boilers typically operate at a set temperature at all times. The G115WS, however, changes its internal water temperature to suit outdoor conditions. This dramatically increases efficiencies and boiler life.
  • Included Leveling Legs
  • Included with the G115WS boiler are a set of adjustable legs, allowing the boiler to remain level even on inclined surfaces.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G115WS boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
  • Product Includes
    • (1) Buderus G115WS/4 - 109K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately (G115WS/4)
    • (1) Buderus Oil Burner Kit for G115WS/4 - Beckett AFG - 0.95 GPH - Chimney Vent (7738004857)
Specifications
General Information
Product Line
G115WS
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Performance
Input Rate
0.9 GPH
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
10.8 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
G115WS/4 Specifications
General Information
Product Line
G115WS
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
0.9 GPH
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
10.8 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Product Height
30 3/8 Inches
Product Width
23 2/3 Inches
Product Depth
28 2/3 Inches
Product Weight
403 Pounds
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
7738004857 Specifications
General Information
Product Line
G115WS
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
133000 BTU
Input Rate
0.95 GPH
Dimensions
Product Weight
10 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Product Line
G115WS
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Performance
Input Rate
0.9 GPH
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
10.8 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
G115WS/4 Specifications
General Information
Product Line
G115WS
Medium ? Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production ? DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging ? Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
0.9 GPH
DOE Heating Capacity ? Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
109000 BTU
Net I=B=R Capacity ? I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
95000 BTU
AFUE ? AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
10.8 Gallons
Flue Connection Size
5 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 Inch
Product Height
30 3/8 Inches
Product Width
23 2/3 Inches
Product Depth
28 2/3 Inches
Product Weight
403 Pounds
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
7738004857 Specifications
General Information
Product Line
G115WS
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Performance
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
133000 BTU
Input Rate
0.95 GPH
Dimensions
Product Weight
10 Pounds
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(2)
+
Buderus G115WS/4-AFG Reviews & Ratings
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Bob
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Buderus G115WS/4 - 109K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner
Buderus G115WS/4-AFG
+
Reset View
Buderus G115WS/4-AFG
Buderus G115WS/4-AFG
Buderus G115WS/4-AFG
×
Customer Review Images

Visit eComfort on Facebook
View the eComfort Twitter Profile Page
Follow eComfort on Pinterest
View eComfort YouTube Channel
View eComfort LinkedIn Company Profile
