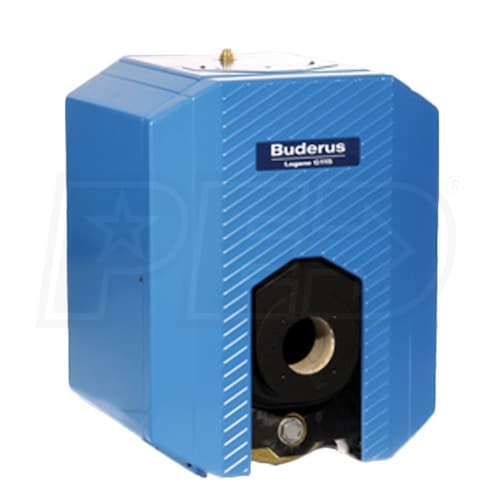

Buderus G115WS/3 - 85K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately

Buderus G115WS/3 - 85K BTU - 87.0% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately
Model: G115WS/3
$1,569.00
Only 4 In-Stock
Ships Wednesday, Aug 22nd
Free Shipping
Free Lift Gate Service -
Add-Ons

Only 4 In-Stock
Ships Wednesday, Aug 22nd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California, Utah or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Buderus G115WS is an advanced oil boiler capable of impressive efficiencies. The stainless steel burner (sold separately) has the capability to pre-mix fuel and oxygenated air before combustion, resulting in a cleanly burning flame that emits remarkably low emissions. The G115WS has the ability to automatically adjust boiler heat to meet temperature demand using an outdoor reset control, both increasing efficiency and dramatically increasing the life of the boiler. An insulating enclosure and patented flexible cast iron rounds of a boiler package that will last you for years to come.
  • Ideal for New Installations or Renovations
  • The G115WS boiler is ideal for both new construction and renovations of aged housing. Two ETL approved venting options ensure that proper venting can be achieved in old or new construction.
  • Auto Adjusting Boiler Temperature
  • Conventional boilers typically operate at a set temperature at all times. The G115WS, however, changes its internal water temperature to suit outdoor conditions. This dramatically increases efficiencies and boiler life.
  • Included Leveling Legs
  • Included with the G115WS boiler are a set of adjustable legs, allowing the boiler to remain level even on inclined surfaces.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G115WS boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
Specifications
General Information
Product Line
G115WS
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
0.7 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
85000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
74000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
8.7 Gallons
Flue Connection Size
5 Inches
Supply Connection
1.25 Inches
Return Connection
1 Inch
Product Height
30.375 Inches
Product Width
23.675 Inches
Product Depth
23.675 Inches
Product Weight
330 Pounds
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
Features
Features
    The Buderus G115WS is an advanced oil boiler capable of impressive efficiencies. The stainless steel burner (sold separately) has the capability to pre-mix fuel and oxygenated air before combustion, resulting in a cleanly burning flame that emits remarkably low emissions. The G115WS has the ability to automatically adjust boiler heat to meet temperature demand using an outdoor reset control, both increasing efficiency and dramatically increasing the life of the boiler. An insulating enclosure and patented flexible cast iron rounds of a boiler package that will last you for years to come.
  • Ideal for New Installations or Renovations
  • The G115WS boiler is ideal for both new construction and renovations of aged housing. Two ETL approved venting options ensure that proper venting can be achieved in old or new construction.
  • Auto Adjusting Boiler Temperature
  • Conventional boilers typically operate at a set temperature at all times. The G115WS, however, changes its internal water temperature to suit outdoor conditions. This dramatically increases efficiencies and boiler life.
  • Included Leveling Legs
  • Included with the G115WS boiler are a set of adjustable legs, allowing the boiler to remain level even on inclined surfaces.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G115WS boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
Specifications
General Information
Product Line
G115WS
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
0.7 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
85000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
74000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
8.7 Gallons
Flue Connection Size
5 Inches
Supply Connection
1.25 Inches
Return Connection
1 Inch
Product Height
30.375 Inches
Product Width
23.675 Inches
Product Depth
23.675 Inches
Product Weight
330 Pounds
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
Product Specs
+
Specifications
General Information
Product Line
G115WS
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type
Conventional
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Packaged
Burner Model
Sold Separately
Performance
Input Rate
0.7 GPH
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
85000 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
74000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
87 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Fluid Content
8.7 Gallons
Flue Connection Size
5 Inches
Supply Connection
1.25 Inches
Return Connection
1 Inch
Product Height
30.375 Inches
Product Width
23.675 Inches
Product Depth
23.675 Inches
Product Weight
330 Pounds
Certifications
Country of Origin
Germany
IBR Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
Reviews
(2)
+
Buderus G115WS/3 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
What else would I have to buy to change out my boiler?
Patrick
from Massachusetts
August 30, 2016
Answer
If you choose to go with the Buderus G115WS oil boiler, you will need to purchase the oil burner kit. The burner selection is listed under the accessory tab. You can also purchase a thermostat, expansion tank, pumps, and a fill valve among other accessories.

Please contact us and we will be happy to discuss your specific application and help you to select the appropriate materials. You may also want to take a look at our hydronic system accessory guide.
