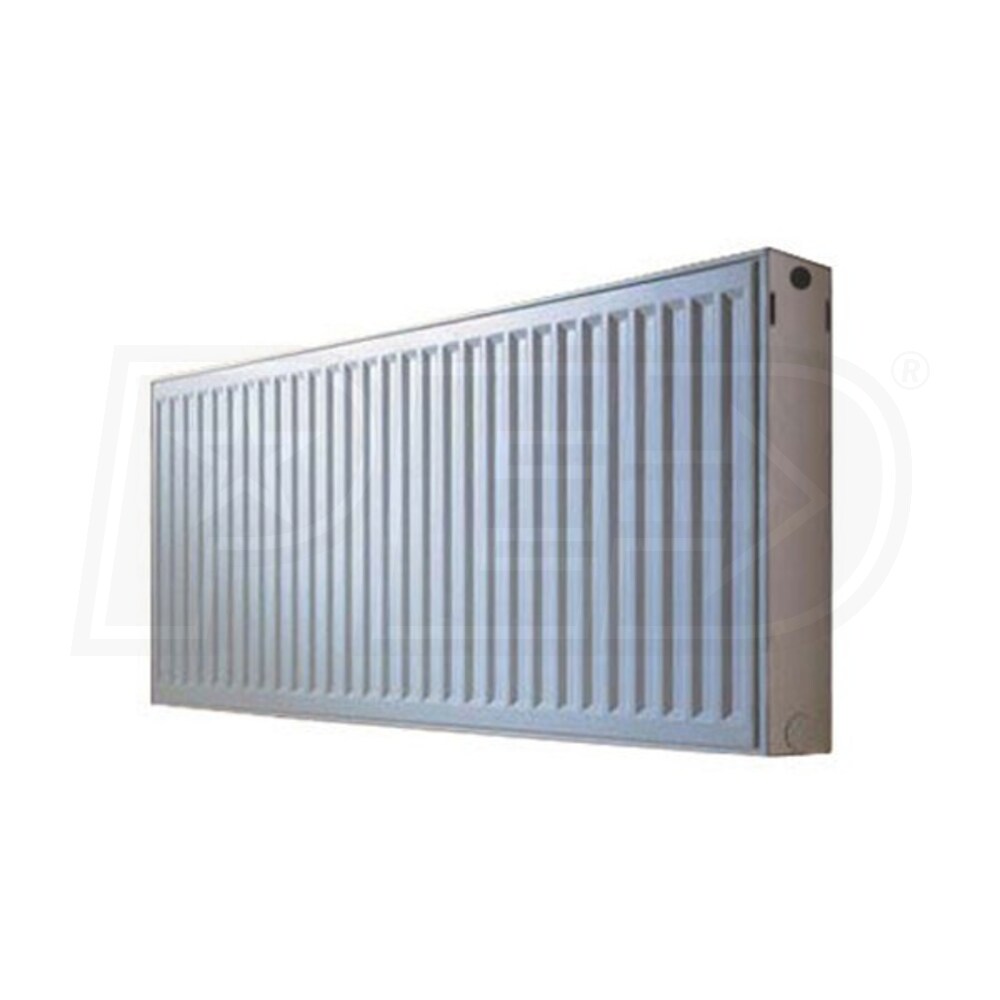

Buderus Model 22 panel radiators bring a contemporary polish to functional and aesthetic radiator design. The steel radiator contains intricate layers of small radiating fins, allowing it to heat your home effectively while using a fraction of the wall space a traditional radiator might occupy. The unique wall mounting system minimizes areas that dust and dirt might collect, virtually eliminating radiator noise traditionally associated with hydronic heating systems. A powder-coated enamel finish keeps your radiator looking great for its entire service life, and can be painted over to match the color themes of any room.
Space Saving Design
Buderus panel radiators are capable of emitting the same amount of heat as a baseboard radiator three times its size. Your radiator no longer has to be the defining aspect of a room's lower border.
Durable Steel Construction
The steel construction of Buderus panel radiators ensures that the radiators will withstand years of accidental bumps and knocks without breaking a sweat.
Enameled White Finish
The powder coat enamel is a durable, multi-layered coating that remains easy to clean for the life of the radiator and goes well with most pre-existing color schemes. If the white color doesn't fit your decor, the Model 22 can be painted.
Exceptional Heat Transfer
Buderus packs an incredibly high number of fins into a small radiator package. This increased surface area means more heat from your hydronic system can be transferred to your living space in a shorter period of time.
Specifications
7750103612
General Information
Type
Panel
Product Line
Model 22
Medium MediumMedium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Connection Type
BSP
Material
Steel
Performance
Heating BTU
8139
Heating Capacity
8139 BTU
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
24 Inches
Product Width
48 Inches
Product Depth
4 Inches
Product Weight
90 Pounds
