Broan ZB80
Broan ZB80
Hover to zoom
1 Of 5

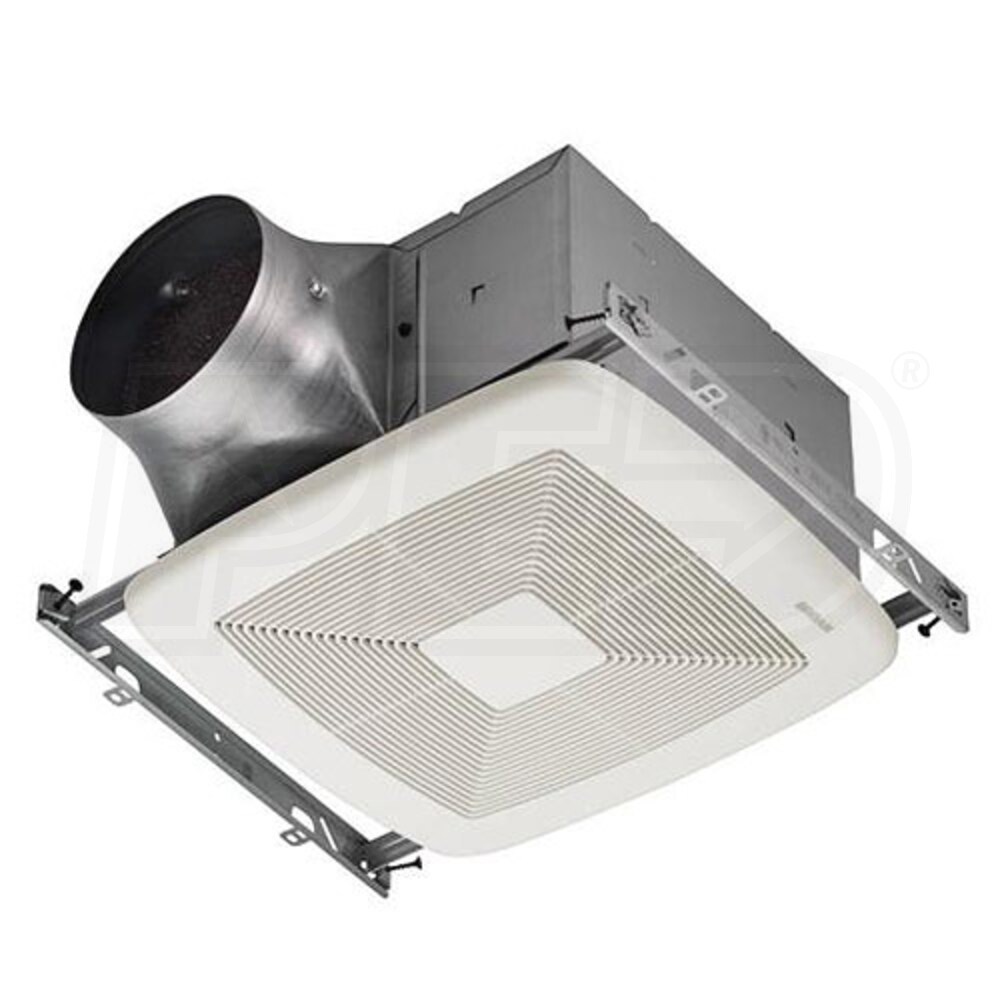

Broan ULTRA GREEN™ - 80 CFM - Multi-Speed High-Efficiency Bathroom Exhaust Fan - Ceiling Mount - 4" or 6" Duct
Model: ZB80
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$145.00
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    As the global leader in residential indoor air quality, Broan designs progressive and innovative products to provide maximum comfort for any household. Broan ULTRA GREEN™ fans are engineered to be quiet, reliable and most of all, efficient. The ZB80 is a multi-speed bathroom exhaust fan that operates below 0.3 sones, making it one of the quietest fans on the market. Ideal for both spot ventilation in humid bathrooms and continuous ventilation applications, the ZB80 is a flexible ventilation solution while remaining incredibly energy-efficient.
  • Energy Efficient
  • Broan's ULTRA GREEN™ series bath fans feature ULTRASMART™ DC motor and control technology. The ZB80 operates almost ten times more efficient than ENERGY STARŪ requirements.
  • Multi-Speed Operation
  • Upon installation, the ZB80's CFM output can be set based on the size of your bathroom. A timer dial can also be set to control how long the fan runs at maximum CFM before automatically returning to its lower continuous ventilation level.
  • Quiet Operation
  • Featuring ULTRASilent™ technology, the ZB80 operates at less than 0.3 sones - the lowest sound rating attainable. The ZB80 is so quiet, you may not even notice it running.
  • Simple Installation
  • With Broan's ULTRAQuick™ technology, the ZB80 features a telescoping mounting frame with pre-installed screws, a snap-in housing, a snap-in blower and inside-out mounting duct connector for the fastest installation possible.
  • Installation Flexibility
  • The ZB80's unique mounting frame can be expanded anywhere from 14" to 24" to fit any type of joist, I-joist or truss construction. Retrofit installations can be done entirely from the room-side without the need for access to the attic.
Specifications
General Information
Type
Bathroom Fan
Product Line
ULTRA GREEN
Mount Type
Ceiling
Includes Light
No
UPC
026715201099
Performance
Maximum Air Flow
80 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.3 Sones
Electrical Data
Voltage
120 Volts
Power Consumption
5.8 Watts
Current Draw
0.3 Amps
Dimensions
Duct Connection
4 Inches
Product Height
7 5/8 Inches
Product Width
13 3/4 Inches
Product Length
13 Inches
Product Weight
12.5 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    As the global leader in residential indoor air quality, Broan designs progressive and innovative products to provide maximum comfort for any household. Broan ULTRA GREEN™ fans are engineered to be quiet, reliable and most of all, efficient. The ZB80 is a multi-speed bathroom exhaust fan that operates below 0.3 sones, making it one of the quietest fans on the market. Ideal for both spot ventilation in humid bathrooms and continuous ventilation applications, the ZB80 is a flexible ventilation solution while remaining incredibly energy-efficient.
  • Energy Efficient
  • Broan's ULTRA GREEN™ series bath fans feature ULTRASMART™ DC motor and control technology. The ZB80 operates almost ten times more efficient than ENERGY STARŪ requirements.
  • Multi-Speed Operation
  • Upon installation, the ZB80's CFM output can be set based on the size of your bathroom. A timer dial can also be set to control how long the fan runs at maximum CFM before automatically returning to its lower continuous ventilation level.
  • Quiet Operation
  • Featuring ULTRASilent™ technology, the ZB80 operates at less than 0.3 sones - the lowest sound rating attainable. The ZB80 is so quiet, you may not even notice it running.
  • Simple Installation
  • With Broan's ULTRAQuick™ technology, the ZB80 features a telescoping mounting frame with pre-installed screws, a snap-in housing, a snap-in blower and inside-out mounting duct connector for the fastest installation possible.
  • Installation Flexibility
  • The ZB80's unique mounting frame can be expanded anywhere from 14" to 24" to fit any type of joist, I-joist or truss construction. Retrofit installations can be done entirely from the room-side without the need for access to the attic.
Specifications
General Information
Type
Bathroom Fan
Product Line
ULTRA GREEN
Mount Type
Ceiling
Includes Light
No
UPC
026715201099
Performance
Maximum Air Flow
80 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.3 Sones
Electrical Data
Voltage
120 Volts
Power Consumption
5.8 Watts
Current Draw
0.3 Amps
Dimensions
Duct Connection
4 Inches
Product Height
7 5/8 Inches
Product Width
13 3/4 Inches
Product Length
13 Inches
Product Weight
12.5 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Type
Bathroom Fan
Product Line
ULTRA GREEN
Mount Type
Ceiling
Includes Light
No
UPC
026715201099
Performance
Maximum Air Flow
80 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.3 Sones
Electrical Data
Voltage
120 Volts
Power Consumption
5.8 Watts
Current Draw
0.3 Amps
Dimensions
Duct Connection
4 Inches
Product Height
7 5/8 Inches
Product Width
13 3/4 Inches
Product Length
13 Inches
Product Weight
12.5 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+
Be the first to ask a question.
