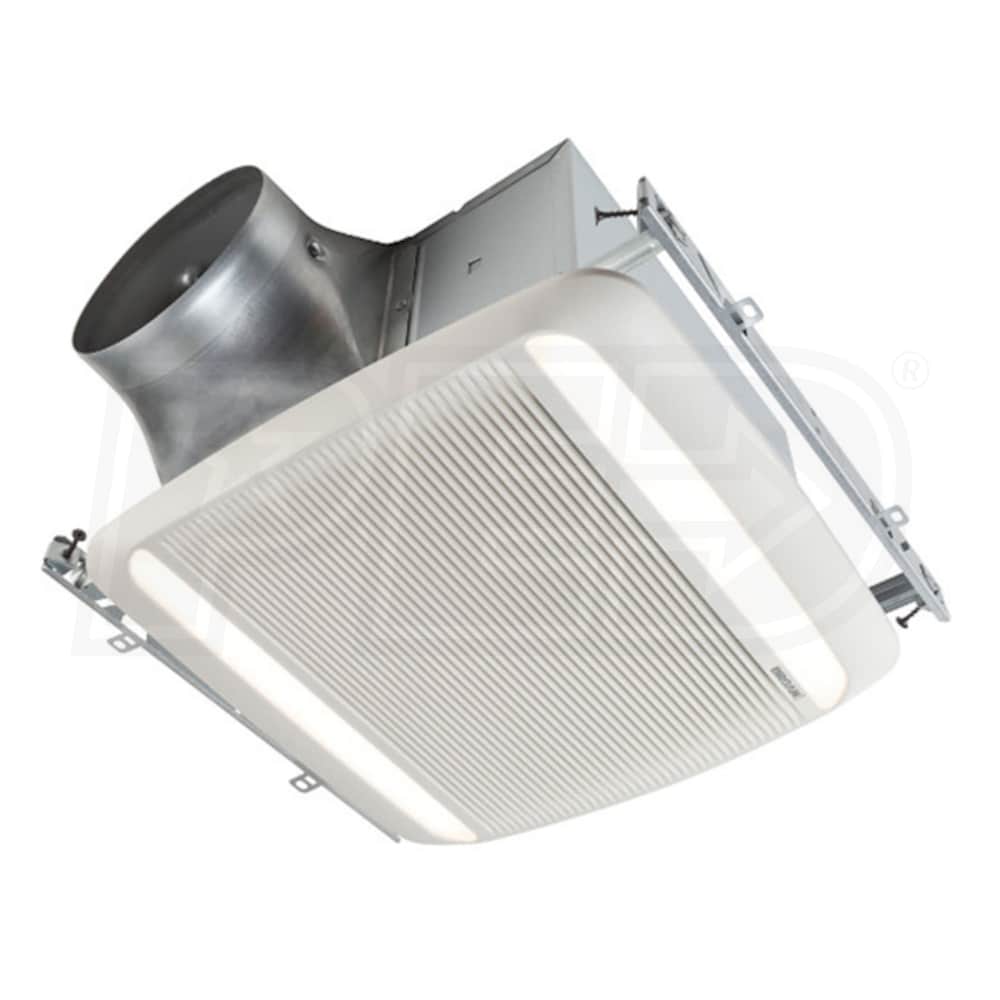

Broan ULTRA GREEN™ - 110 CFM - High-Efficiency Bathroom Exhaust Fan - With LED Lights - 6" Duct
Model: XB110L1
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$209.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    As the global leader in residential indoor air quality, Broan designs progressive and innovative products to provide maximum comfort for any household. Broan ULTRA GREEN™ fans are engineered to be quiet, reliable and most of all, efficient. The XB110L1 is a single-speed bathroom exhaust fan with an LED light that operates below 0.3 sones, making it one of the quietest fans on the market. Ideal for both spot ventilation in humid bathrooms and continuous ventilation applications, the XB110L1 is a flexible ventilation solution while remaining incredibly energy-efficient.
  • Energy Efficient
  • Broan's ULTRA GREEN™ series bath fans feature ULTRASMART™ DC motor and control technology. The XB110L1 operates almost ten times more efficient than ENERGY STARŪ requirements.
  • Quiet Operation
  • Featuring ULTRASilent™ technology, the XB110L1 operates at less than 0.3 sones - the lowest sound rating attainable. The XB110L1 is so quiet, you may not even notice it running.
  • Simple Installation
  • With Broan's ULTRAQuick™ technology, the XB110L1 features a telescoping mounting frame with pre-installed screws, a snap-in housing, a snap-in blower and inside-out mounting duct connector for the fastest installation possible.
  • Installation Flexibility
  • The XB110L1's unique mounting frame can be expanded anywhere from 14" to 24" to fit any type of joist, I-joist or truss construction. Retrofit installations can be done entirely from the room-side without the need for access to the attic.
Specifications
General Information
Type
Bathroom Fan
Product Line
ULTRA GREEN
Mount Type
Ceiling
Includes Light
Yes
UPC
026715252510
Performance
Maximum Air Flow
110 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.3 Sones
Electrical Data
Voltage
120 Volts
Power Consumption
9.3 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.5 Amps
Dimensions
Duct Connection
6 Inches
Product Height
7 5/8 Inches
Product Width
11 3/8 Inches
Product Length
10 1/2 Inches
Product Weight
11.7 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    As the global leader in residential indoor air quality, Broan designs progressive and innovative products to provide maximum comfort for any household. Broan ULTRA GREEN™ fans are engineered to be quiet, reliable and most of all, efficient. The XB110L1 is a single-speed bathroom exhaust fan with an LED light that operates below 0.3 sones, making it one of the quietest fans on the market. Ideal for both spot ventilation in humid bathrooms and continuous ventilation applications, the XB110L1 is a flexible ventilation solution while remaining incredibly energy-efficient.
  • Energy Efficient
  • Broan's ULTRA GREEN™ series bath fans feature ULTRASMART™ DC motor and control technology. The XB110L1 operates almost ten times more efficient than ENERGY STARŪ requirements.
  • Quiet Operation
  • Featuring ULTRASilent™ technology, the XB110L1 operates at less than 0.3 sones - the lowest sound rating attainable. The XB110L1 is so quiet, you may not even notice it running.
  • Simple Installation
  • With Broan's ULTRAQuick™ technology, the XB110L1 features a telescoping mounting frame with pre-installed screws, a snap-in housing, a snap-in blower and inside-out mounting duct connector for the fastest installation possible.
  • Installation Flexibility
  • The XB110L1's unique mounting frame can be expanded anywhere from 14" to 24" to fit any type of joist, I-joist or truss construction. Retrofit installations can be done entirely from the room-side without the need for access to the attic.
Specifications
General Information
Type
Bathroom Fan
Product Line
ULTRA GREEN
Mount Type
Ceiling
Includes Light
Yes
UPC
026715252510
Performance
Maximum Air Flow
110 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.3 Sones
Electrical Data
Voltage
120 Volts
Power Consumption
9.3 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.5 Amps
Dimensions
Duct Connection
6 Inches
Product Height
7 5/8 Inches
Product Width
11 3/8 Inches
Product Length
10 1/2 Inches
Product Weight
11.7 Pounds
Certifications
Energy Star Listed
Yes
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
