Features

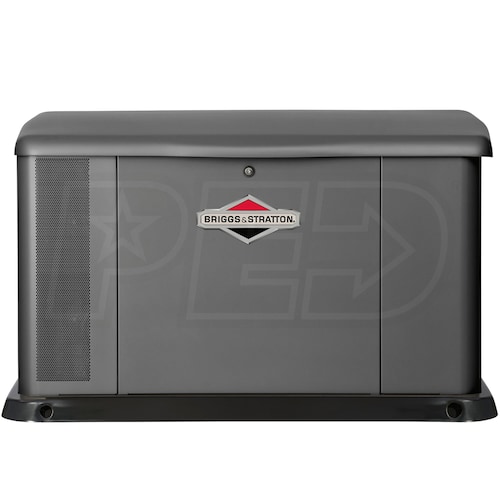

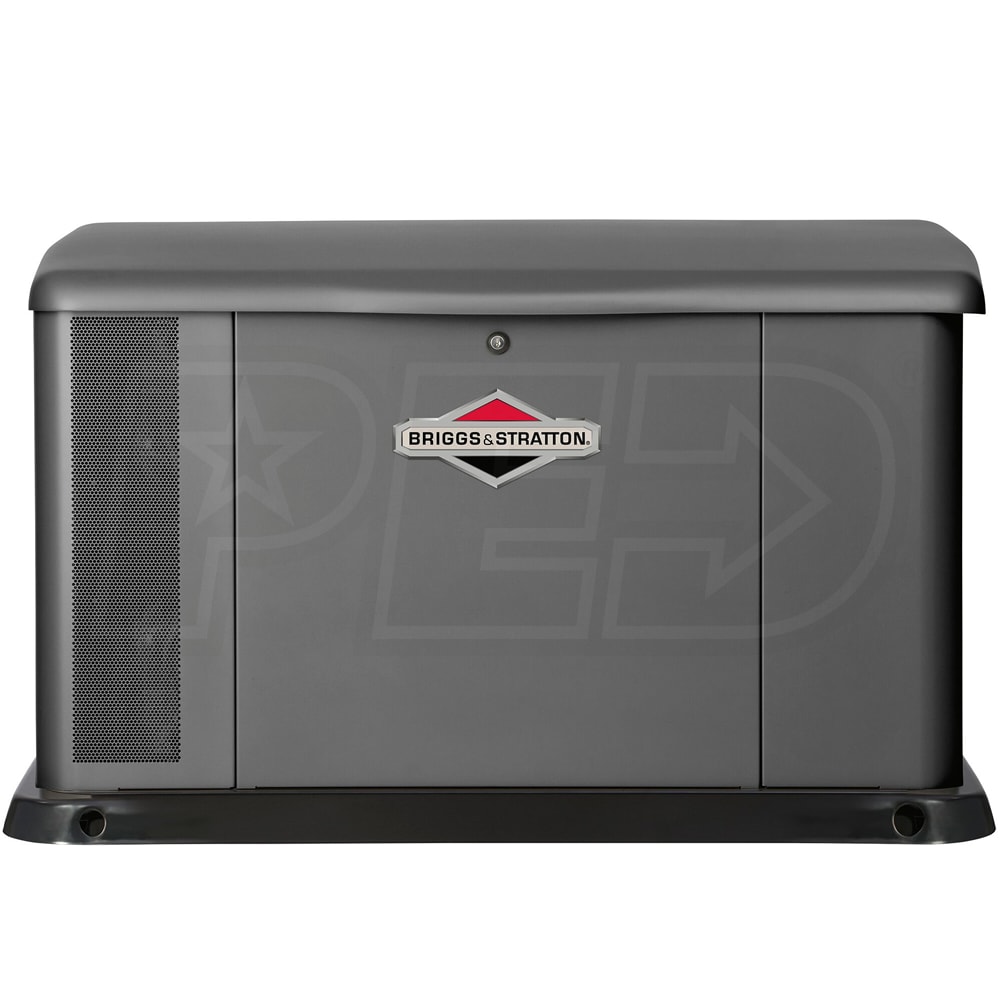

- 20 kW Standby Generator (Requires Auto Transfer Switch)
- Automatically starts when utility power is lost

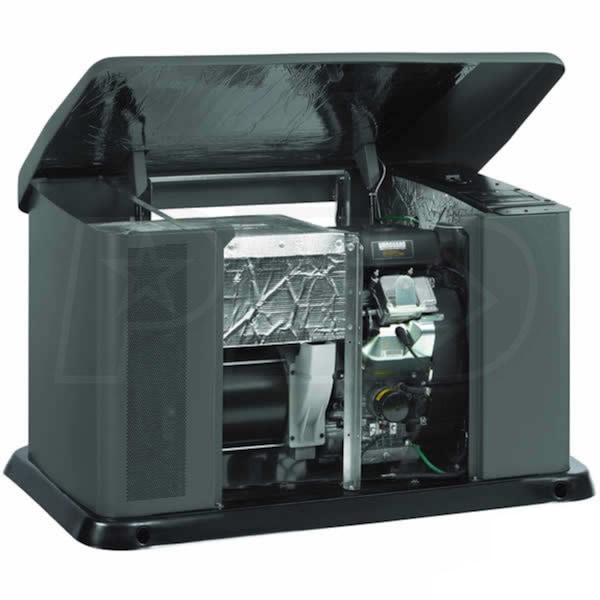

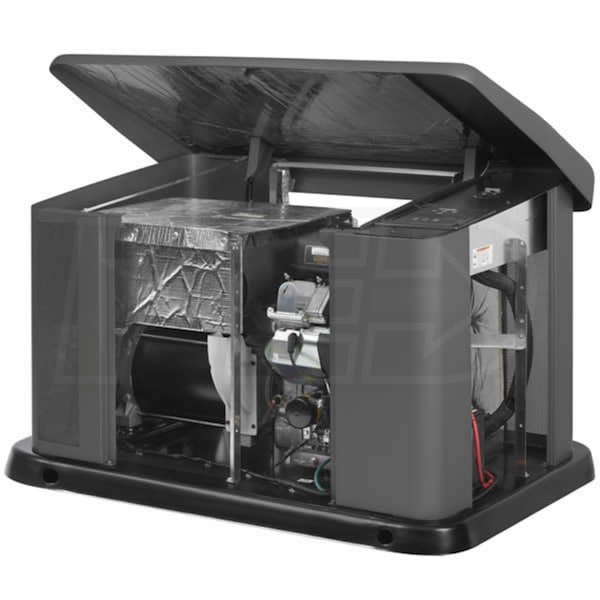

- 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
- Provides years of long lasting, reliable standby power
- Galvanneal Steel Enclosure
- Automotive rust proofing paint process reduces corrosion
- Front Air Ventilation
- Pushes engine exhaust out the front, away from the home
- Computer Friendly :)
- Safe for use with advanced electronics and computers
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18" from structure
- *Symphony® II Power Management (Up To 8 High-Wattage Loads)
- Automatically manages & balances loads while preventing overload
- Uninterrupted, whole house power, with a smaller generator
- Turnkey Extras
- Hour Meter & Automatic Battery Charger (Battery Not Included
- *Req. Briggs & Statton Symphony® II Automatic Transfer Switch
- Industry Leading 5-Year Warranty
- Parts, labor & travel covered for 5-Years
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
40336
Overview
Weight
484 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
32.9 Inches
Product Height
31 Inches
UPC
011675403362
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
NG Fuel Consumption @ 100% Load
260 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
LP Fuel Consumption @ 100% Load
3.75 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
64
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Steel (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Reviews
(4)
Briggs & Stratton 40336 Reviews & Ratings
The Best Generator
By Shipan C.
Lincolnton, North Carolina
Purchased 05/08/2018 |
Review Posted 05/29/2018
My family loves it very much! I think the only thing that needs improvement is the design....
Shipan C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Cons:
Heavy, Expensive
Great Generator
By Charles & Joyce H.
Milam, Texas
Purchased 06/09/2016 |
Review Posted 07/01/2016
We live in a very rural part of Texas which is subject to frequent power outages. In the summer of 2008, we installed a 15KW G.E. (made by B & S) with auto transfer switch. It was struck by lightning on May 27, 2016 while in service. It was a very good generator and had 481 hours of faithful service on it. Because of the reliable service we obtained from that generator, we decided to replace it with a 20KW Briggs and Stratton.
This new unit was easy to install and ready for use right out of the box. After anchoring it to the concrete pad, making all of the connections and turning the propane on, it started immediately. The voltage and frequency were dead on with both no load and full load. It is quieter than the old unit and I really like the remote status Annunciation. We shopped all of the major brands comparing price, reliability and availability of service and parts. A number of our friends have Generac units which we strongly considered but the B & S unit seemed the best value for the money. I would definitely recommend this unit to anyone and most of all, I would buy it again.
This new unit was easy to install and ready for use right out of the box. After anchoring it to the concrete pad, making all of the connections and turning the propane on, it started immediately. The voltage and frequency were dead on with both no load and full load. It is quieter than the old unit and I really like the remote status Annunciation. We shopped all of the major brands comparing price, reliability and availability of service and parts. A number of our friends have Generac units which we strongly considered but the B & S unit seemed the best value for the money. I would definitely recommend this unit to anyone and most of all, I would buy it again.
Charles & Joyce H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Exceeded Expectations, Reliable
Smooth Transaction
By Martin W.
Princess Anne, Maryland
Purchased 08/19/2015 |
Review Posted 10/23/2015
My biggest worry was delivery, but the truck driver was nice and courteous, plus helpful with lowering the gate to my 5x9 trailer, so I could easily cart it near it's resting place. Both electrical and gas installers liked the easy connections, however the electrical inlet hole in the back, wasn't sufficient, but the installer was easily able to correct.
Having the transfer switch installed while building our home, helped make the connection simple. Having access to four strong backs for final positioning, also made it simple. A concrete pad is advisable, and use anchor bolts to secure. Runs well, with the noise level just slightly less of a lawnmower. I'm happy with it and waiting for the next power failure.
A couple of "Powered by Briggs &S tratton" decals would of been nice for labeling the inside of the transfer switch and sub panel.
Having the transfer switch installed while building our home, helped make the connection simple. Having access to four strong backs for final positioning, also made it simple. A concrete pad is advisable, and use anchor bolts to secure. Runs well, with the noise level just slightly less of a lawnmower. I'm happy with it and waiting for the next power failure.
A couple of "Powered by Briggs &S tratton" decals would of been nice for labeling the inside of the transfer switch and sub panel.
Martin W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Replacement Generator
By Anthony P.
Copiague, New York
Purchased 07/22/2013 |
Review Posted 08/27/2013
The original Briggs and Stratton 15KW Generator was destroyed during super storm Sandy when it came time to replace the unit it was without question (based on previous unit) to choose Briggs and Stratton. I searched the web and found Electric Generator Direct to have the best price and FREE shipping with no TAX. The service that I received was better than when I bought the original from Sears. I am very pleased with the product. (but I hope never have to try it) Thank You
Anthony P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Reliable, High Quality, I'd Buy It Again
Cons:
None
