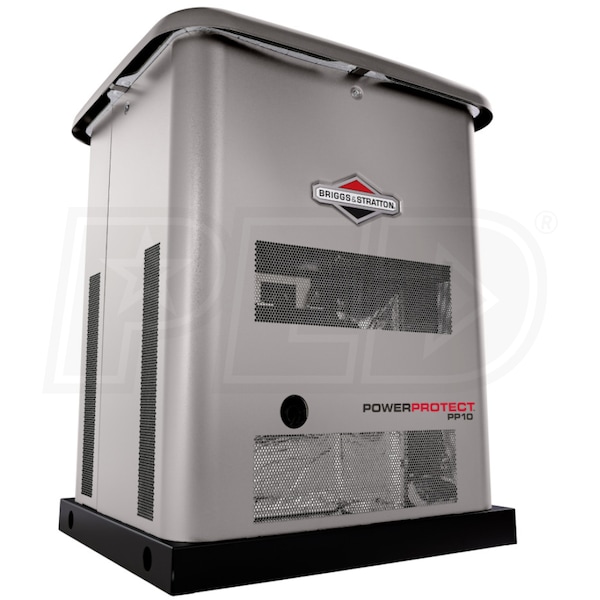

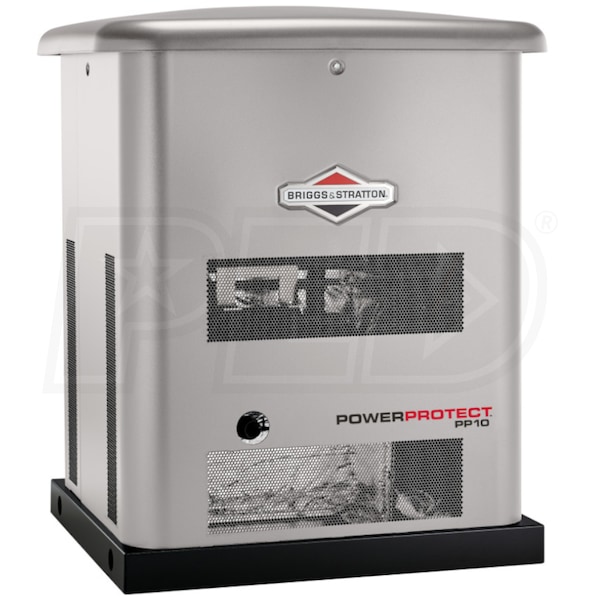

Briggs & Stratton Power Protect™ PP10 - 10kW Steel Standby Generator System (100A 16-Circuit)

Model:

040685

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton Power Protect™ PP10 - 10kW Steel Standby Generator System (100A 16-Circuit)
Briggs & Stratton Power Protect™ PP10 - 10kW Steel Standby Generator System (100A 16-Circuit)
Model: 040685
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 1

Features

Briggs & Stratton Power Protect™ PP10 - 10kW Steel Standby Generator System (100A 16-Circuit)


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 10kW (LP) / 8kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • Industry Leading 6-Year Warranty
  • Parts, labor & travel covered for 6-Years
  • Compact Size
  • 50% Smaller than competitive generators in its class
  • Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power

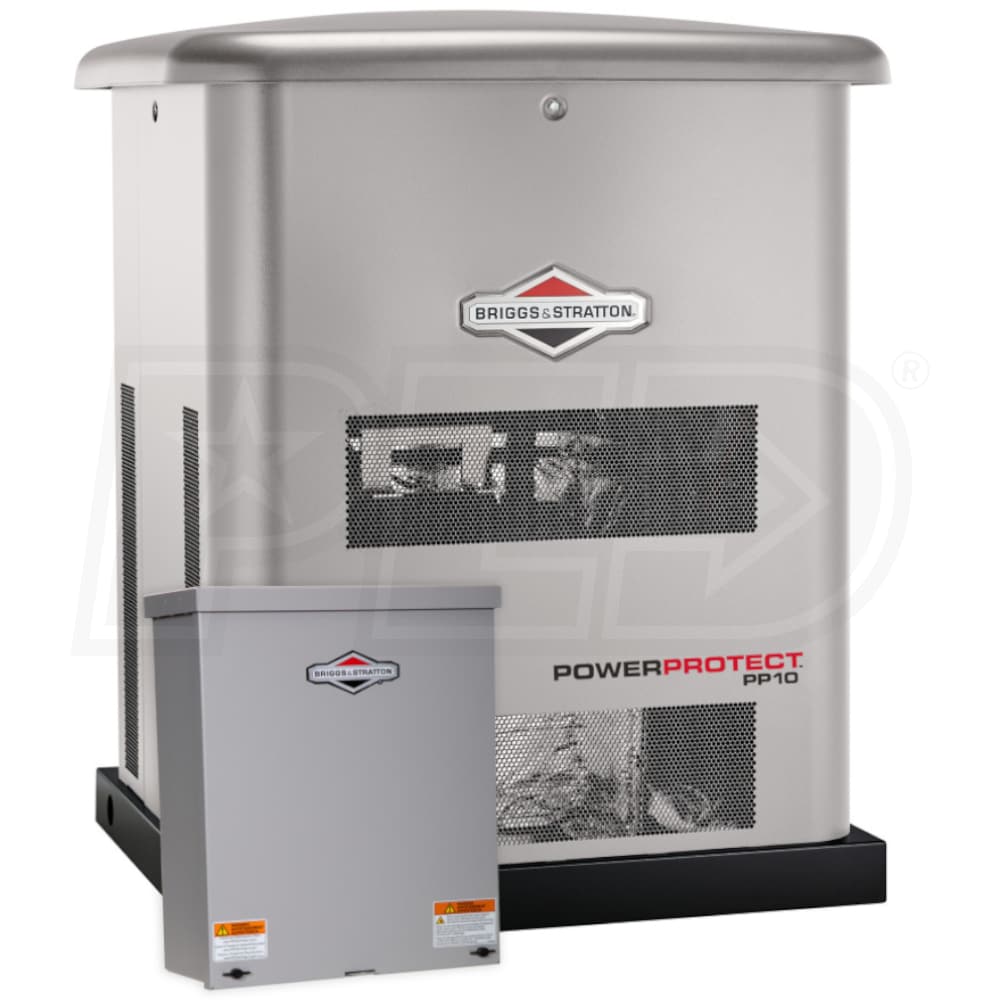

  • 100-Amp Automatic Transfer Switch w/ 16-Circuit LC (071212)
  • Allows for you to select priority circuits
  • Rated at 100-Amps @ 240-Volts (NEMA 3R)
  • ACCM-II Power Control Module Transfer Switch (2 x 3-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits

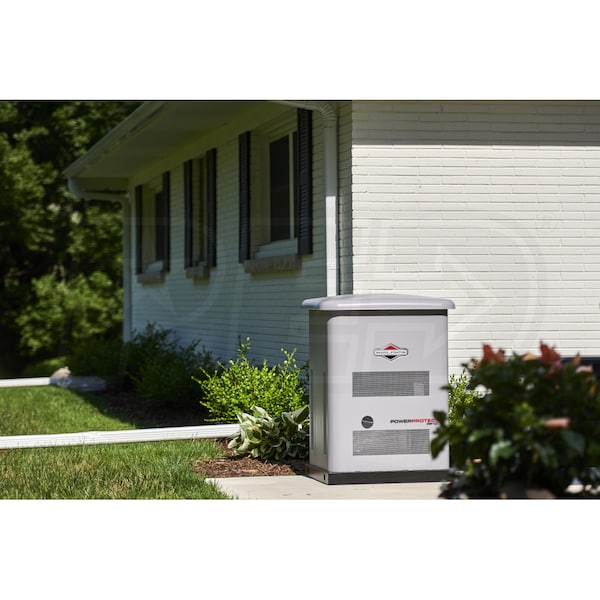

  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18" from structure
  • Front Air Ventilation
  • Pushes engine exhaust out the front, away from the home
  • Galvanneal Steel Enclosure
  • Automotive rust proofing paint process reduces corrosion
  • Includes Schaeffer® Full Synthetic Generator Oil
  • Provides enhanced cold weather protection to -20°F.
  • Includes Battey Charger
  • Requires Starting Battery (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

040685
specs product image PID-115526
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
272 Pounds
CARB Compliant
Made in USA
Yes
Consumer Warranty
6 Years
Product Style
Standby Generator
Product Length
28 Inches
Product Width
24.5 Inches
Product Height
34.8 Inches
UPC
011675406851
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
8000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
111 ft³/hr
NG Fuel Consumption @ 100% Load
169 ft³/hr
LP Fuel Consumption @ 50% Load
1.2 gallons/hr
LP Fuel Consumption @ 100% Load
1.9 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67
Hour Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included (540 CCA)
Enclosure
Steel
Circuit Breaker Size
50 Amps
A/C Ton Rating
2 x 3-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Prime Power
No
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
Consumer Engine Warranty
6 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
