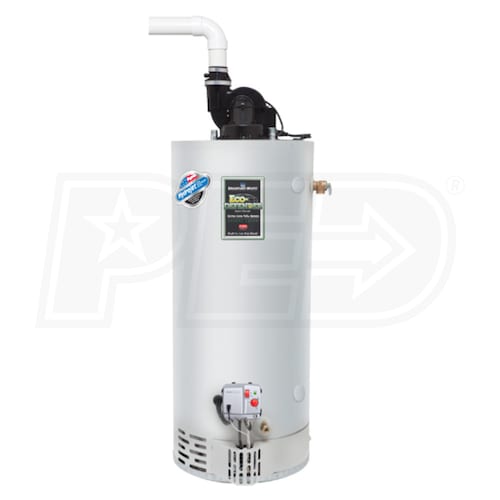

Bradford White - 50 Gal. Storage - 78 Gal. First Hour Delivery - 0.69 UEF - Ultra Low Nox Natural Gas Water Heater - Power Vent - Short
Model:
URG1PV50S6N19
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Powerful Blower Motor
- Featuring the AquaVENT MAX™, the ECO-Defender has one of the quietest blower motor in the industry.
- Venting
- The ECO-Defender is designed for Horizontal and Vertical Venting.
- Bradford White ICON System®
- Providing enhanced performance and advanced temperature control, the internal microprocessor in the ECO-Defender controls burner operation for consistent and accurate water temperature levels.
- Advanced ScreenLok® Technology
- Featuring a flame arrestor design that prevents ignition of flammable vapor outside of the water heater.
- Flammable Vapor Sensor
- The ECO-Defender features an electronic sensor that prevents burner operation in case of ongoing flammable vapors burning inside of the combustion chamber.
- Total Performance System
- Featuring a Hydrojet® Total Performance System that reduces sediment buildup and increases first hour delivery of hot water while minimizing temperature build-up in tank.
- Lining
- Featuring Vitraglas® Lining, the ECO-Defender has superior tank protection from the highly corrosive effects of hot water.
- Insulation System
- Provides a foam insulation that covers the sides and top of the tank, reducing heat loss. This results in less energy consumption and improved efficiencies.
- Anode Rod
- A protective Anode Rod provides added protection against corrosion for years of trouble-free service.
- Temperature and Pressure Relief Valve
- The temperature and pressure relief valve is located on the side of the water heater.
- Warranty
- 6 Year Parts
- 6 Year Tank
Bradford White's Ultra Low NOx water heaters come with the Eco-Defender Safety System which prevents any flames from traveling outside the water heater, protecting your family and your home from fire. The Ultra Low NOx Power Vent Gas water heater features a HydroJet total performance system which reduces sediment buildup in the tank. This water heater emits 75 percent less NOx emissions than other water heaters while maintaining optimal combustion efficiencies and performance.
Product Note
Bradford White manufactures products for installation by qualified professional contractors with applicable state and local licensing. Bradford White Corporation assumes no liability for products installed outside of the installation recommendations in the product's official installation and operation instruction manual. Bradford White only assumes responsibility for verified manufacturing defects as stated in the applicable Bradford White limited warranty for your product.
It is the purchaser's responsibility to purchase products that meet state and local codes for the intended installation site of the Bradford White product.
Specifications
URG1PV50S6N19
General Information
Type
Gas Water Heater
Product Line
ECO-Defender
Product Category
Water Heater - Tank
Delivery Options
Pickup Only
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Storage Type
Tank
Application
Residential
Mount Type
Floor
Maximum Altitude
10100 Feet
UPC
671632168279
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
40000 BTU
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
78 Gallons
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.69
Dimensions
Storage Volume
50 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
56 7/16 Inches
Product Width
22 Inches
Product Depth
22 Inches
Shipping Weight
169 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
Vessel Warranty
6 Years
