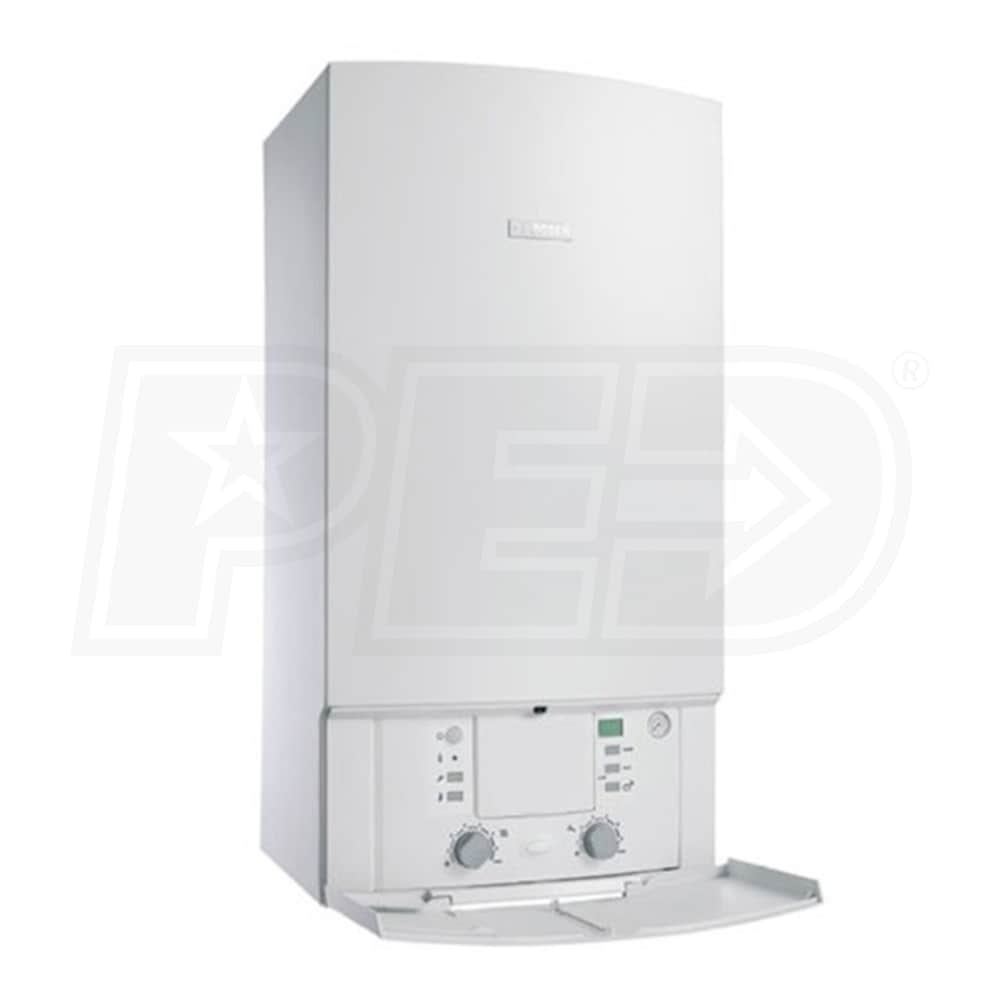

Bosch Greenstar 57 - ZBR16 - 51K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent

Bosch Greenstar 57 - ZBR16 - 51K BTU - 95.0% AFUE - Hot Water Gas Boiler - Direct Vent
Model: ZBR16-3
$2,349.00
Only 1 In-Stock
Ships Monday, Jan 22nd
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Capacity (BTU/h)
Add-Ons

Only 1 In-Stock
Ships Monday, Jan 22nd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 3
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    The Bosch greenstar boiler represents today's best efficiency technologies brought together in a single package. Astounding efficiency ratings can be achieved with the use of Bosch's condensing technology, squeezing every last BTU out of your home's gas supply. An included 3-speed Grundfos pump and a wide variety of pipe venting options allow the boiler to be installed in nearly any home imaginable.

    Product Features

    Condensing Technology Improves Efficiency
    The ZBR16-3 is a condensing boiler, using the leftover energy in the boiler's flue exhaust to further heat your home. Keep your home warmer for less energy cost!

    Fully Modulating Fan
    The boiler includes a fully modulating fan to control the boiler's burning rate, allowing optimum efficiency to be achieved during a wide variety of outdoor conditions.

    Small Size and Low Installation Clearances
    Low installation clearances on all sides, wall mounting configuration, and small footprint translate into a boiler that can be installed almost anywhere.

Specifications
General Information
Product Line
Greenstar
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
6000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
57200 BTU
Minimum Input Capacity
12900 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
50800 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
45000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
0.75 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
33.5 Inches
Product Width
17.4 Inches
Product Depth
13.9 Inches
Product Weight
103.6 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
Limited Lifetime Years
Certifications
Country of Origin
United States
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Features
Features

    The Bosch greenstar boiler represents today's best efficiency technologies brought together in a single package. Astounding efficiency ratings can be achieved with the use of Bosch's condensing technology, squeezing every last BTU out of your home's gas supply. An included 3-speed Grundfos pump and a wide variety of pipe venting options allow the boiler to be installed in nearly any home imaginable.

    Product Features

    Condensing Technology Improves Efficiency
    The ZBR16-3 is a condensing boiler, using the leftover energy in the boiler's flue exhaust to further heat your home. Keep your home warmer for less energy cost!

    Fully Modulating Fan
    The boiler includes a fully modulating fan to control the boiler's burning rate, allowing optimum efficiency to be achieved during a wide variety of outdoor conditions.

    Small Size and Low Installation Clearances
    Low installation clearances on all sides, wall mounting configuration, and small footprint translate into a boiler that can be installed almost anywhere.

Specifications
General Information
Product Line
Greenstar
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
6000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
57200 BTU
Minimum Input Capacity
12900 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
50800 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
45000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
0.75 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
33.5 Inches
Product Width
17.4 Inches
Product Depth
13.9 Inches
Product Weight
103.6 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
Limited Lifetime Years
Certifications
Country of Origin
United States
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Product Specs
+
Specifications
General Information
Product Line
Greenstar
Medium Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Condensing
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
6000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Included
Performance
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
57200 BTU
Minimum Input Capacity
12900 BTU
DOE Heating Capacity Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
50800 BTU
Net I=B=R Capacity I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
45000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Ultra Low NOx Emissions NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
0.75 Inches
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
33.5 Inches
Product Width
17.4 Inches
Product Depth
13.9 Inches
Product Weight
103.6 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
Limited Lifetime Years
Certifications
Country of Origin
United States
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
Reviews
(3)
+
Bosch Thermotechnology ZBR16-3 Reviews & Ratings
Product Q&A
(2)
+
Can this unit be retrofitted to use propane gas?
John McNew
from New Mexico
May 31, 2016
Read Response +
Answer
Yes, it can be retrofitted for LP gas. The boiler includes an LPG conversion kit from the factory.
Hide Response -
What would be the appropriate pressure setting for the relief valve?
Angie
from New York
September 09, 2015
Read Response +
Answer
Per the manufacturer, the safety valve will open if pressure exceeds 30 psi (2.07 bar) at maximum heating water temperature. Please reference page 9 of the Bosch Greenstar Owner's Manual for more details.
Hide Response -
