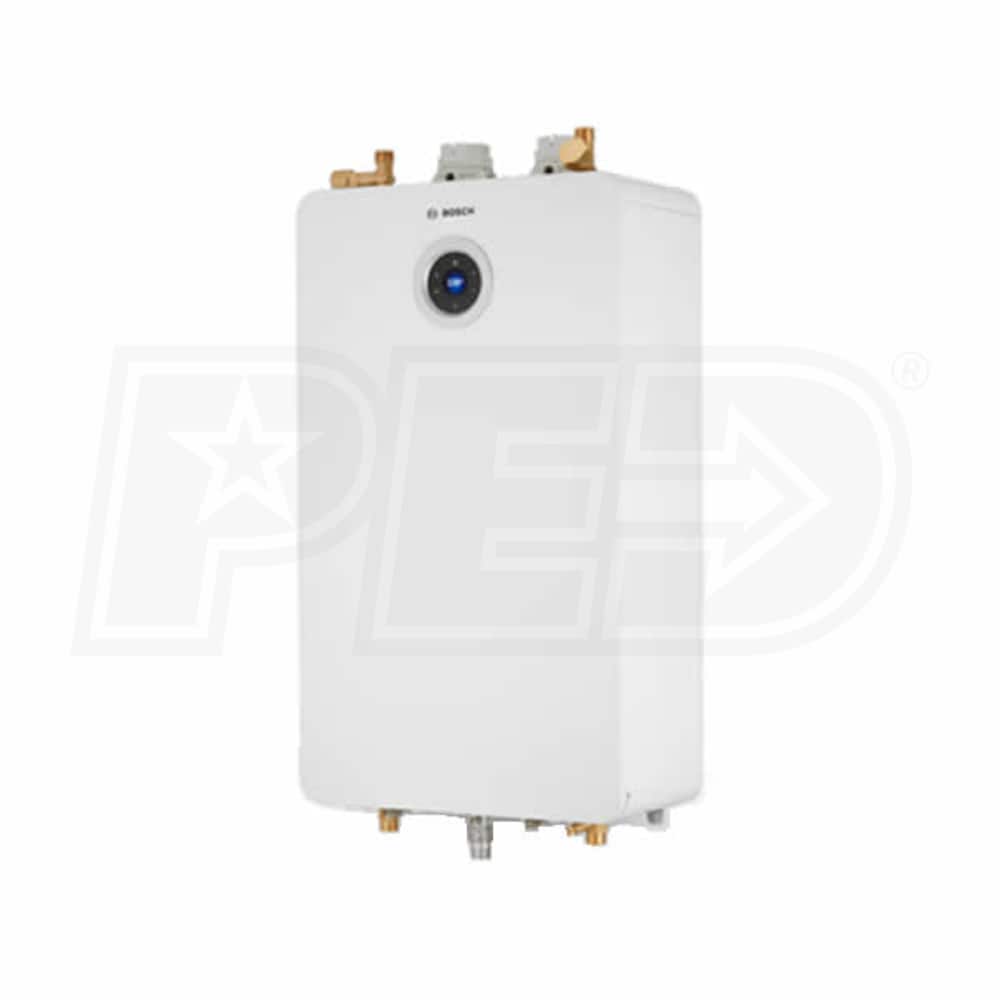

Bosch Greentherm - 5.4 GPM at 60° F Rise - 0.97 UEF - Gas Tankless Water Heater - Direct Vent
Model: T9800 SE 160
+
Share This Product
-
Product Description
-
3Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Fuel
Location
Indoor
# of Showers
UEF
Fuel
Natural Gas
Location
Indoor
#of Showers
2.6
Uniform Energy Factor
0.97
Energy Star Rated
Yes
Features
Features
- Optiflow Mangement Technology
- This water heater features Bosch's Optiflow system, which uses self-calibrating sensors to automatically configure flue length, gas type, and altitude without a gas analyzer.
- Easy to Install
- Bosch Greentherm water heaters come with a flexbile and compact plug n' play design, top hyrdaulic connections, and bottom flush ports making them perfect to replace old tank-type heaters.
- Built-In Digital Control Panel
- The Greentherm tankless hot water heaters have a digital control panel on the front of your unit to adjust temperature and to make sure your system is running properly.
- Active Bypass
- The Greentherm models all come with an automated, fully modulating bypass for temperature stability to ensure you have a constant accurate temperature.
- Convenient Gas Hook Up
- The ability to use an existing 1/2" gas line makes the Greentherm an ideal option for storage tank retrofits.
- Optional Wi-Fi Control
- Control your water heater with the push of a button using Bosch's Wi-Fi app, available in the Apple Store and Google Play.
Bosch's Greentherm tankless water heaters provide whole home hot water while featuring some the best efficiency ratings on the market. Greentherm water heaters boast an impressive .99 Uniform Energy Factor, which allows them to meet your hot water needs while not draining your wallet. The 9000 series features Bosch's plug n' play design making installation a breeze when paired with its multiple venting options. Optional Wi-Fi connectivity gives you complete control of your hot water at your fingertips.
Product Note
Optional Wi-Fi controls require the Bosch 7736504944 Wi-Fi Module, a working internet connection, and appropriate Bosch app which can be found on the Apple Store and Google Play.
Specifications
General Information
Type
Tankless Water Heater
Product Line
Greentherm
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Mount Type
Wall
Installation Location
Indoor
Includes Pump
No
Gas Conversion Kit
Included
UPC
052575110431
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
9000 BTU
Flow Rate at 40F Temperature Rise
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
8.0 GPM
Flow Rate at 50F Temperature Rise
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.4 GPM
Flow Rate at 60F Temperature Rise
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.4 GPM
Flow Rate at 70F Temperature Rise
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.6 GPM
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.97
Minimum Flow Rate
0.45 GPM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
31 1/2 Inches
Product Width
18 29/48 Inches
Product Depth
9 41/48 Inches
Product Weight
73.2 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
UPC Listed
Yes
AHRI Reference Number
9963061
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
Fuel
Location
Indoor
# of Showers
UEF
Fuel
Natural Gas
Location
Indoor
#of Showers
2.6
Uniform Energy Factor
0.97
Energy Star Rated
Yes
Features
Features
- Optiflow Mangement Technology
- This water heater features Bosch's Optiflow system, which uses self-calibrating sensors to automatically configure flue length, gas type, and altitude without a gas analyzer.
- Easy to Install
- Bosch Greentherm water heaters come with a flexbile and compact plug n' play design, top hyrdaulic connections, and bottom flush ports making them perfect to replace old tank-type heaters.
- Built-In Digital Control Panel
- The Greentherm tankless hot water heaters have a digital control panel on the front of your unit to adjust temperature and to make sure your system is running properly.
- Active Bypass
- The Greentherm models all come with an automated, fully modulating bypass for temperature stability to ensure you have a constant accurate temperature.
- Convenient Gas Hook Up
- The ability to use an existing 1/2" gas line makes the Greentherm an ideal option for storage tank retrofits.
- Optional Wi-Fi Control
- Control your water heater with the push of a button using Bosch's Wi-Fi app, available in the Apple Store and Google Play.
Bosch's Greentherm tankless water heaters provide whole home hot water while featuring some the best efficiency ratings on the market. Greentherm water heaters boast an impressive .99 Uniform Energy Factor, which allows them to meet your hot water needs while not draining your wallet. The 9000 series features Bosch's plug n' play design making installation a breeze when paired with its multiple venting options. Optional Wi-Fi connectivity gives you complete control of your hot water at your fingertips.
Product Note
Optional Wi-Fi controls require the Bosch 7736504944 Wi-Fi Module, a working internet connection, and appropriate Bosch app which can be found on the Apple Store and Google Play.
Specifications
General Information
Type
Tankless Water Heater
Product Line
Greentherm
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Mount Type
Wall
Installation Location
Indoor
Includes Pump
No
Gas Conversion Kit
Included
UPC
052575110431
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
9000 BTU
Flow Rate at 40F Temperature Rise
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
8.0 GPM
Flow Rate at 50F Temperature Rise
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.4 GPM
Flow Rate at 60F Temperature Rise
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.4 GPM
Flow Rate at 70F Temperature Rise
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.6 GPM
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.97
Minimum Flow Rate
0.45 GPM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
31 1/2 Inches
Product Width
18 29/48 Inches
Product Depth
9 41/48 Inches
Product Weight
73.2 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
UPC Listed
Yes
AHRI Reference Number
9963061
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
Product Specs
+−
Specifications
General Information
Type
Tankless Water Heater
Product Line
Greentherm
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Mount Type
Wall
Installation Location
Indoor
Includes Pump
No
Gas Conversion Kit
Included
UPC
052575110431
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Minimum Input Capacity
9000 BTU
Flow Rate at 40F Temperature Rise
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
8.0 GPM
Flow Rate at 50F Temperature Rise
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.4 GPM
Flow Rate at 60F Temperature Rise
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.4 GPM
Flow Rate at 70F Temperature Rise
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
4.6 GPM
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.97
Minimum Flow Rate
0.45 GPM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
31 1/2 Inches
Product Width
18 29/48 Inches
Product Depth
9 41/48 Inches
Product Weight
73.2 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
UPC Listed
Yes
AHRI Reference Number
9963061
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
