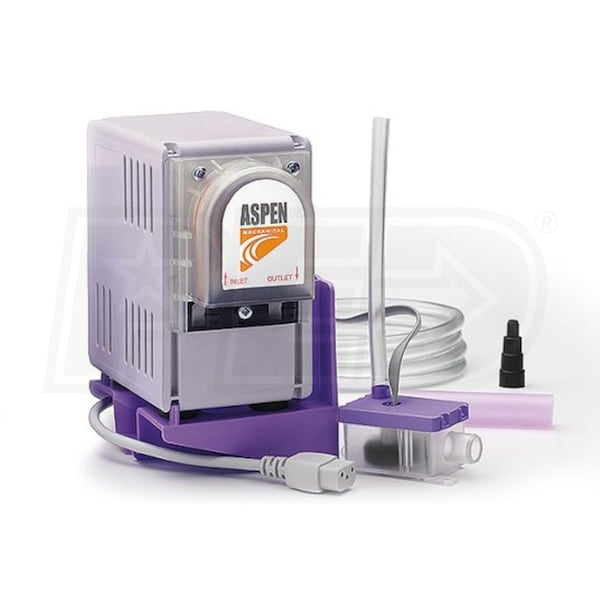

Aspen Universal - Peristaltic Mini Split Condensate Pump - 230V - Up to 29,000 BTU/hr

Model:

ASP-PERIUNI-230

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Aspen Universal - Peristaltic Mini Split Condensate Pump - 230V - Up to 29,000 BTU/hr
Aspen Universal - Peristaltic Mini Split Condensate Pump - 230V - Up to 29,000 BTU/hr
Model: ASP-PERIUNI-230
Was $249.00
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option. If you're using a high wall system, ducted or free-standing units, you may need a universal alternative to expel water that has been removed by the cooling system. Aspen's ASP-PERUNI-230 Mini Universal Condensate Pump is a continuous pressure, air temperature-operated pump, designed to remove contaminated water and allow for remote installation. ASP-PERUNI-230 is perfect for applications where consistent climate control is key.
  • Designed for Versatile Installation
  • Aspen Peristaltic Mini Split Condensate Pumps like the ASP-PERIUNI-230 are designed to be the perfect, universal fit for a multitude of applications.
  • Performance that Packs a Punch
  • The ASP-PERIUNI-230 has a max flow rate of 1.8 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
  • Plug & Play
  • The ASP-PERIUNI-230 is a no hassle, low maintenance unit that's ready to go right out of the box. Just hook up the pump and you're set.
  • Remote Installation
  • The PERUNI line of Aspen Mini Split Condensate Pumps allows for remote installation of more than 20ft away from the condensing application without any performance loss.
  • Dual Temperature Sensors
  • Two separate air temperature sensors control a peristaltic rotary movement that creates nonstop pressure which allows for remote installation of more than 20ft away from the condensing application without any performance loss.
  • Product Includes
  • (1) 3m (Optional 8m) Plug & Play Power/Sensor Cable
  • (1) Wall Mounted Bracket
  • (1) Fixing kit
  • (1) Install manual
  • Product Note
    The Aspen ASP-PERIUNI-230 is suitable for use with ducted, floor standing and high wall mounted mini split systems. The ASP-PERIUNI-230 is designed for installation separate from the mini split unit and in applications where consistent climate control is key.

Specifications

ASP-PERIUNI-230
General Information
Type
Condensate Pump
Product Line
Universal
Application
High Suction
UPC
021449839662
Performance
Maximum Input Capacity Learn More
29000 BTU
Suction Lift
9.84 Feet
Maximum Head
39.37 Feet
Maximum Sound Level Learn More
47 dB
Condensate Removal Rate
1.8 GPH
Electrical Data
Current Draw
0.2 Amps
Dimensions
Product Height
4 25/48 Inches
Product Width
5 5/16 Inches
Product Depth
3 1/48 Inches
Product Weight
2.98 Pounds
Certifications
Country of Origin
UK
CSA Listed
Yes
Warranty Information
Warranty Learn More
1 Year
