Aspen Mini Lime - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Model:
ASP-MLF-UNI
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
2
Model: WS-1
$75.00
In-Stock
$37.48
In-Stock
Features

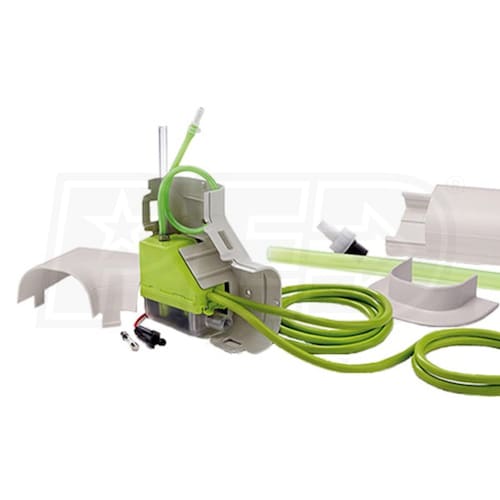

Aspen Mini Lime - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Versatile Installation
- The Aspen Mini Lime pump can be installed on the left or right side, making it one of the more versatile pumps on the market.
- Easy Access for Filter Cleaning
- Aspen's engineers designed this pump to be easily accessed for routine maintenance.
A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option. If you're using a high wall system, ducted or free-standing units, you may need an alternative way to expel water that has been removed by the cooling system. Aspen's ASP-MLF-UNI Mini Lime Condensate Pump is the "total system approach" pump that's the quietest in its class, designed for great performance. Aspen's ASP-MLF-UNI is perfect for offices, meeting rooms, and commercial uses where silence is important.
Product Note
The Aspen ASP-MLF-UNI is suitable for use with large commercial high wall mini split systems. The ASP-MLF-UNI is designed to sit in a trunking elbow to the left or right of your evaporator unit and is ideal for applications where silence is key.
Specifications
ASP-MLF-UNI

Overview
Product Category
Mini Split Accessories
UPC
021449838597
General Information
Type
Condensate Pump
Product Line
Mini Lime
Product Category
Mini Split Accessories
Application
In-Conduit
Trim Color
White
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
54600 BTU
Maximum Head
33 Feet
Maximum Fluid Temperature
104 F
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
21 dB
Condensate Removal Rate
3 GPH
Electrical Data
Power Consumption
16 Watts
Current Draw
0.16 Amps
Dimensions
Product Height
4 1/2 Inches
Product Width
1 35/48 Inches
Product Depth
3 36/40 Inches
Product Weight
0.68 Pounds
Power Cord Length
0.5 Feet
Certifications
Country of Origin
UK
CSA Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
