Aspen Mini Lime - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr



Write A Review
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Wednesday, Sep 27th
Shipping to60601
synchrony card logo
$61 / Month
Suggested monthly payments with 6 month financing.
Aspen Mini Lime - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Aspen Mini Lime - Mini Split Condensate Pump Kit - Universal Voltage - Up to 54,000 BTU/hr
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option and more power is needed. If you're using high wall split systems, you may need an alternative way to expel water that has been removed by the cooling system. Aspen's ASP-ML-UNI Mini Lime Condensate Pump is a compact and discrete pump, designed for great performance easy install and maintenance. Aspen's ASP-ML-UNI is perfect for commercial use in offices and restaurants and applications where easy access for future service is key.
  • Designed for Versatile Installation
  • Aspen Mini Split Condensate Pump Kits like the ASP-ML-UNI are designed to easily mount within a dedicated trunking system and focus on reliability with an anti-siphon device to keep air from seeping into your pump and causing priming issues.
  • Performance that Packs a Punch
  • The ASP-ML-UNI has a max flow rate of 3 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
  • Universal Voltage
  • The Aspen ASP-ML-UNI Mini Lime is compatible with all voltages allowing for an easy integration into your existing components.
  • Variety of Trunking Options
  • Aspen Mini Lime Mini Split Condensate Pump Kit like the ASP-ML-UNI sit comfortably in a trunking elbow and are available with a wide range of trunking accessories for aesthetically-pleasing covers that provide a protected conduit for condensate lines.

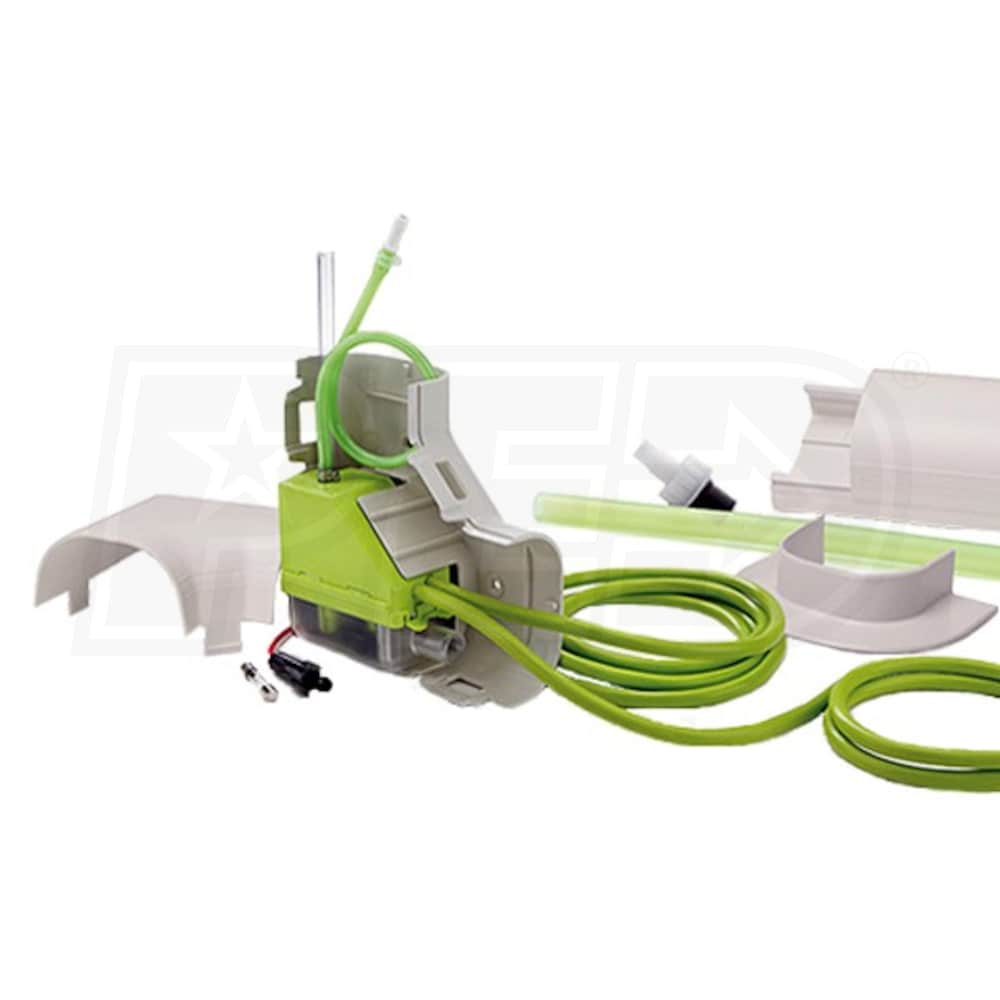

  • Product Includes
  • (1) 300mm Discharge Tube 6mm ID
  • (1) 1.5m Hard Wired Power Cable
  • (1) 220 Lime Green Inlet Hose 14mm ID
  • (1) 150mm Vinyl breather tube 6mm ID
  • (1) Anti siphon device
  • (1) Elbow Front and Back
  • (1) 800mm Conduit Front and Back
  • (1) Internal Conduit Sleeve
  • (1) Gasket
  • (1) Ceiling Plate
  • (1) Drain connector kit
  • (1) Fixing kit
  • (1) Install manual
  • Product Note
    The Aspen ASP-ML-UNI is suitable for use with large commercial high wall mini split systems. The ASP-ML-UNI is designed to sit in a trunking elbow to the left or right of your evaporator unit and is ideal for applications where easy access for future maintenance is key.


specs product image PID-31129
General Information
Condensate Pump
Product Line
Mini Lime
Trim Color
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
54000 BTU
Maximum Head
32.81 Feet
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
23 dB
Condensate Removal Rate
Electrical Data
Current Draw
0.1 Amps
Product Height
4 1/2 Inches
Product Width
1 35/48 Inches
Product Depth
3 36/40 Inches
Product Weight
0.68 Pounds
Country of Origin
CSA Listed
Warranty Information
Warranty Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
